Overview
Engine
Make: Weichai Euro 2 Turbo charged Intercooled
Model Configuration: WP 10.340 E32
Max Power – Kw @ r/min: 250/2200
Max Torque – N.m @ r/min: 1350/1200~1600
HP: 340
Cylinder: 6 Inline
Water Cooled: Yes
Direct Injection: Yes
Engine Driven P.T.O: Yes
Displacement (I): 9,726
Compression Ratio: 17:01
Transmission
Make/Model: 12JS200T+QH50
No Gears: 12
Synchromesh or Constant Mesh: Synchromesh
Transfer Box: N/A
P.T.O: Yes
Brakes
Service: Dual circuit air brakes
Emergency / Parking: Spring potential brake
Auxiliary: ABS & EVB
Warranty
New Vehicle: 3 years/300 000km (South Africa only)

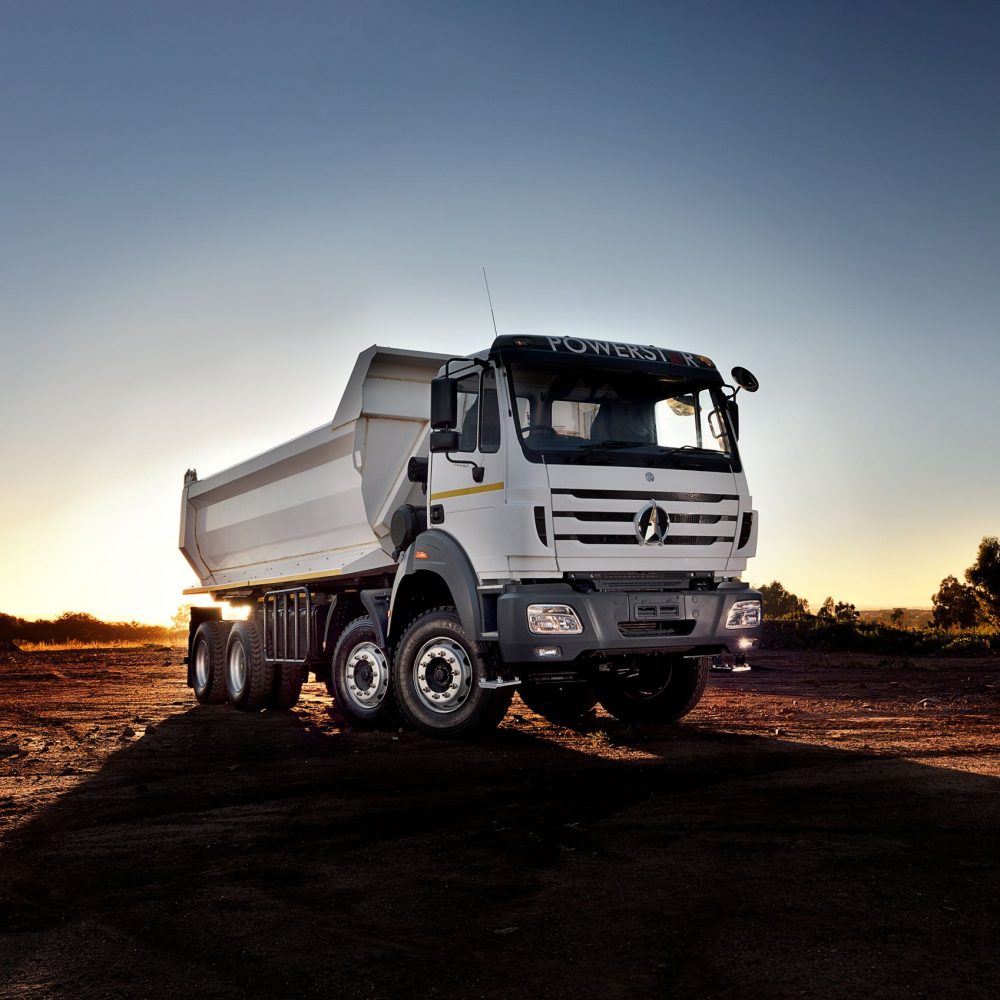

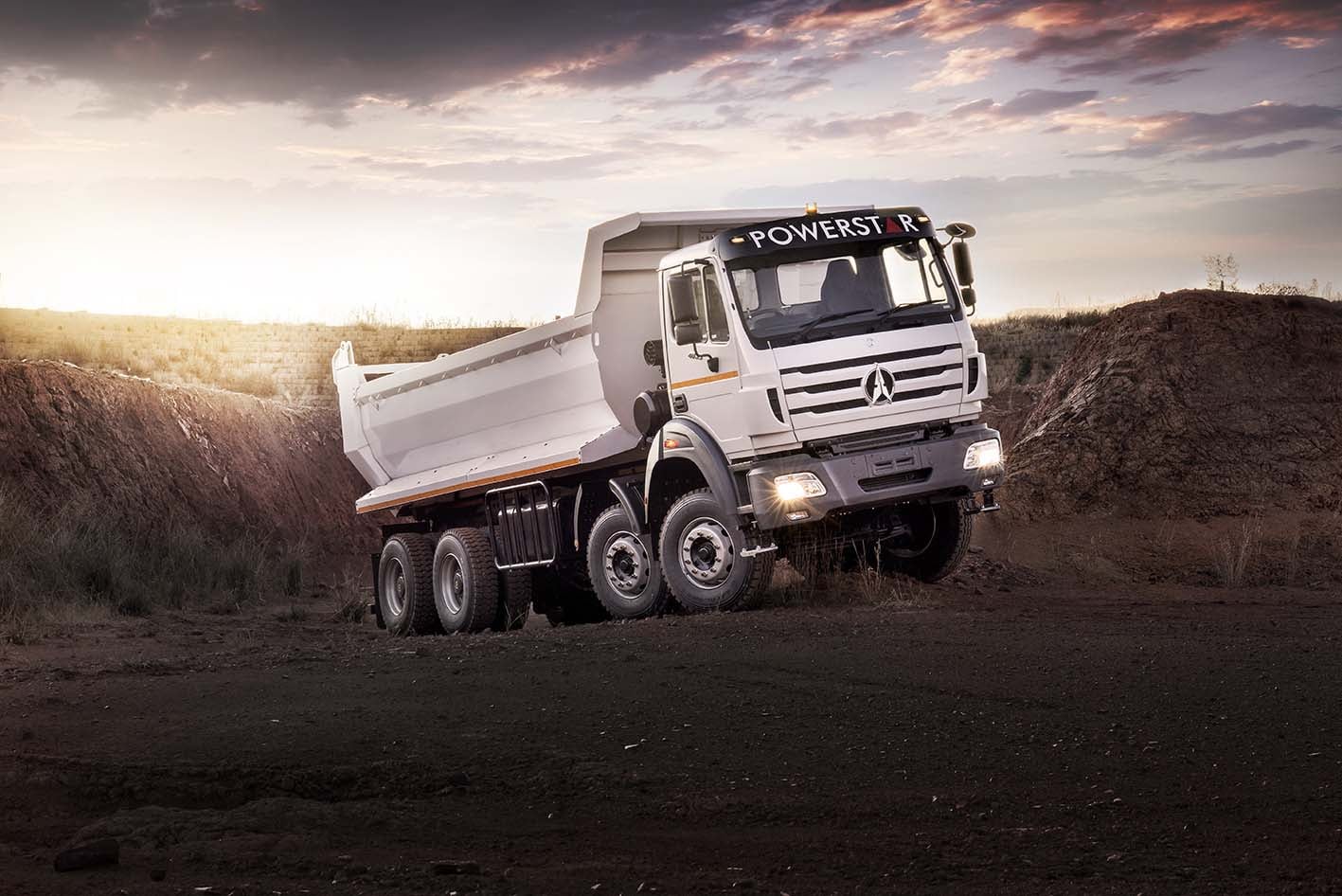

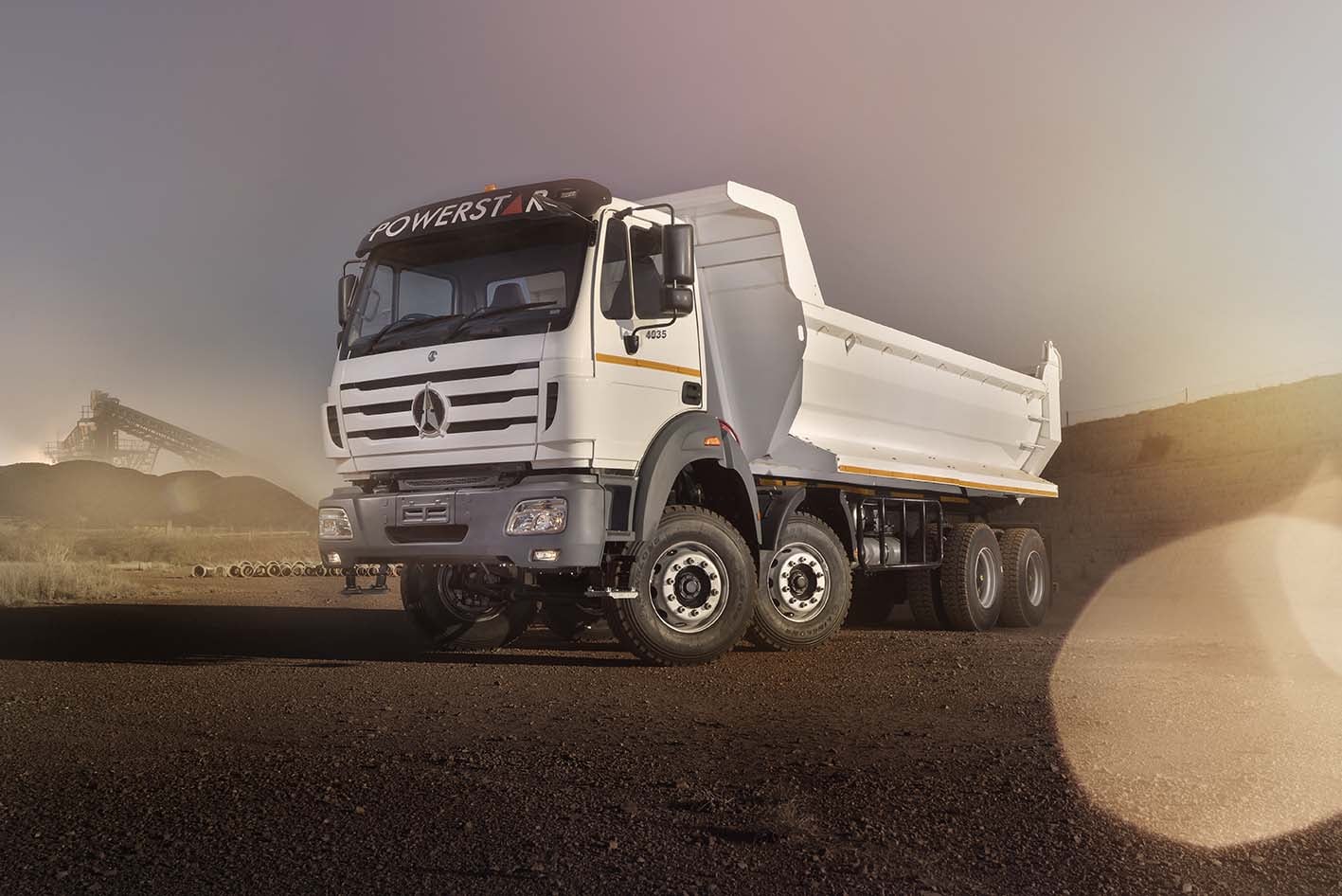

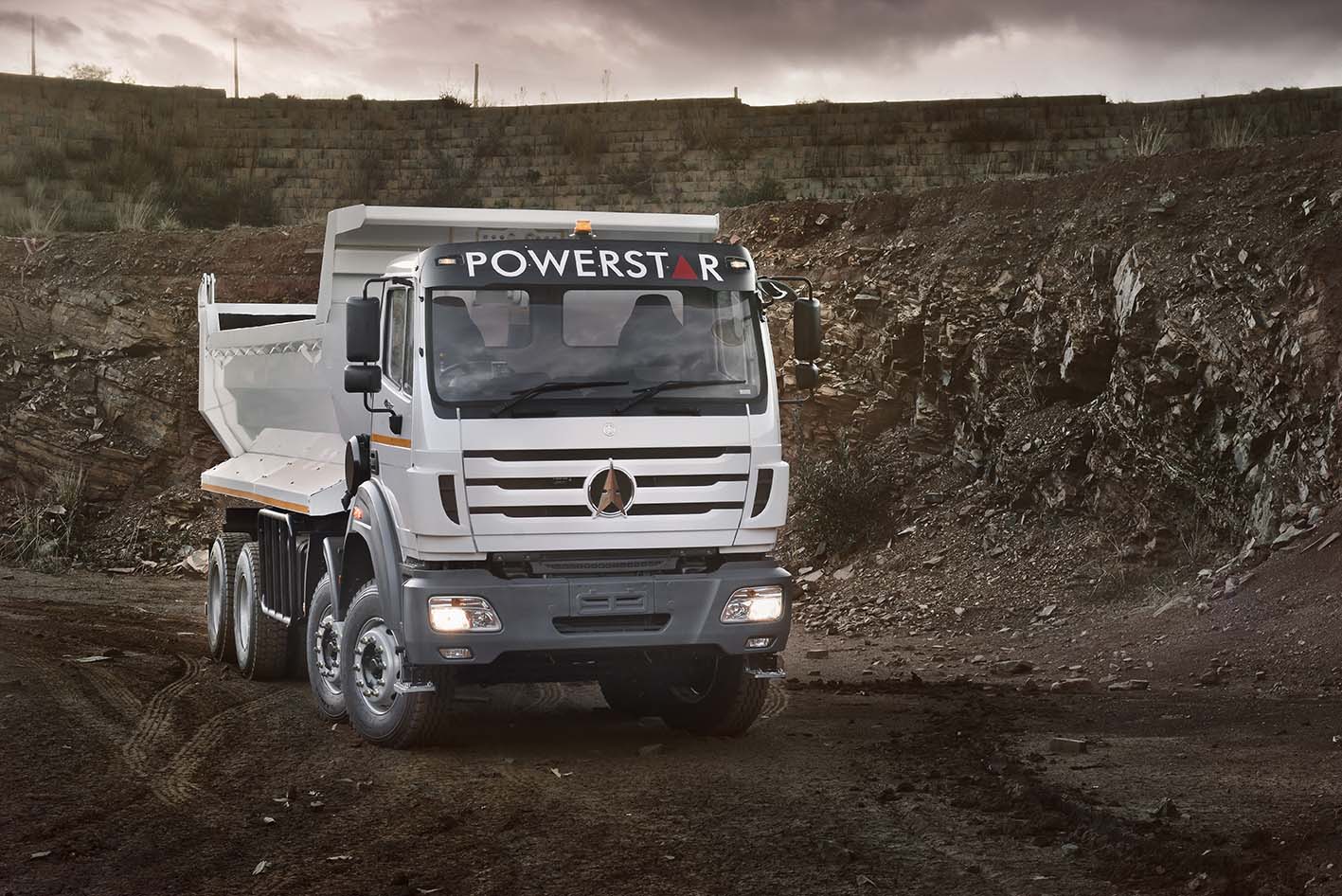

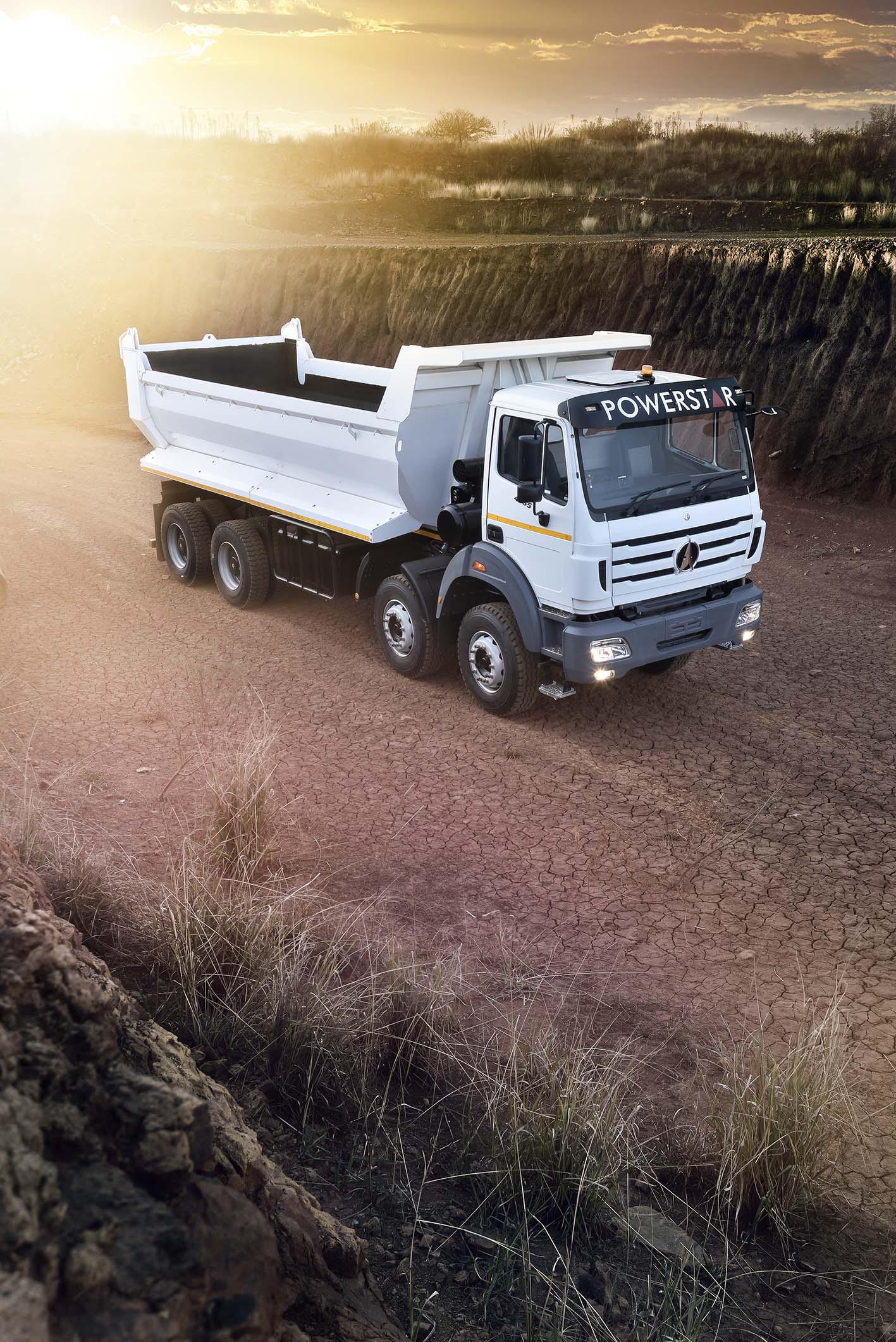

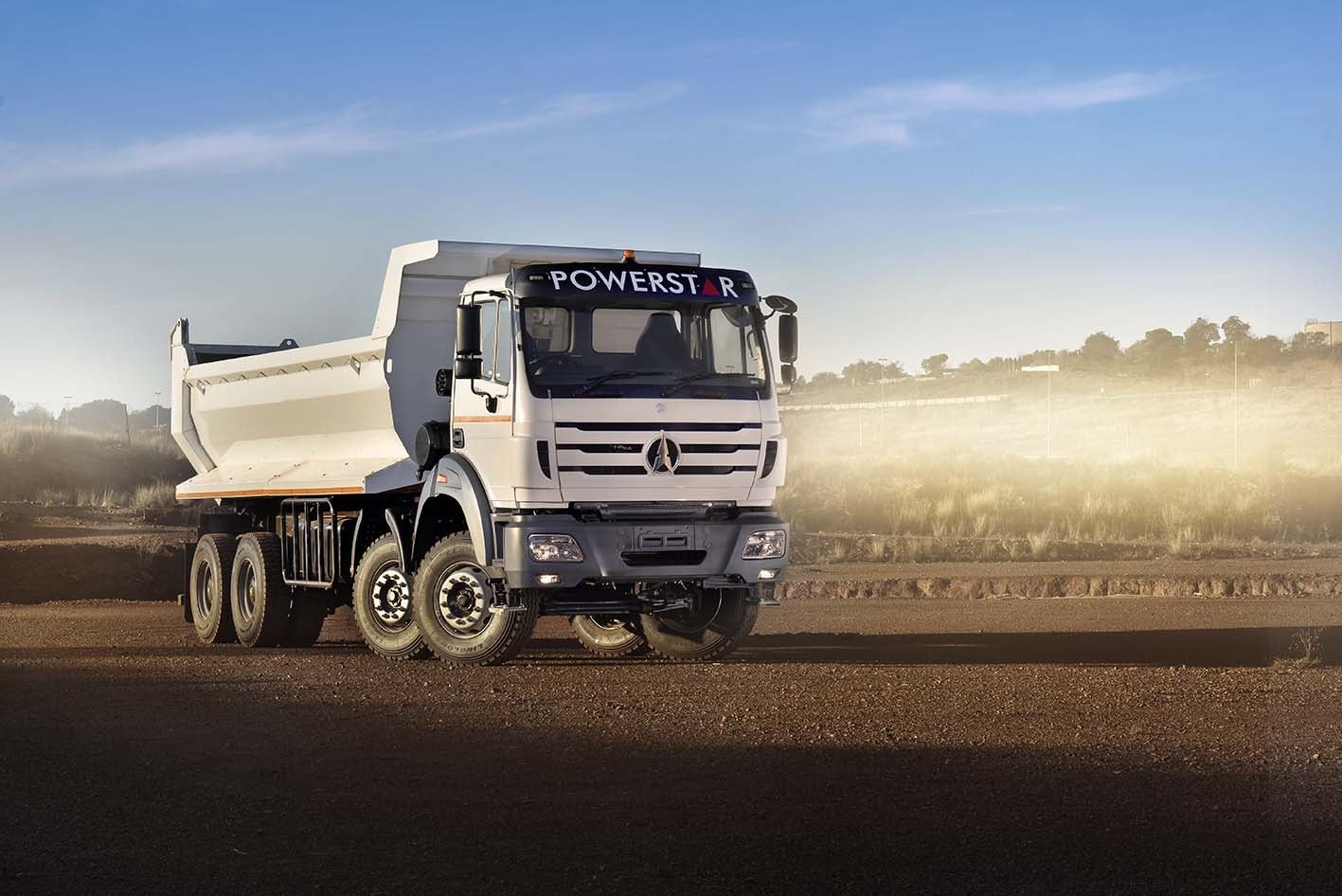

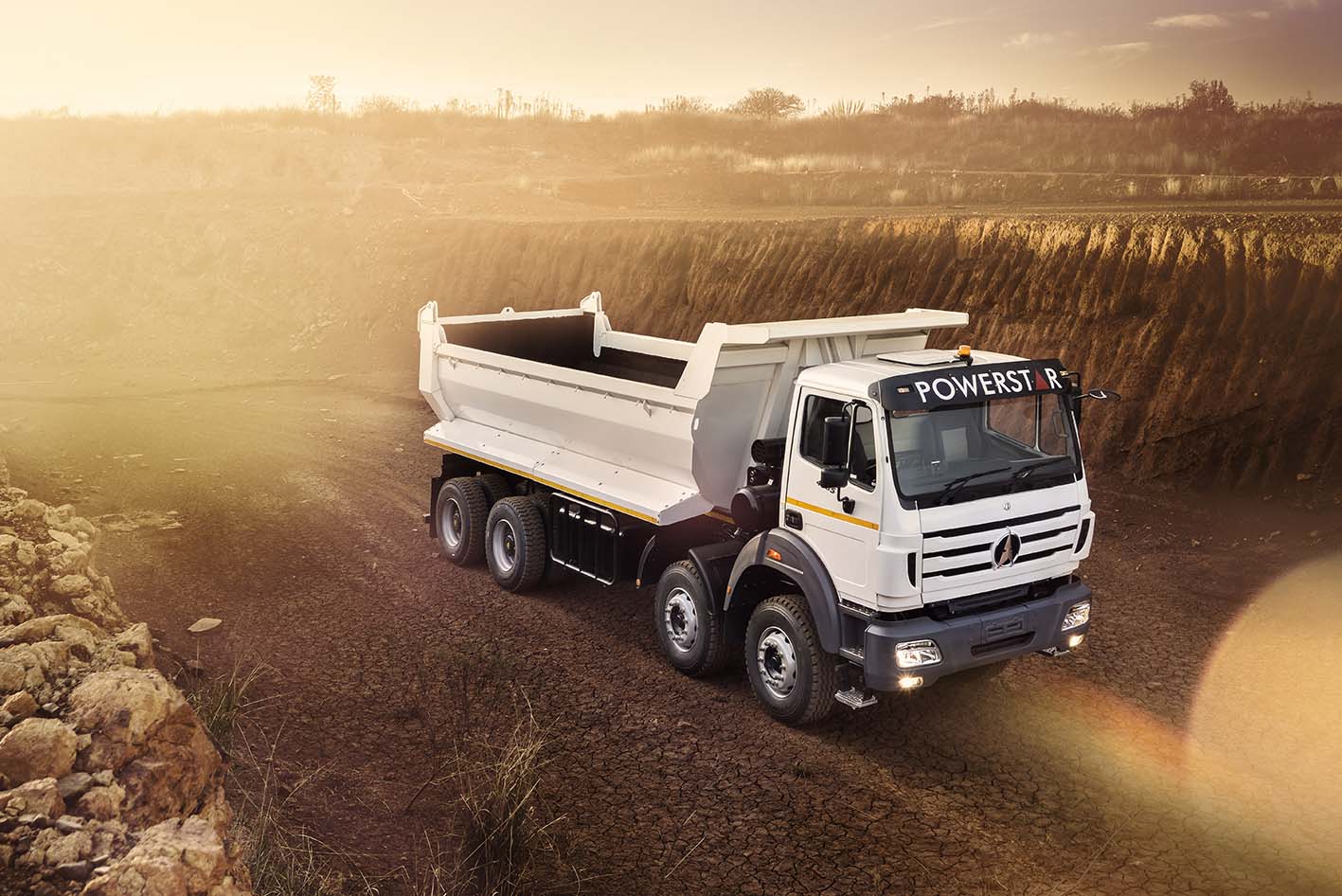

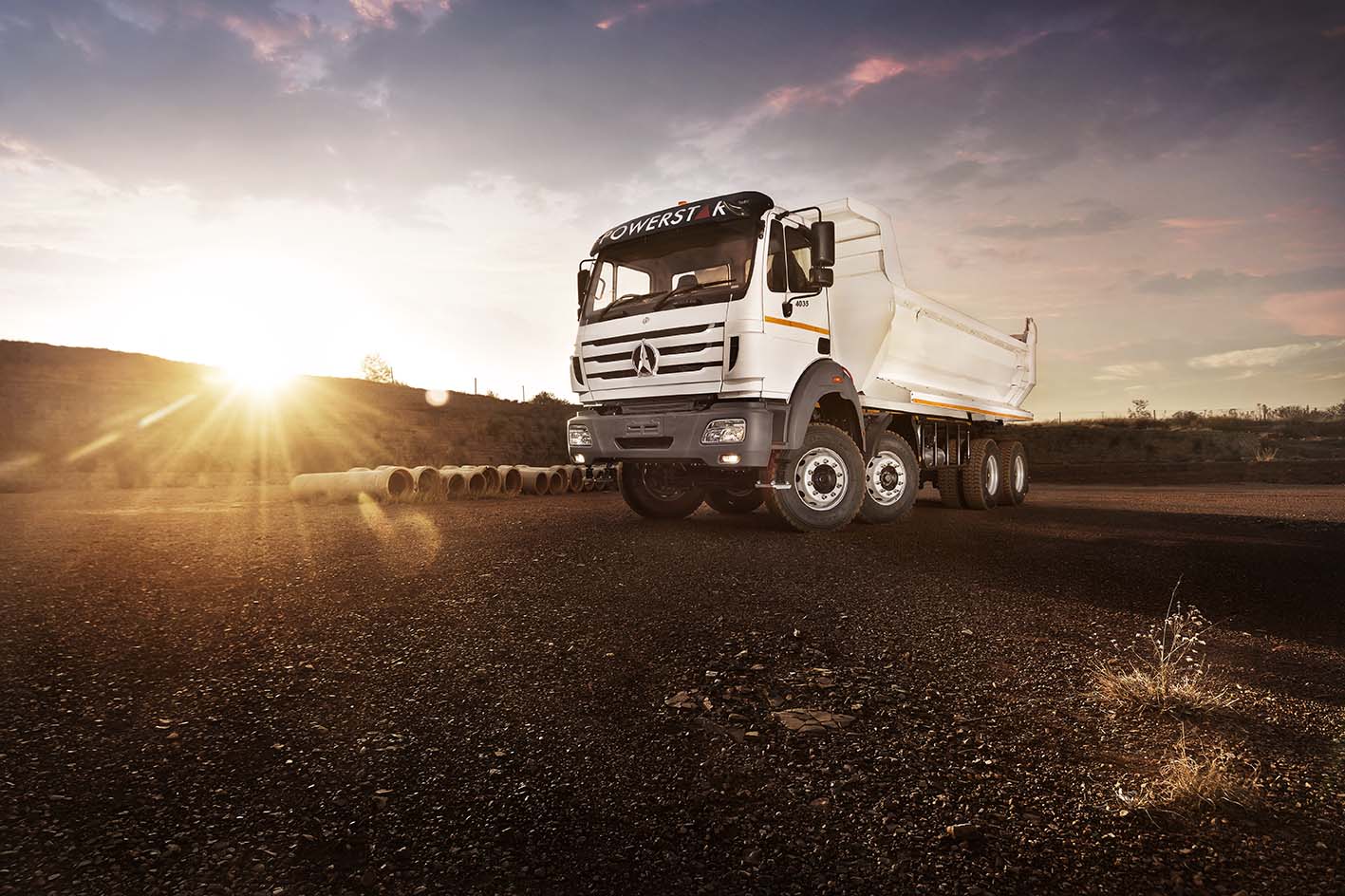

Product specifications for Powerstar VX 4035 8×4
Size and ply rating: 315/80R22.5 incl spare wheel
Type: VR4/01D-7.5
Suspension: Non-free standing stabilization leaf spring, hydraulic shock absorber, transverse stabilizer
Type: HD7/016DGS – HL7/015DS-13/4.769
Suspension: Stabilizator suspension, 13 pieces leaf spring (20mm each)
Hub reduction axles
Alternator: 70Amp
Starter Motor: 5.58kW
Batteries: 2 x 12V – 120AH
Gradeability @ GVM: 30% @GVM
Max Geared Road Speed: 90km/h (Limited to 80km/h)
Final Drive Ratio: 4,769
Make / Type / Size: GFX 430mm single
Operation: Single dry frictional disc, diaphragm spring, pulling type
Crawler: –
1st: 15,53
2nd: 12,08
3rd: 9,39
4th: 7,33
5th: 5,73
6th: 4,46
7th: 3,48
8th: 2,71
9th: 2,10
10th: 1,64
11th: 1,28
12th: 1,00
13th: –
14th: –
15th: –
16th: –
Reverse L: 14,86
Reverse H: 3,33
Overall Length (OL): 9400
Overall Width (OW): 2495
Overall Height (OH): 3085
Front Overhang (FOH): 1435
Rear Overhang (ROH): 1350
Wheel Base (WB): 5025
Bumper to Back of Cab (BBC): 2215
Cab to rear axle / unit (CA): 5040
Turning Radius (TR): 11500
Fuel Tank Capacity (FTC): 400 LTR
Manufacturers Gross Vehicle Mass (GVM): 40000
Manufacturers Gross Combination Mass (GCM): 75000
Manufacturers Front Axle Mass (GA): 15000
Manufacturers Rear Axle Mass (GAU): 26000
Permissible Maximum Vehicle Mass (V): 31650
Permissible Maximum Front Axle Mass (AF): 15000
Permissible Maximum Rear Axle Mass (AR): 18000
Unladen Front Axle Mass (UF): 5880
Unladen Rear Axle Mass (UR): 4260
Total Unladen Mass (UT): 10140

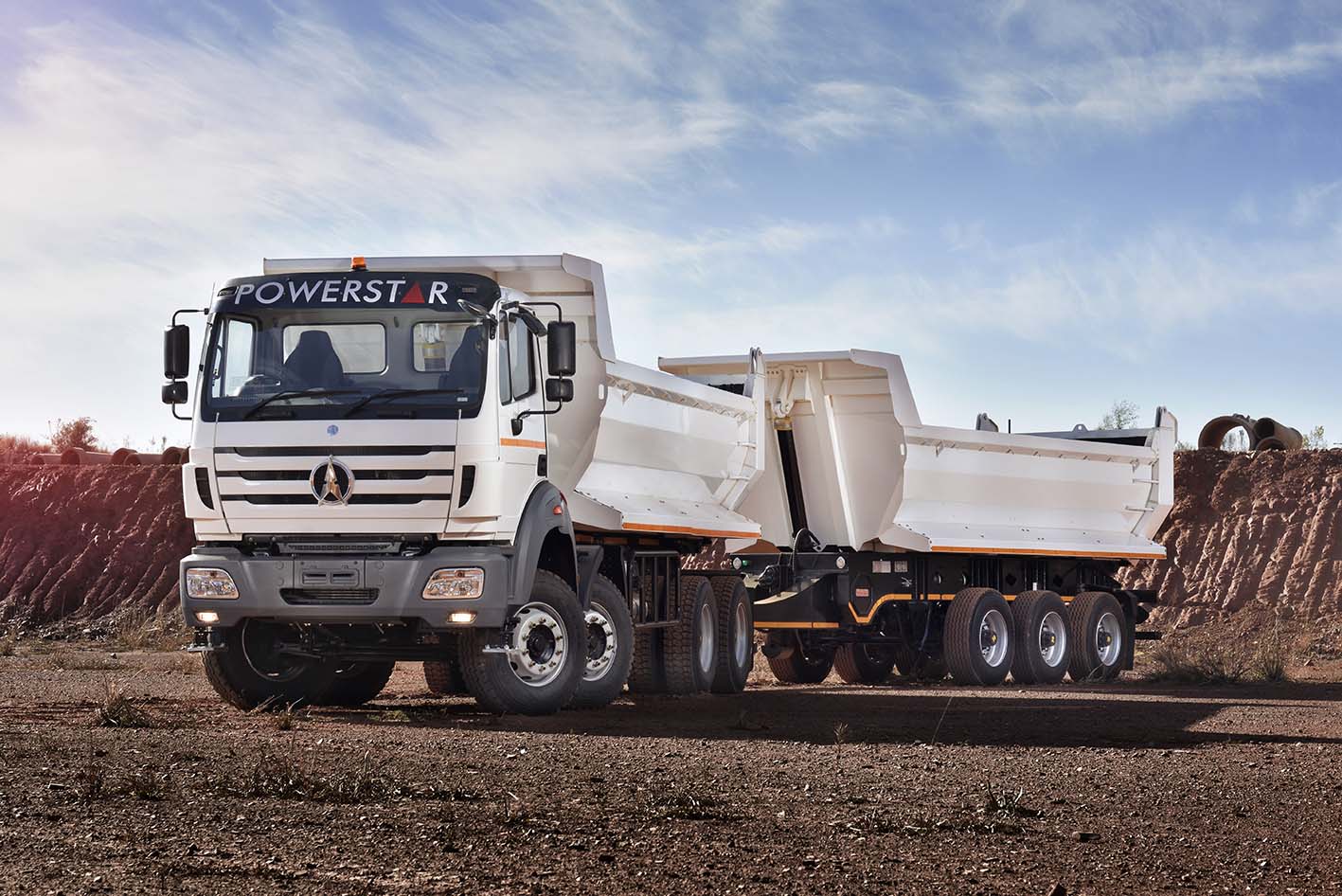

Permissible Max Drawing Vehicle Mass (D/T): 60000

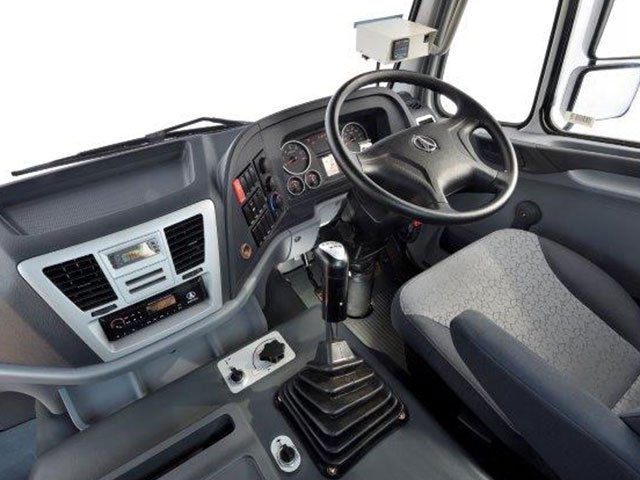

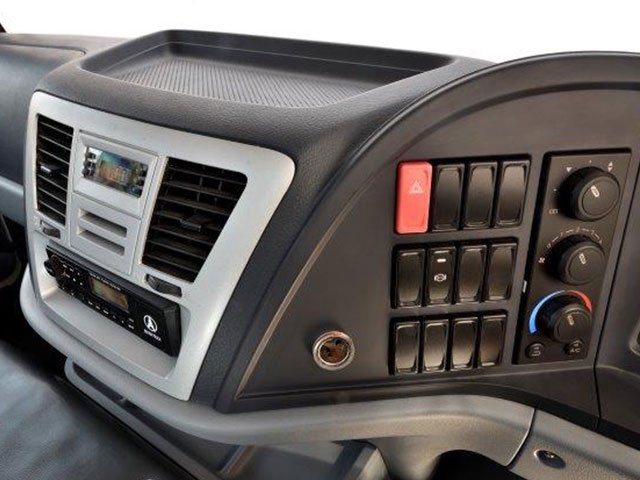

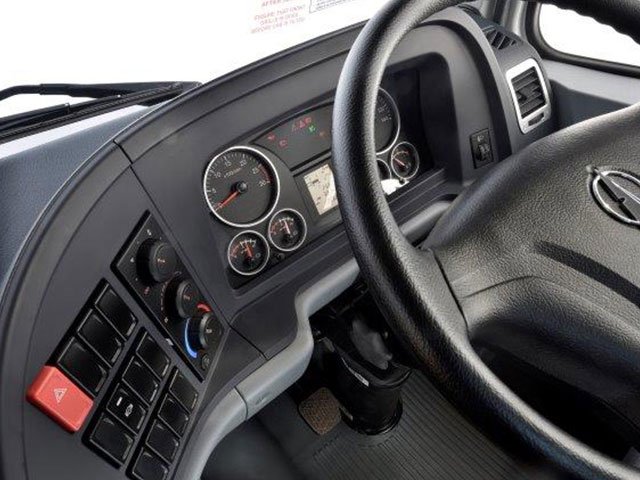

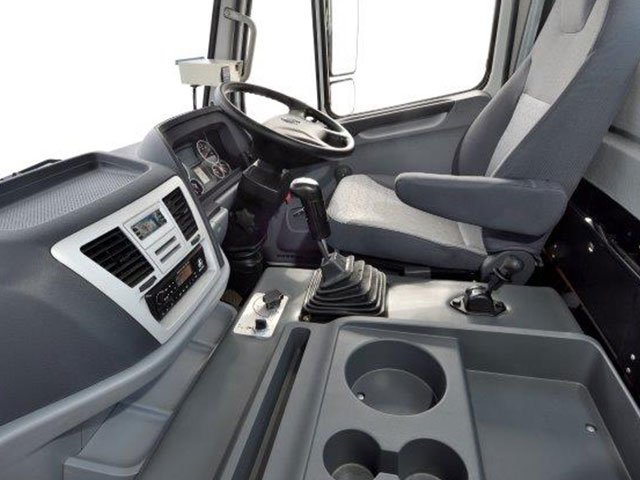

Day Cab: Hydraulic Tiltable Cab
