Overview
Engine
Make: Weichai Euro 3 Turbo charged Intercooled
Model Configuration: WP7.270 E30
Max Power – Kw @ r/min: 199/2300
Max Torque – N.m @ r/min: 1100/1200~1600
HP: 270
Cylinder: 6 Inline
Water Cooled: Yes
Direct Injection: Yes
Engine Driven P.T.O: No
Displacement (I): 7,14
Compression Ratio: 18:01
Transmission
Make/Model: 8JS118TB-B+QH50
No Gears: 8
Synchromesh or Constant Mesh: Synchromesh
Transfer Box: N/A
P.T.O: Yes
Brakes
Service: Dual circuit air brakes
Emergency / Parking: Spring potential brake
Auxiliary: ABS & EVB
Warranty
New Vehicle: 3 years/300 000km (South Africa only)

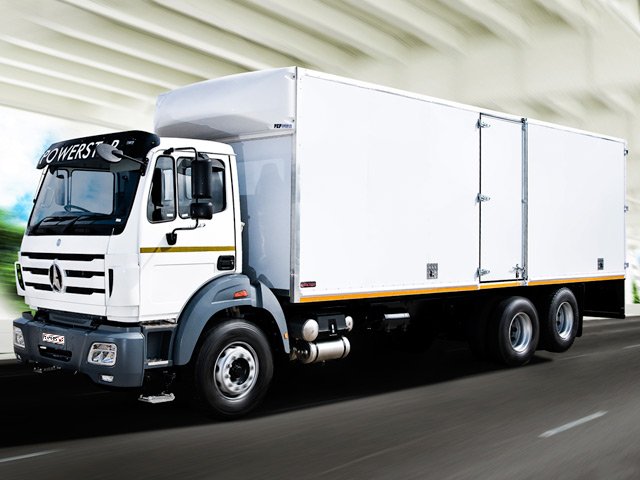

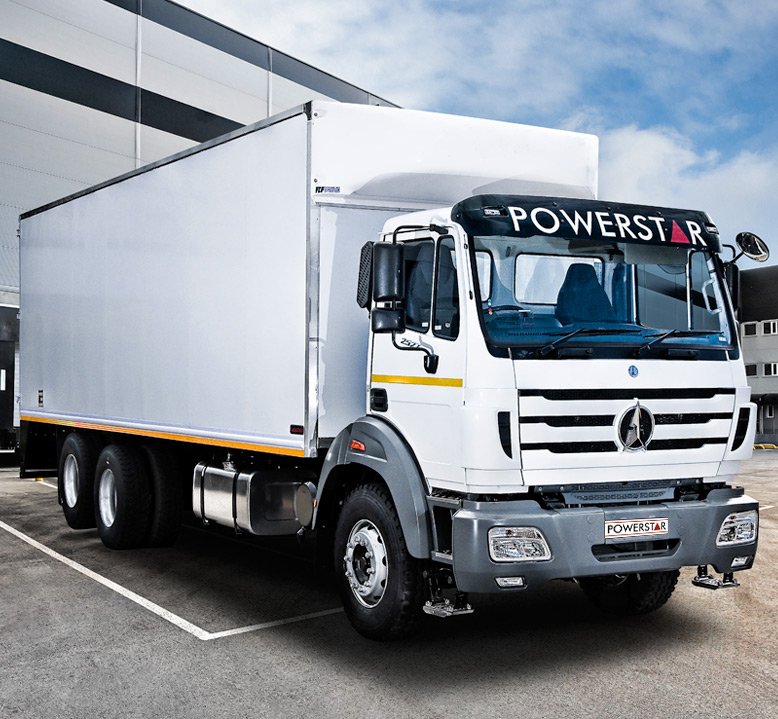

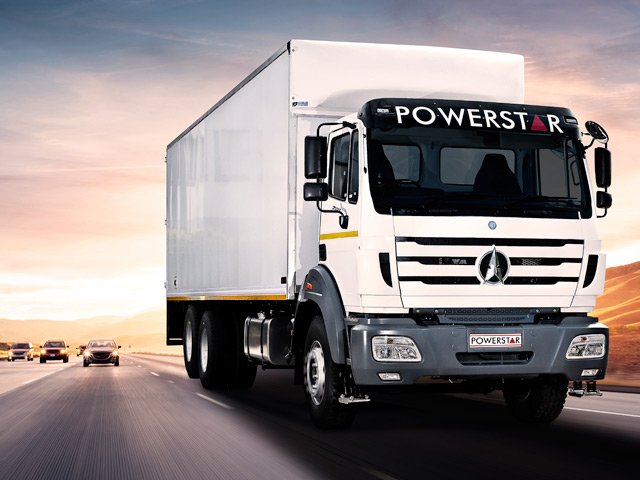

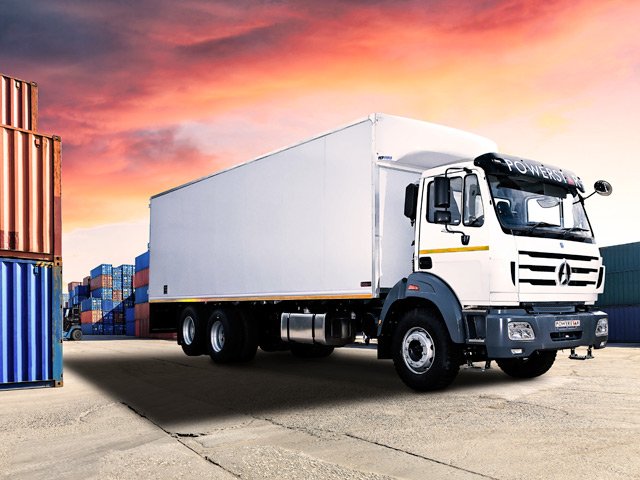

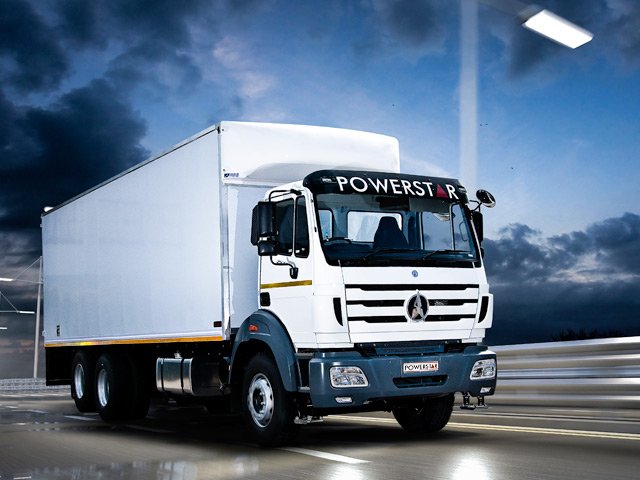

Product specifications for Powerstar VX 2527 6×2 LWB
Size and ply rating: 315-80R22.5 (12R22.5) incl spare wheel
Type: VR4/10D-7.5(ABS) Drum Brake
Suspension: Non-free standing stabilization leaf spring, hydraulic shock absorber, transverse stabilizer
Type: HL8/02D-10/4.11(ABS), Hypoid and BPW 9T ECO PLUS Tag axle
Suspension: Stabilizator suspension, hydraulic shock absorber, Transverse stabilizer and BPW Air suspension Tag axle.
Alternator: 70Amp
Starter Motor: 5.75kW
Batteries: 2 x 12V – 135AH
Gradeability @ GVM: 30% @GVM
Max Geared Road Speed: 110km/h (Limited to 80km/h)
Final Drive Ratio: 4,11
Make / Type / Size: GFX 420mm single
Operation: Single dry frictional disc, Diaphragm spring, pushing type
Crawler: –
1st: 11,40
2nd: 7,94
3rd: 5,63
4th: 4,06
5th: 2,81
6th: 1,96
7th: 1,39
8th: 1,00
9th: –
10th: –
11th: –
12th: –
13th: –
14th: –
15th: –
16th: –
Reverse L: 11,35
Reverse H: –
Overall Length (OL): 10600
Overall Width (OW): 2 495
Overall Height (OH): 2 905
Front Overhang (FOH): 1 435
Rear Overhang (ROH): 2265
Wheel Base (WB): 6200
Bumper to Back of Cab (BBC): 1 880
Cab to rear axle / unit (CA): 5755
Turning Radius (TR): 10 000
Fuel Tank Capacity (FTC): 400 LTR Aluminum
Manufacturers Gross Vehicle Mass (GVM): 25000
Manufacturers Gross Combination Mass (GCM): 28 000
Manufacturers Front Axle Mass (GA): 7500
Manufacturers Rear Axle Mass (GAU): 19000
Permissible Maximum Vehicle Mass (V): 25000
Permissible Maximum Front Axle Mass (AF): 7 500 (7100)
Permissible Maximum Rear Axle Mass (AR): 18000
Unladen Front Axle Mass (UF): 3984
Unladen Rear Axle Mass (UR): 3521
Total Unladen Mass (UT): 7505
Permissible Max Drawing Vehicle Mass (D/T): 28 000

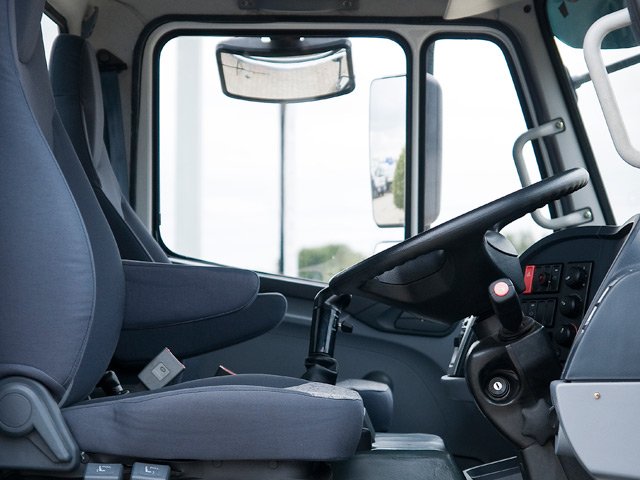

Day Cab: Hydraulic Tiltable Cab
