Overview
Engine
Make: Cummins Euro III
Model Configuration: ISF2.8S3148T
Max Power – Kw @ r/min: 110/3200
Max torque – N.m @ r/min: 360/1800-2700
HP: 147
Cylinder: 4 Inline
Water Cooled: Yes
Direct Injection: Yes / Common Rail
Engine Driven P.T.O: No
Displacement (L): 2,78
Compression Ratio: 16.9:1
Transmission
Make/Model: Ecolite ZF5S368
No of Gears: 5
Synchromesh or Constant Mesh: Synchromesh
Transfer Box: N/A
P.T.O: No P.T.O – P.T.O Interface Only
Brakes
Service: Air Brake

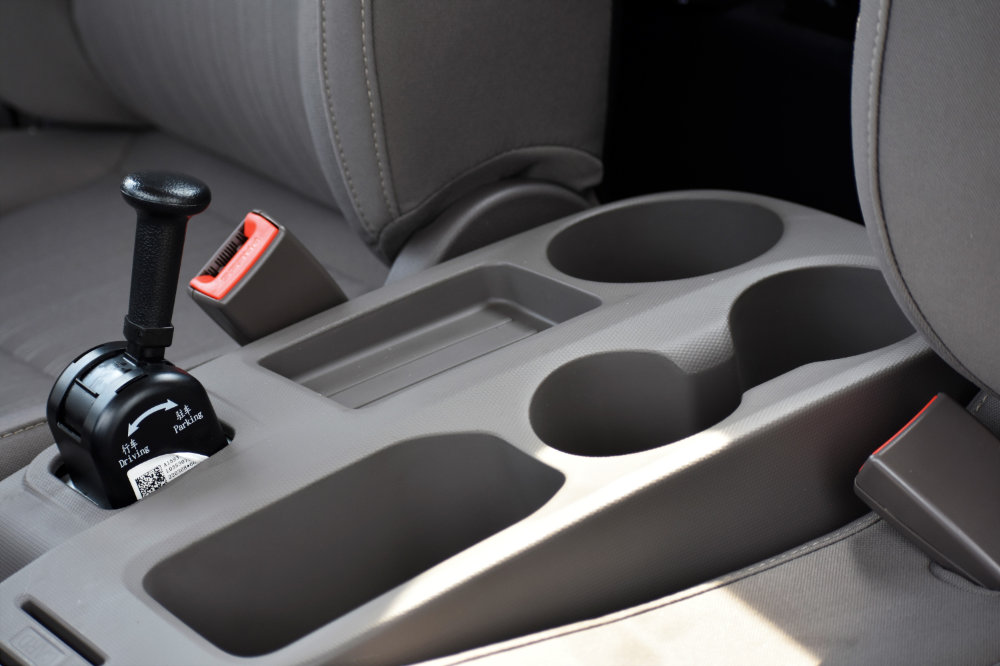

Emergency / Parking: Spring Potential Brake
Auxiliary: Exhaust Brake
Warranty
New Vehicle 5 Years/Unlimited Mileage

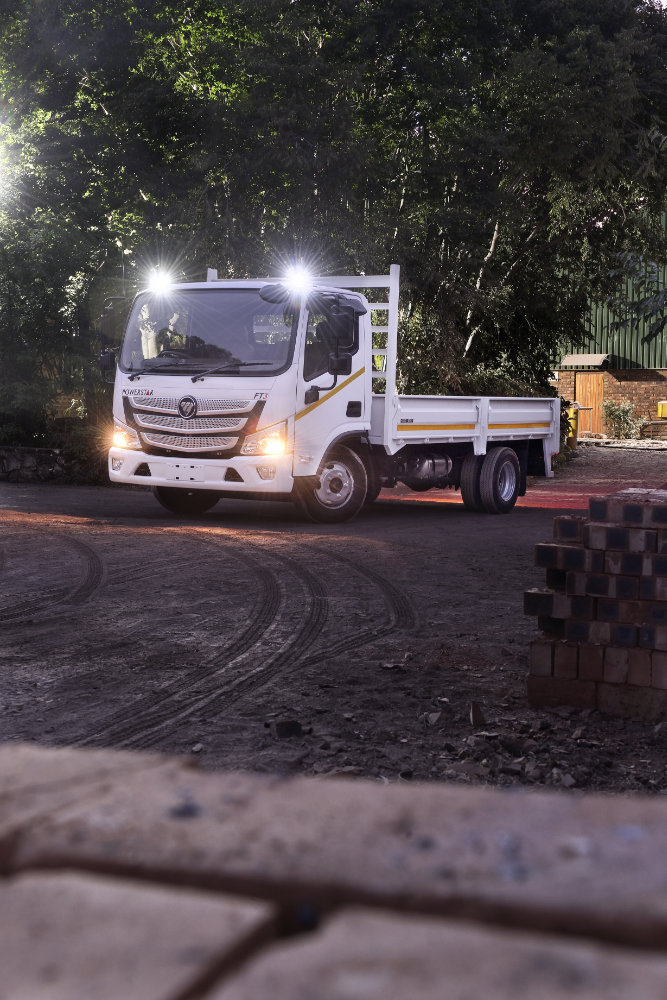

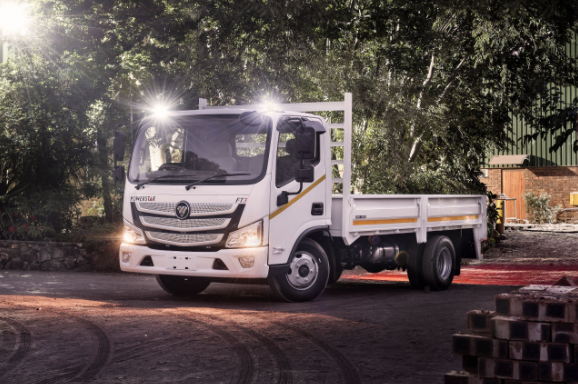

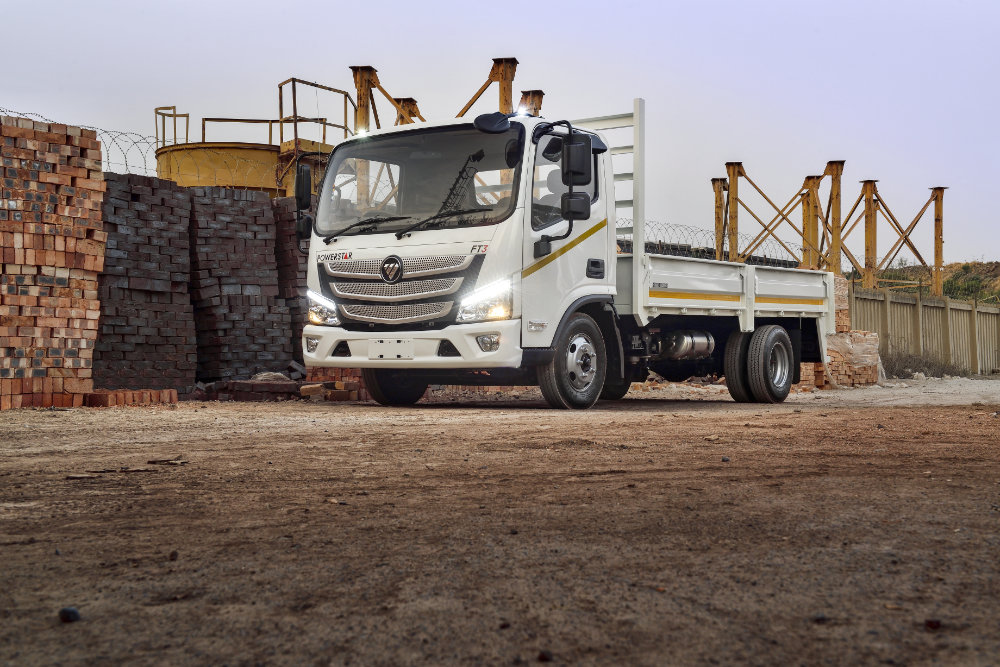

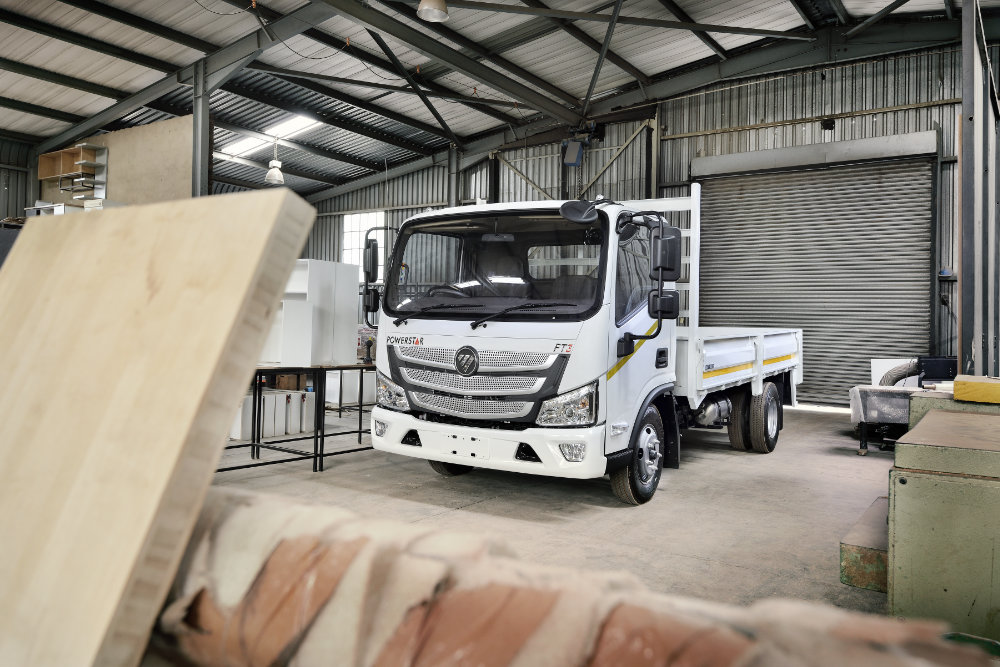

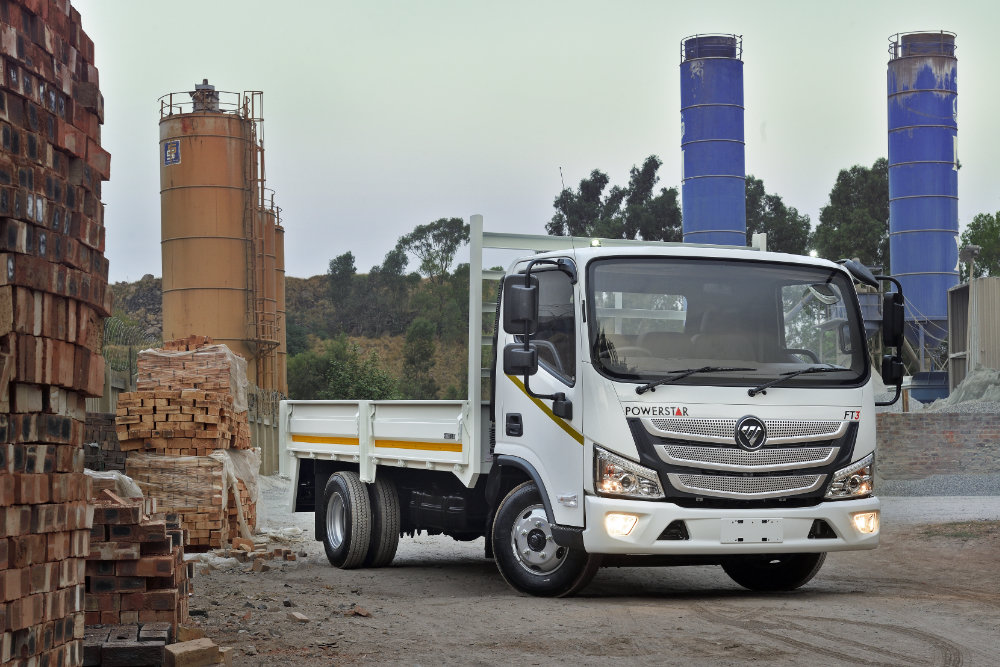

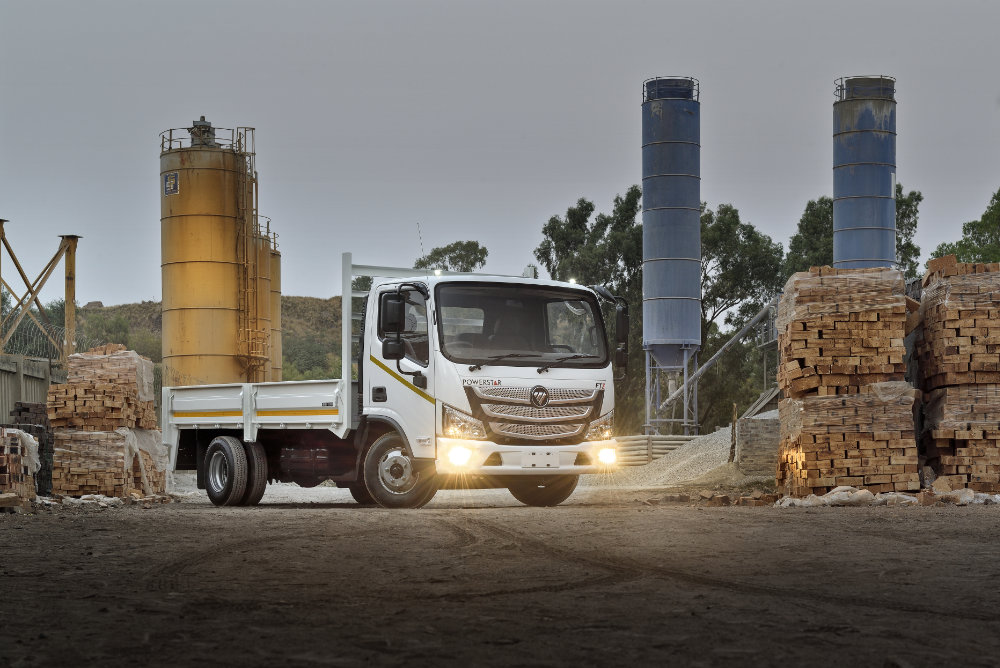

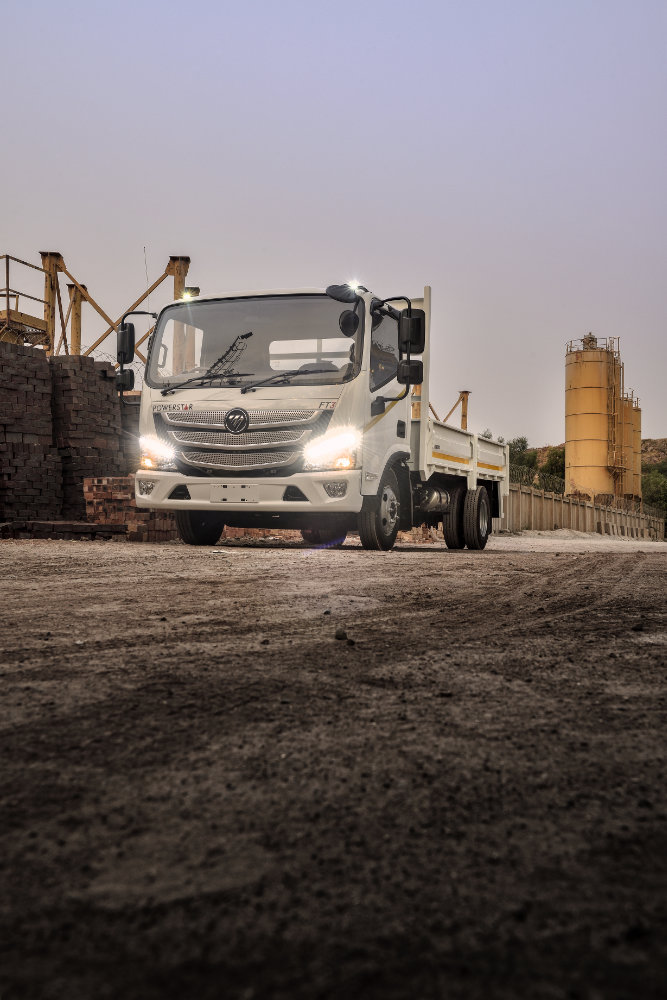

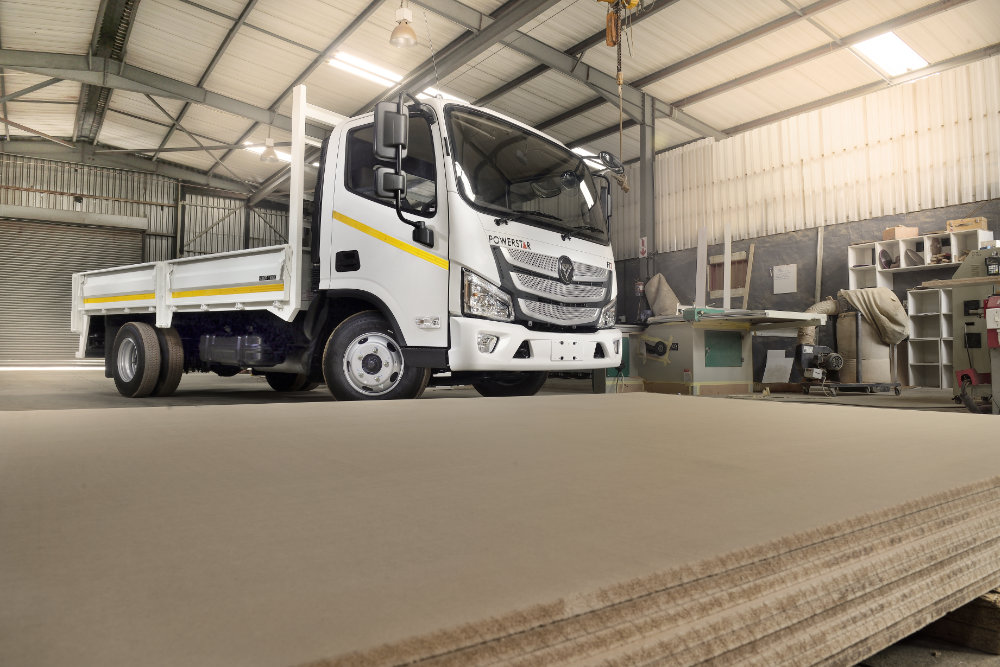

Product specifications for Powerstar FT3 M4
Size and Ply Rating: 205/75R17,5
Type: Forged I-beam
Suspension: Non-Independent, Front and Rear Leaf Spring
Brake: Disc
Type: Integral
Suspension: Non-independent, Front and Rear Leaf Spring
Brake: Drum
Alternator: 120 Amp
Starter Motor: 12 Volt/2.5 Kw
Batteries: 1 X 12v – 100Ah
Gradeability @ GVM: 30%
Max Geared Road Speed: 113 km\h (Limited to 100km/h)
Final Drive Ratio: 4,875
Make / Type / Size: Ø310
Operation: Hydraulic Assistance
Crawler
1st: 5,015
2nd: 2,543
3rd: 1,536
4th: 1,000
5thL 0,789
Reverse L: N/A
Reverse H: 4,481
Overall Length (OL): 5 945
Overall Width (OW): 2 200
Overall Height (OH): 2 380
Front Overhang (FOH): 1 095
Rear Overhang (ROH): 1 420
Wheel Base (WB): 3 360
Bumper to Back of Cab (BBC) 1 735
Cab to Rear Axle / Unit (CA): 2 790
Turning Radius (TR): 7,52
Fuel Tank Capacity (FTC): 90 Ltr
Manufacturers Gross Vehicle Mass (GVM): 6 900
Manufacturers Gross Combination Mass (GCM): 8 000
Manufacturers Front Axle Mass (GA): 2 500
Manufacturers Rear Axle Mass (GAU): 4 500
Permissible Maximum Vehicle Mass (V): 6 900
Permissible Maximum Front Axle Mass (AF): 2 500
Permissible Maximum Rear Axle Mass (AR): 4 500
Unladen Front Axle Mass (UF): 1 540
Unladen Rear Axle Mass (UR): 780
Total Unladen Mass (UT): 2 320
Permissible Max Drawing Vehicle Mass (D/T): 8 000
Day Cab: Yes
