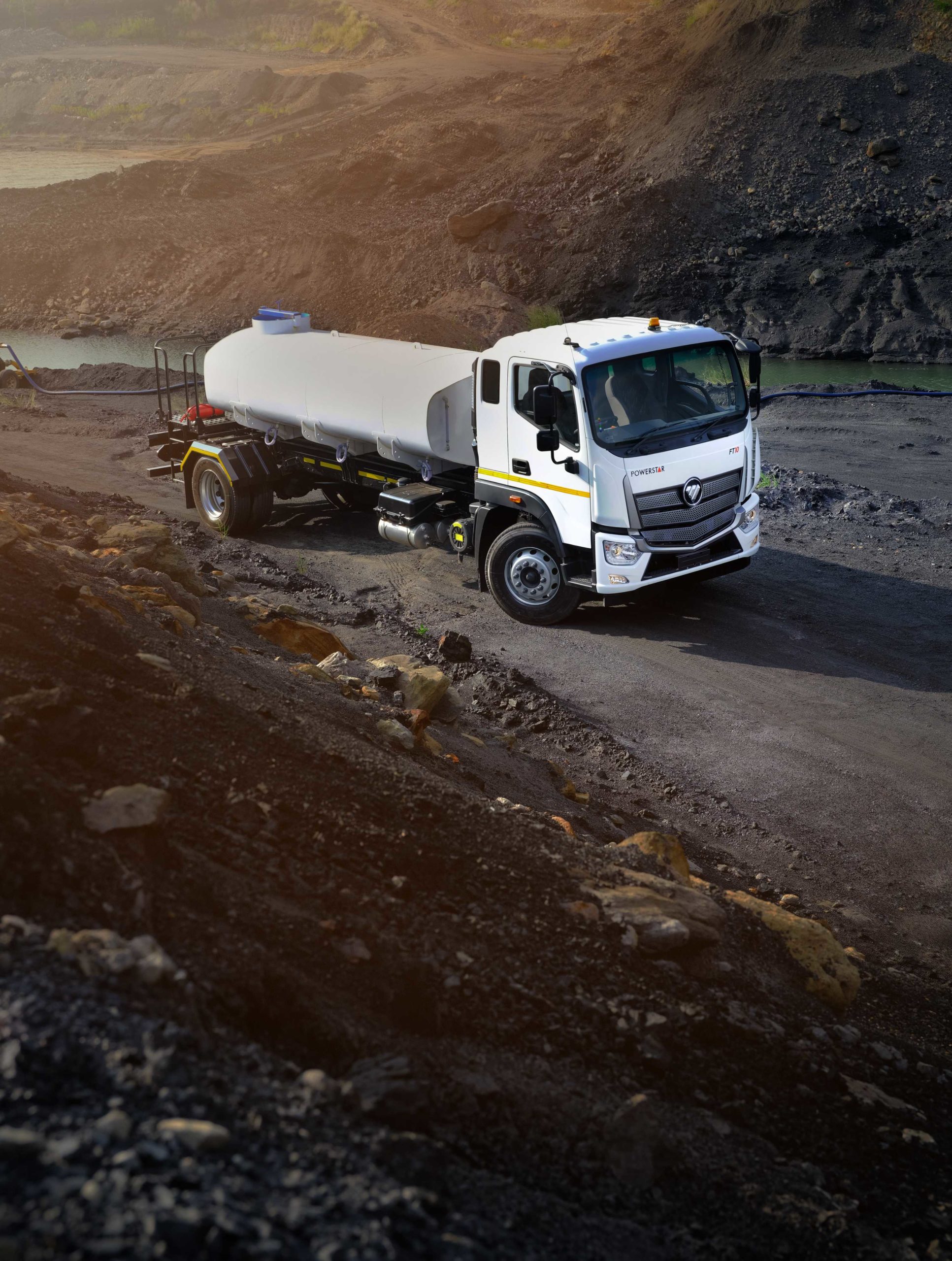

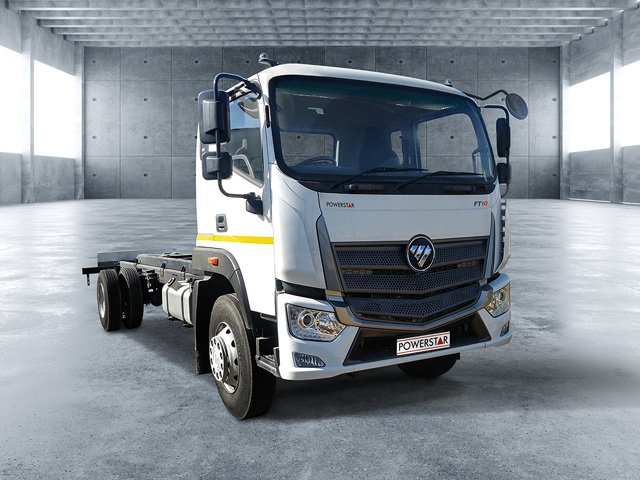

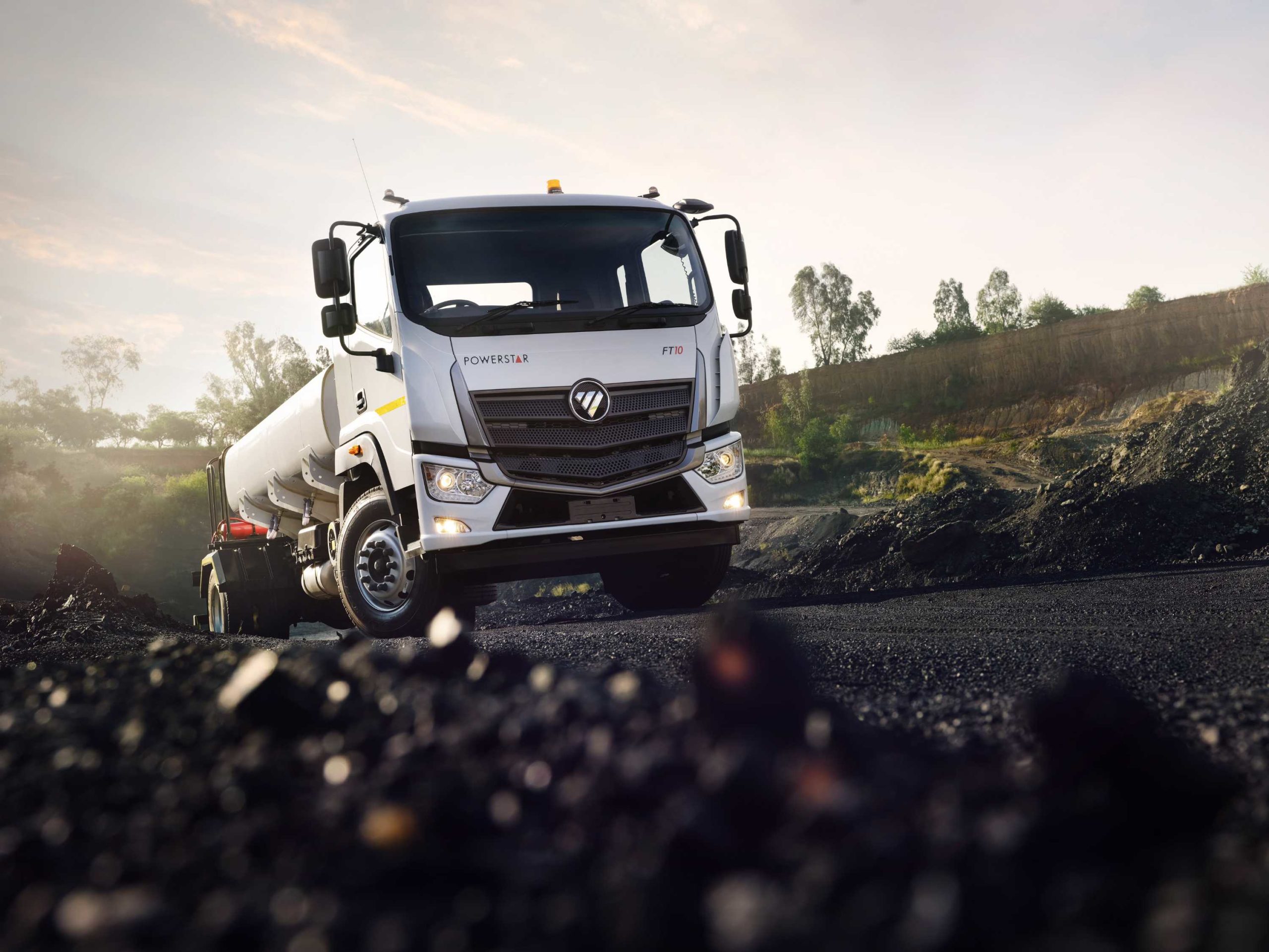

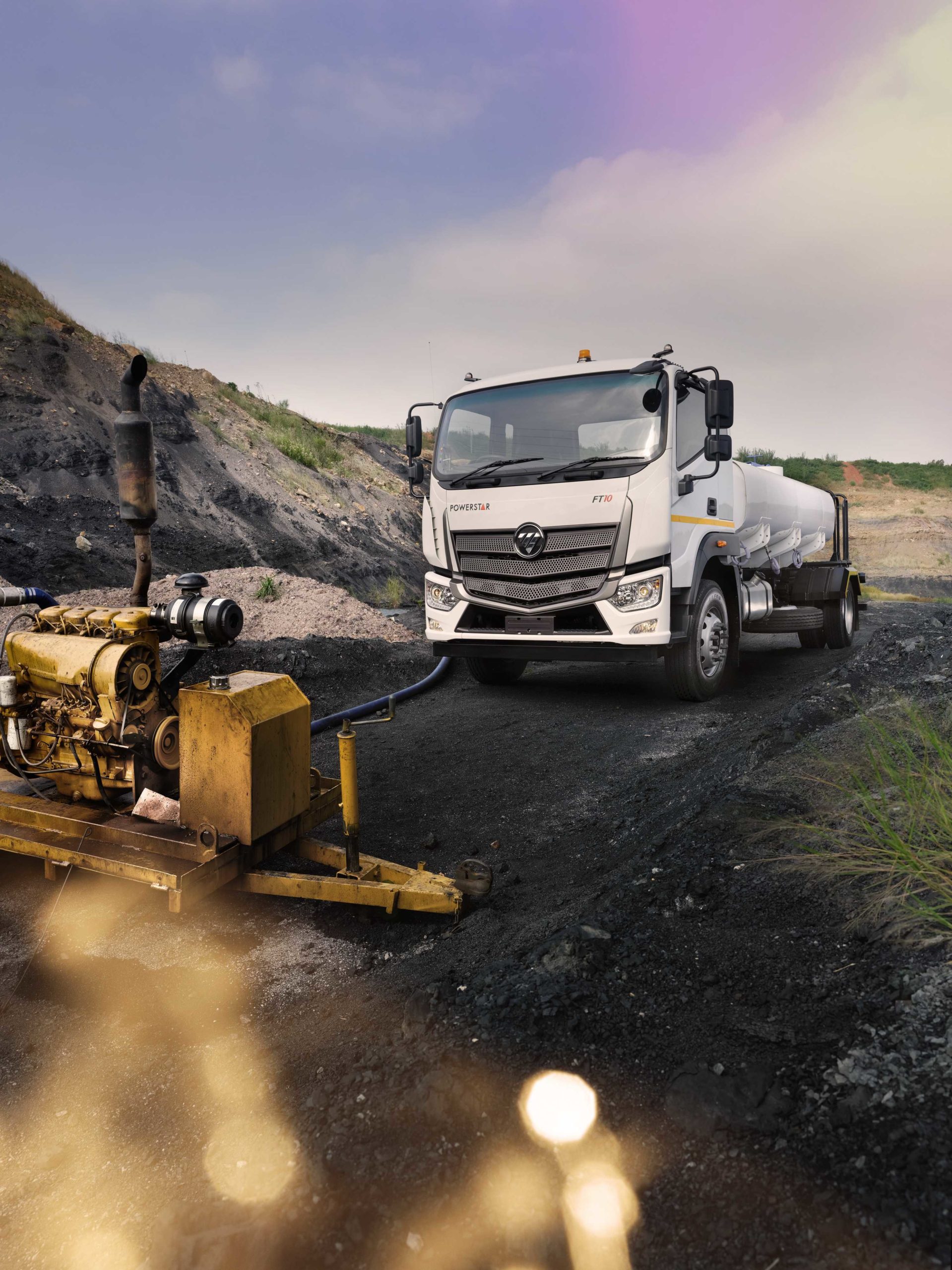

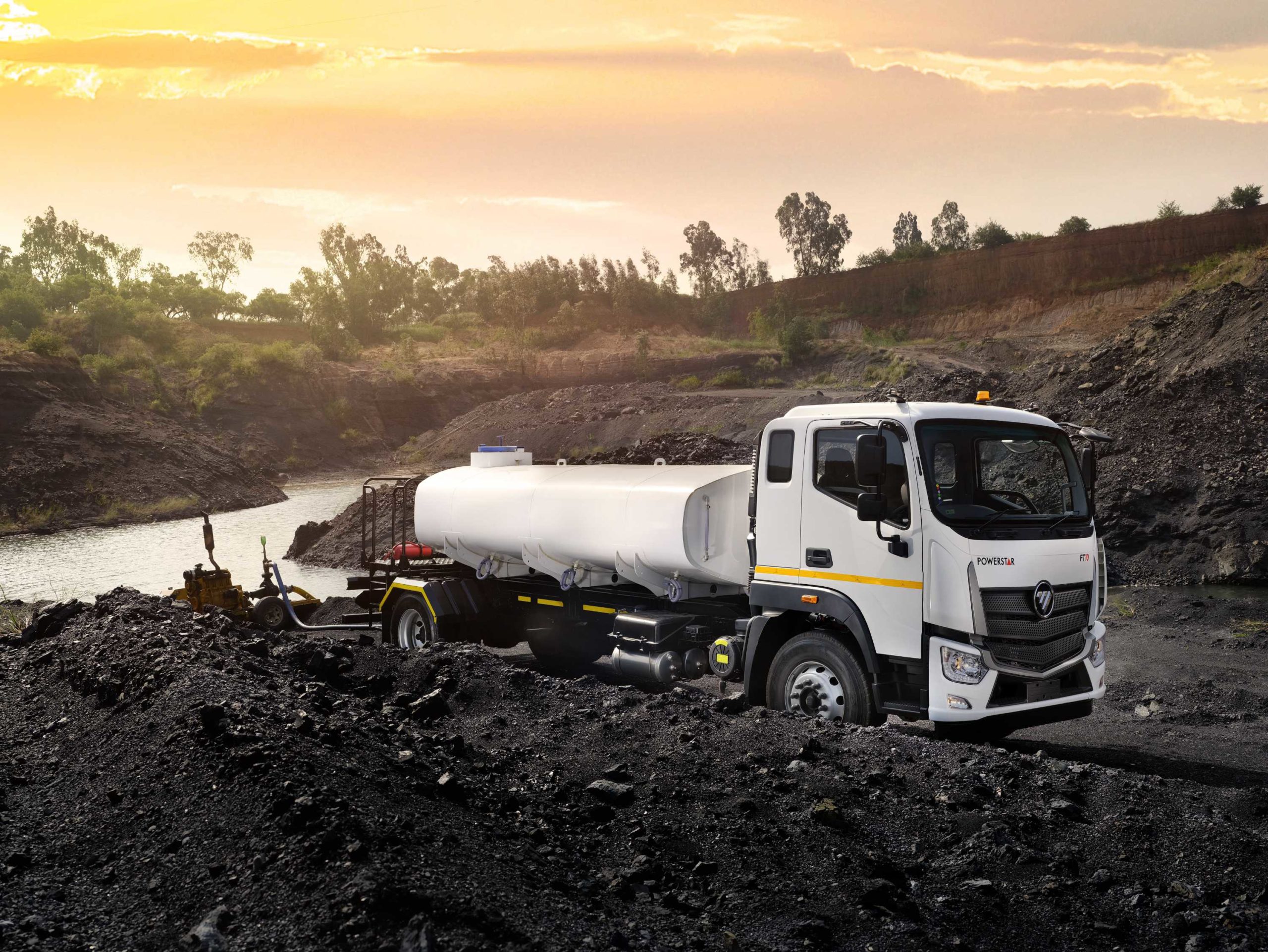

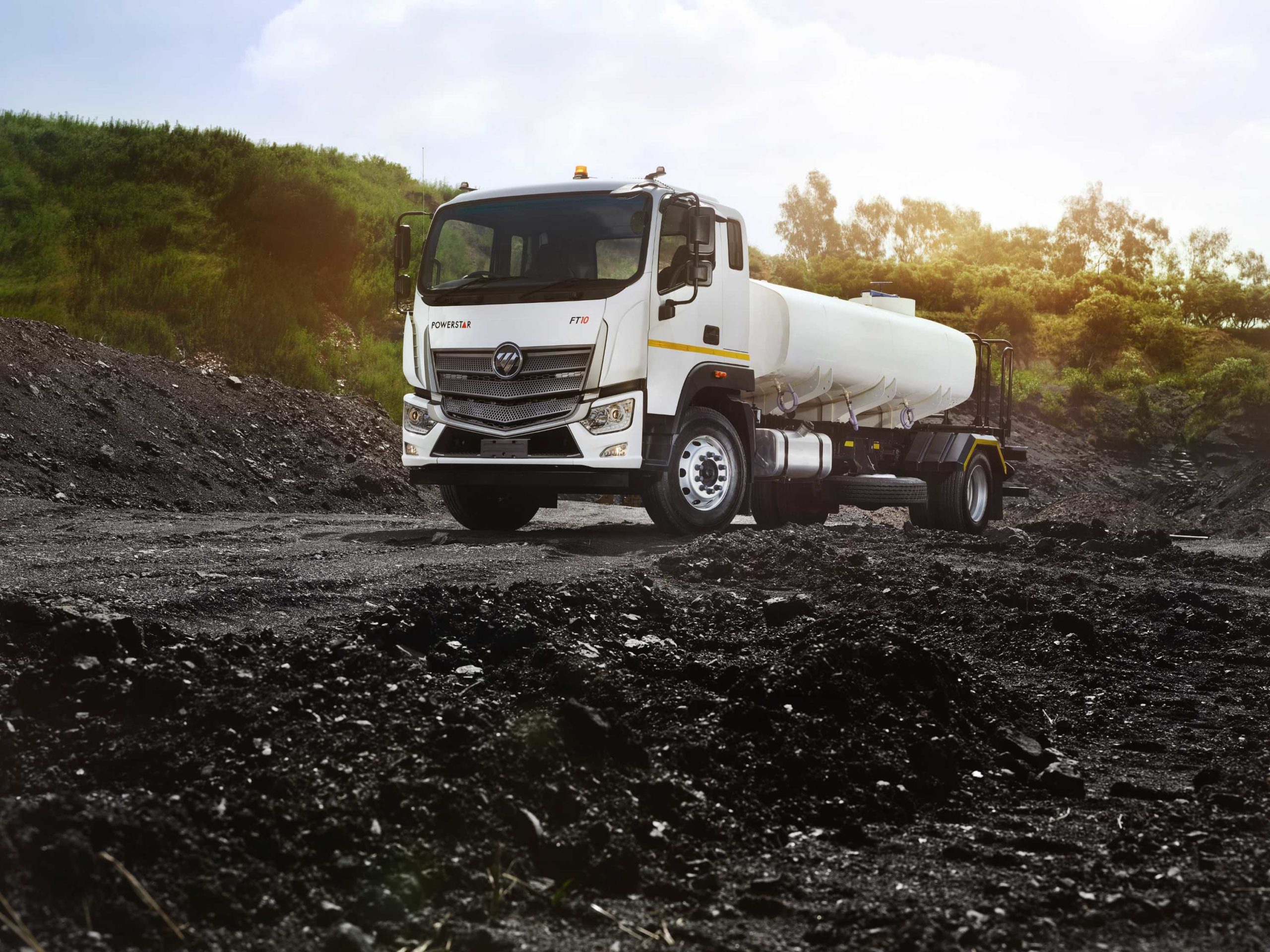

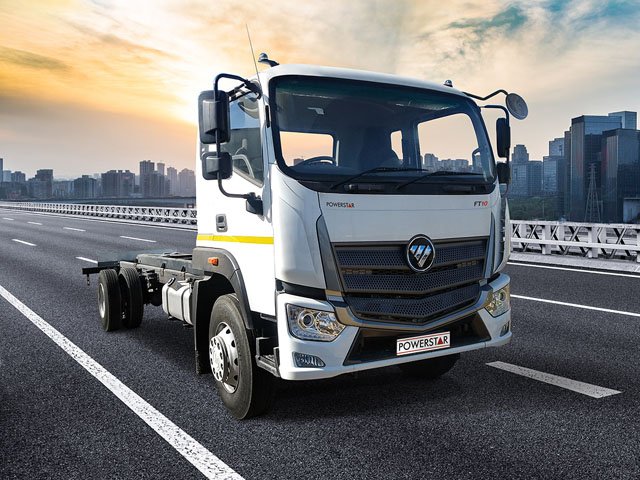

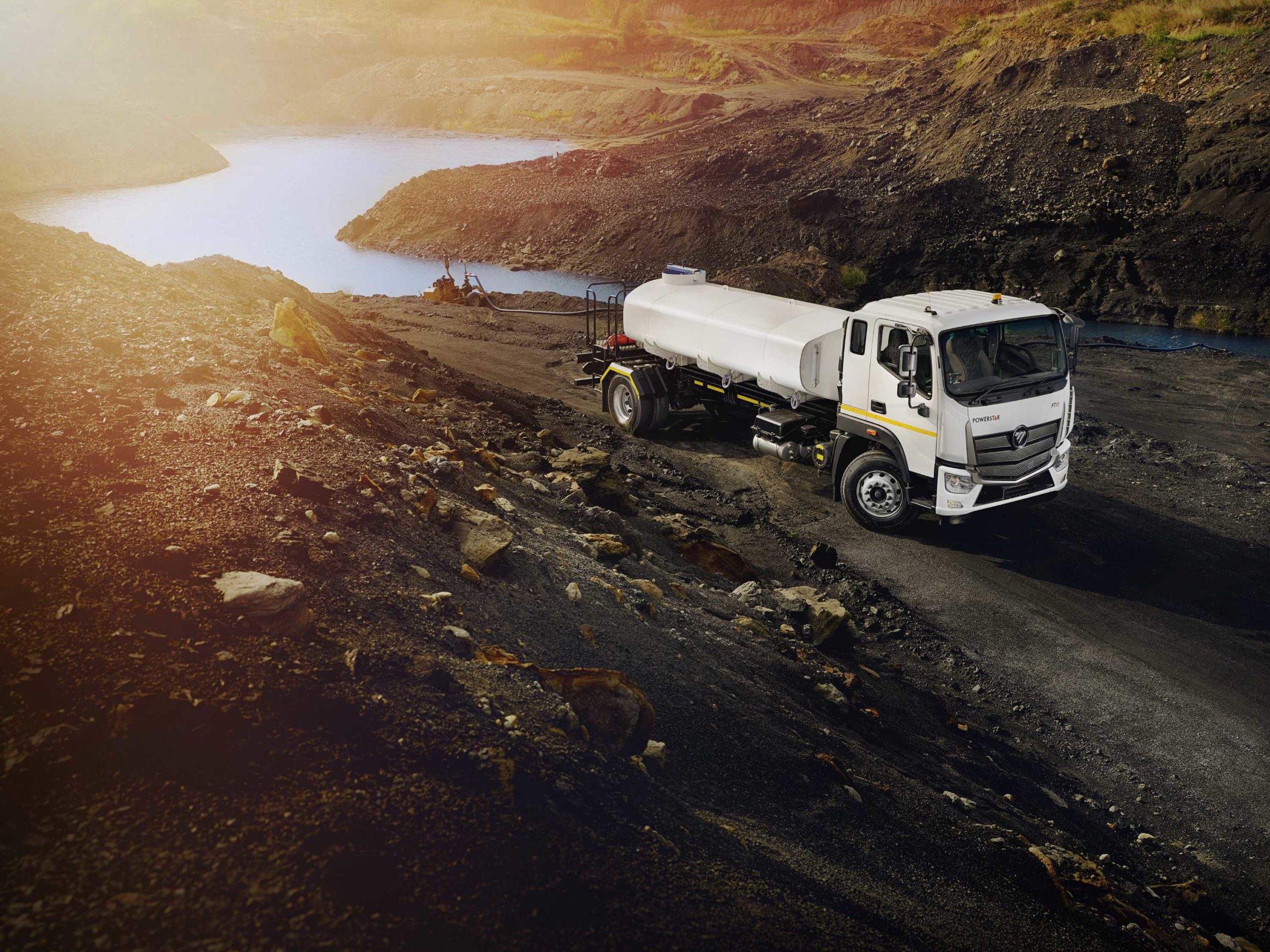

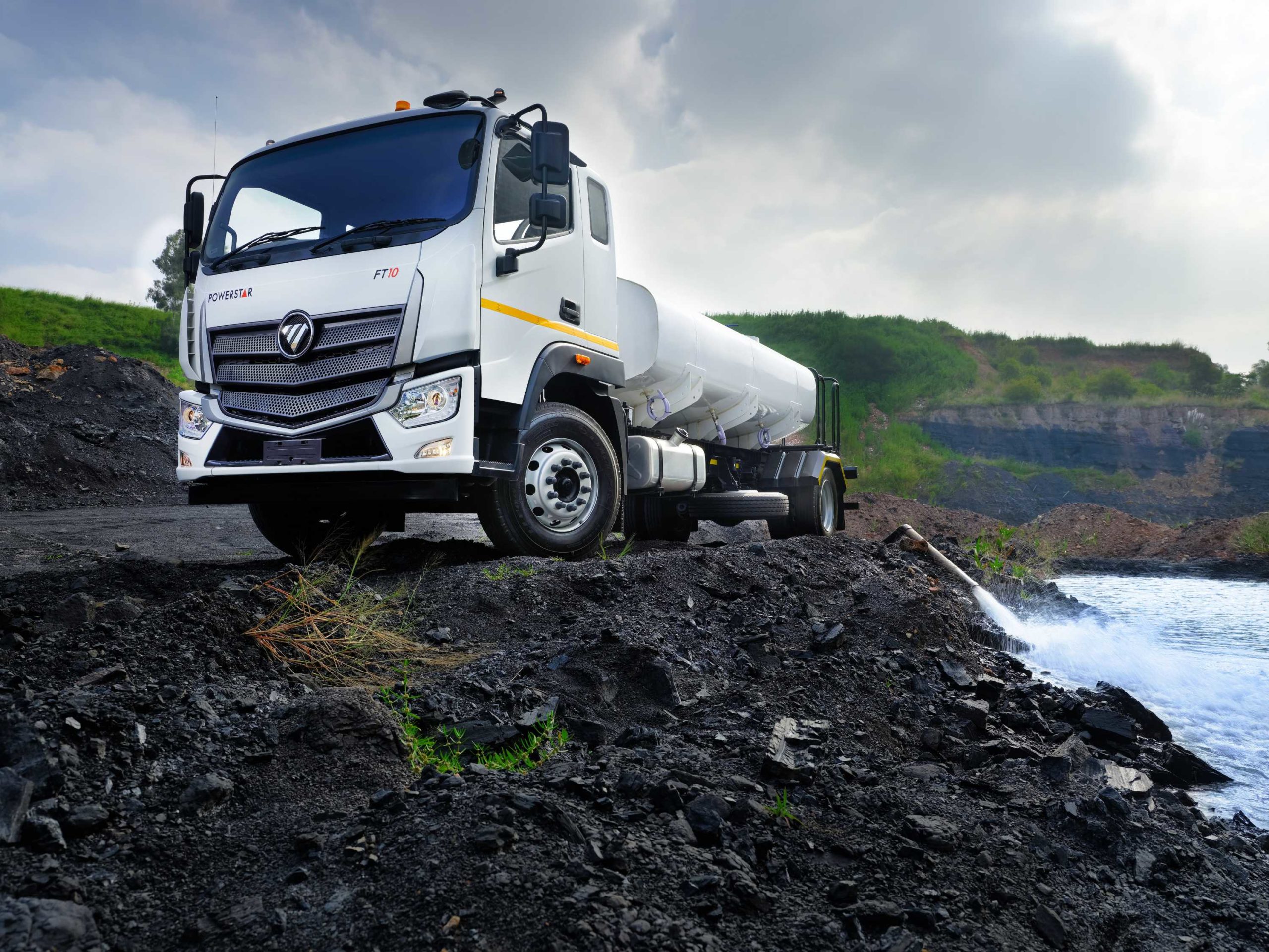

Powerstar FT10

Size and ply rating: 11R22.5 18ply

Type: Reverse “Elliot” I-Beam
Suspension: Multi Leaf with Double acting Shock Absorbers
Brake: Air – Drum with Auto Slack adjusters

Type: Single banjo, Full Floating, Integral Shaft & Drive Flange
Suspension: Multi Leaf with Double acting Shock Absorbers
Brake: Air – Drum with Auto Slack adjusters

Alternator: 70 Amp
Starter Motor: 24 Volt / 6 KW
Batteries: 2 x 12V – 165Ah

Gradeability: @ GVM 34%
Max Geared Road Speed: 105 km\h
Final Drive Ratio: 4,875

Make / Type / Size: Φ395
Operation: Single disc, dry tyre, diaphragm spring

Crawler
1st: 6,75
2nd: 3,6
3rd: 2,13
4th: 1,39
5th: 1
6th: 0,78
7th: –
8th: –
9th: –
10th: –
11th: –
12th: –
13th: –
14th: –
15th: –
16th: –
Reverse L: –
Reverse H: 6,06

Overall Length (OL): 9800 (LWB)/ 6700(SWB)
Overall Width (OW): 2 446
Overall Height (OH): 2 800
Front Overhang (FOH): 1 270
Rear Overhang (ROH): 2780 (LWB)/ 930 (SWB)
Wheel Base (WB): 5750 (LWB)/ 4500 (SWB)
Bumper to Back of Cab (BBC): 2 057
Cab to rear axle / unit (CA): 4 963
Turning Radius (TR): 10,55
Fuel Tank Capacity (FTC): 200 L

Manufacturers Gross Vehicle Mass (GVM): 16 000
Manufacturers Gross Combination Mass (GCM): 24 000
Manufacturers Front Axle Mass (GA): 6 300
Manufacturers Rear Axle Mass (GAU): 12 500
Permissible Maximum Vehicle Mass (V): 15 300
Permissible Maximum Front Axle Mass (AF): 6 300
Permissible Maximum Rear Axle Mass (AR): 9 000
Unladen Front Axle Mass (UF): 2 930
Unladen Rear Axle Mass (UR): 1 970
Total Unladen Mass (UT): 4 900
Permissible Max Drawing Vehicle Mass (D/T): 24 000

Day Cab: Yes
