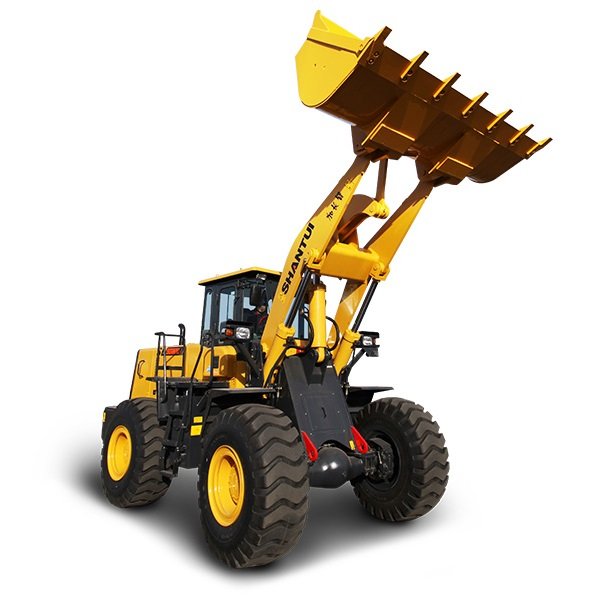

SHANTUI SL50WN

Make: Weichai
Model: WD10G220E23
Emission Regulation: Euro 2
Rated Power: 162 kW@2200 rpm
Maximum Torque: 900 Nm@1400 rpm
Displacement: 9.726l
Cylinder: 6-126 x 130 mm (borexstroke)
Water cooled: YES
Direct injection: YES
Aspiration: Turbocharged & intercooled
Radiator: Enlarged radiator

Make: SHANTUI ZL50D-2
Torque converter: Integrated with transmission
Transmission: Planetary type, power shift
Max. travel speed, fwd: 38 km/h
Max. travel speed, rev: 17 km/h
Number of gears, fwd: 2
Number of gears, rev: 1

Fuel tank: 230l
Engine coolant: 60l
Engine oil: 28l
Hydraulic tank: 170l
Transmission and torque converter: 45l
Front axle: 27l
Rear axle: 27l

Main Pump Type: Gear
Main Relief Pressure: 18 Mpa
Lifting time: 5.6 s
Cycle time: 10.5 s
Pilot control: YES

ROPS&FOPS: Optional
A/C: YES
Adjustable air suspension seat: YES
Seat belt: YES
Strobe light: YES
Fire extinguisher: YES, SABS Standard
Engine oil pressure meter: YES
Hydraulic oil temperature meter: YES
Coolant temperature meter: YES
Hour meter: YES
Voltage meter: YES

Overall length: 8025 mm
Overall width: 3026 mm
Overall height: 3410 mm
Min. ground clearance: 430 mm
Wheel Base: 3200 mm
Turning radius (Outside of Tyre): 7256 mm
Turning radius (Outside of Bucket): 6584 mm
Wheel Tread: 2250 mm

Batteries: 2x12V-120Ah maintenance free
Starter Motor: 8.1kW
Alternator: 70 A
