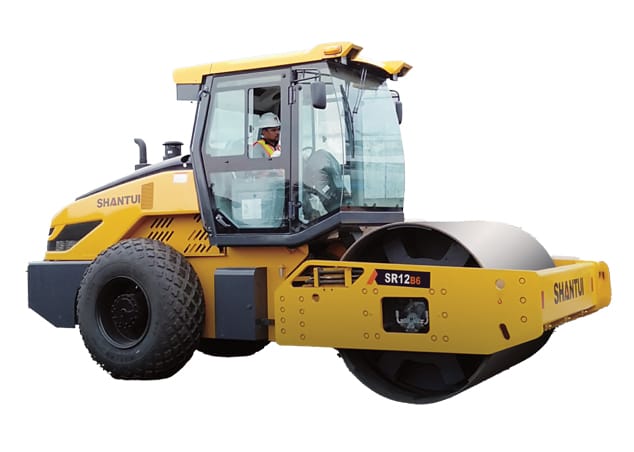

Shantui SR12-B6
Product specifications for Shantui SR12-B6
ENGINE
Emission Regulation: Stage Il
Model: WP4G130E22
Type: 4-Cycle, Direct Injection, Water-cooled
Aspiration: Turbocharged
Bore x Stroke: 105*130 mm
Gross Power: 97.5 kW @ 2200 rpm
Max Torque: 560 N.m @ 1400~1600 rpm
Number of Cylinders: 4
Rated Fuel Consumption: 215 g/kW.h
Displacement: 4.5 L
POWER TRAIN
Type: Hydrostatic, All-wheel Drive
Driving Pump: Mechanical Control, Variable Piston Pump 75ml/r
Axle Drive: Variable Piston Motor
Drum Drive: Constant Piston Motor
Hydraulic Relief Pressure: 35 Мра
Tire: 23.1-26-8PR/20.5-25-16PR
Tire type: E-7, Tube type
Max. Grade Ability: 48%
Forward,I,II: 0~5.3km/h,0~9.9km/h
Reverse, I,II: 0~5.3km/h,0~9.9km/h
STEERING
Type: Hydraulic Power, Articulated Steering
Hydraulic Relief Pressure: 14 Mpa
Steering Angle: ±33°
Oscillating Angle: ±12°
Min. Turning Radius: 6400mm
BRAKES
Service Brake: Hydraulic Inertia Brake
Parking Brake: Multi-disc Brake, Hydraulic Control
Emergency Brake: Hydraulic Inertia Brake & Multi-disc Brake
STANDARD EQUIP
Fire Extinguisher
Air Con
Radio
Reverse Buzzle
Strobe Light
Reflective Tapes
Cab Fan
DRUM
Width: 2130 mm
Diameter: 1500 mm
Drum Shell Thickness: 20 mm
Number of Pad Feet: –
Height of Pad Feet: –
VIBRATION
Type: Hydrostatic, Electric Control
Vibration Pump: Variable Piston Pump
Vibration Motor: Constant Piston Motor
Hydraulic Relief Pressure: 30 Мра
Frequency, Low: 30Hz
Frequency, High: 36Hz
Amplitude, High: 2 mm
Amplitude, Low: 1 mm
Centrifugal Force, Maximum: 290kN
Centrifugal Force, Minimum: 200kN
CAPACITIES
Fuel Tank: 260 L
Hydraulic Oil Tank: 100 L
Engine Coolant: 17 L
Engine Crank Case: 11 L
ELECTRICAL SYSTEM
Battery: 2x12V, 120Ah
Alternator: 28V, 80A
Starter Motor: 24V, 6kW
WEIGHT
Operating Weight: 12000 kg
Axle Load, Drum: 7000 kg
Axle Load, Wheel: 5000 kg
Static Linear Load (at Drum): 327 N/cm
DIMENSIONS
A. Overall width: 2305 mm
B. Drum width: 2103 mm
C. Width (outside tires): 2108 mm
D. Ground clearance: 360 mm
E. Wheel base: 3100 mm
F. Overall length: 5890 mm
G. Overall height: 3160 mm
H. Drum diameter: 1500 mm
