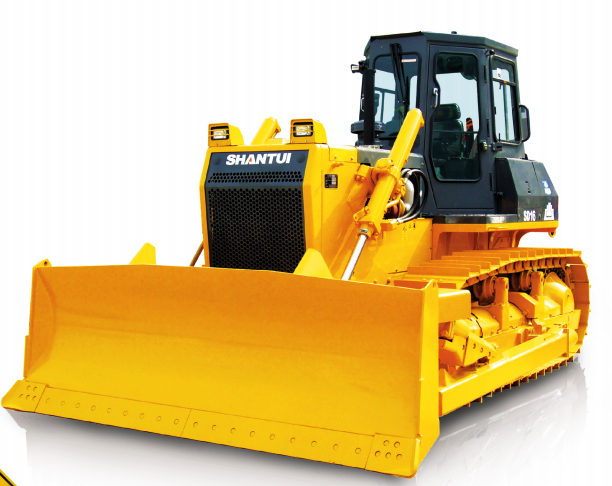

SHANTUI SD16

Make: Shangchai/Weichai
Model: SC11CB184G2B1/WD10G178E25
Rated Power: 120 kW @ 1850 rpm
Maximum Torque: 765 Nm @ 1300 rpm
Displacement: 10.5 L
Cylinder: 6-121 x 152 mm (bore x stroke)
Water cooled: Yes
Direct injection: Yes
Radiator: Enlarged tropical radiator

Make: SHANTUI
Torque converter: YJ380, 3-element, single-stage, single phase, ratio 2.3
Transmission: Planetary gear type, power-shift, forced lubrication
Main drive: Spiral bevel gear, single-stage speed reduction, splash lubrication, ratio 2.667
Steering clutch: Lubricated, multi-disc, spring-loaded, hand hydraulically seperated, inter-link- ing with steering brake
Steering brake: Lubricated, floating band structure, foot brake with hydraulic booster
Final drive: 2-stage speed reduction of spur gear, splash lubrication, ratio 16.66
Number of drive wheel teeth: 27

Ripper type: Parallelogram adjustable and removable 3-shank ripper
Maximum digging depth: 572 mm
Maximum lift above ground: 592 mm
Weight: 1667 kg

Fuel tank: 300 L
Engine coolant: 79 L
Engine oil: 45 L
Hydraulic tank: 108 L
Transmission case: 52 L
Steering case: 70 L
Final drive case: 23 L each side

Make: SHANTUI
Type: Sprayed beam, suspended structure of equalizer
Carrier rollers: 2 each side
Track rollers: 6 each side
Track type: Assembled, single-grouser track
Track shoe width: 510 mm
Grouser height: 60 mm
No. of track shoes: 37 each side
Pitch: 203.2 mm
Ground pressure: 0.072 Mpa

Rated pressure: 14 MPa
Pump type: Gear Pump
Flow rate: 213 L/min
Blade lift cylinder: ?110 mm?2
Blade tilt cylinder: ?160 mm?1
Ripper cylinder: ?160 mm?1

ROPS & FOPS: YES
A/C: YES
Adjustable air suspension seat: YES
Seat belt: YES
Strobe light: YES
Fire extinguisher: YES, SABS Standard
Engine oil pressure meter: YES

Overall length: 6104 mm
Overall width: 3388 mm
Overall height: 3032 mm
Ripper overall width: 2080 mm
Machine width (Blade off): 2390 mm
Machine length (Blade off): 5500 mm
Min. ground clearance: 400 mm
Min. turning radius: 4.5 m
Gradeability: 30?
Track Gauge: 1880 mm
Operating weight: 17 ton

Batteries: 2 x 12 V-165 Ah
Starter Motor: 5.4 kW
Alternator: 27 A
