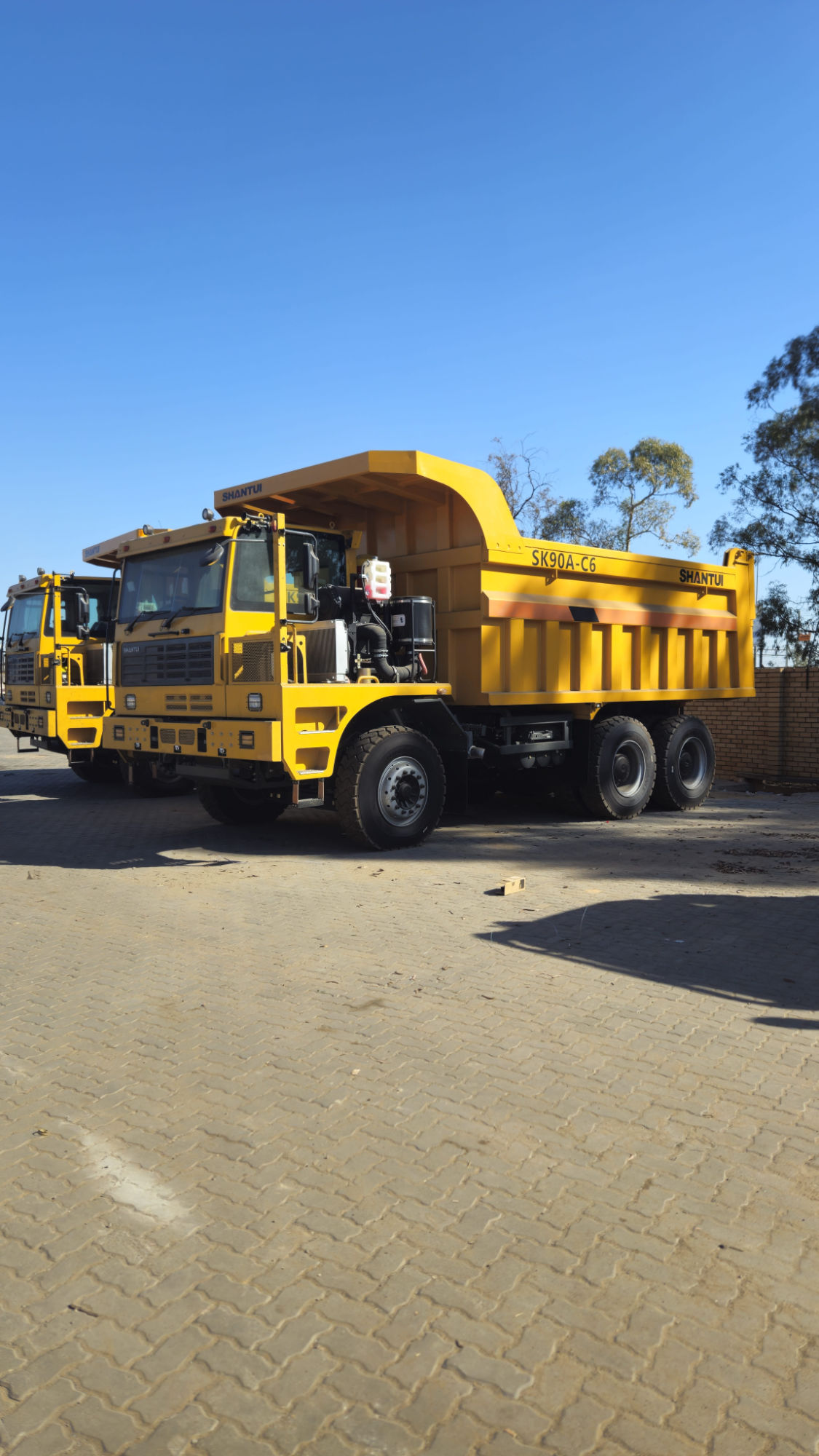

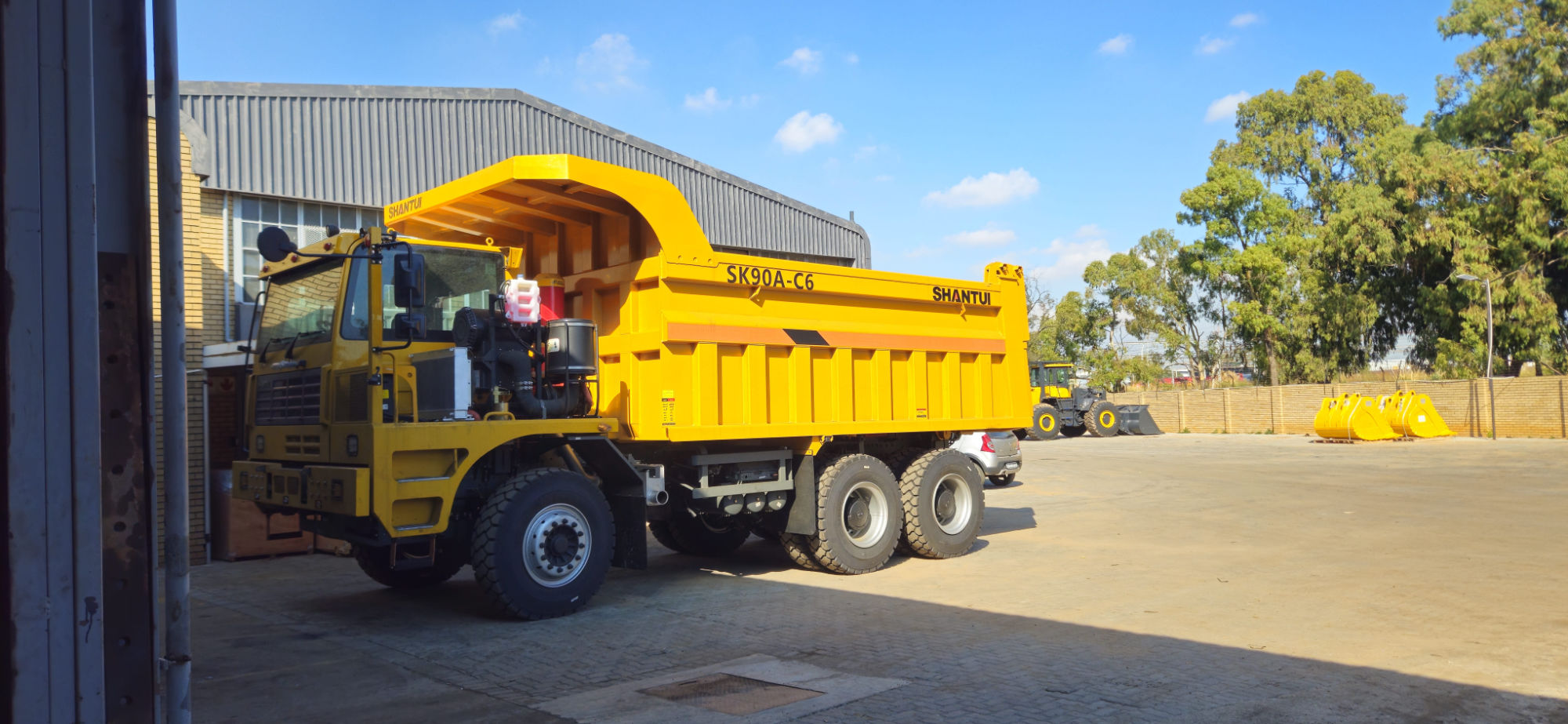

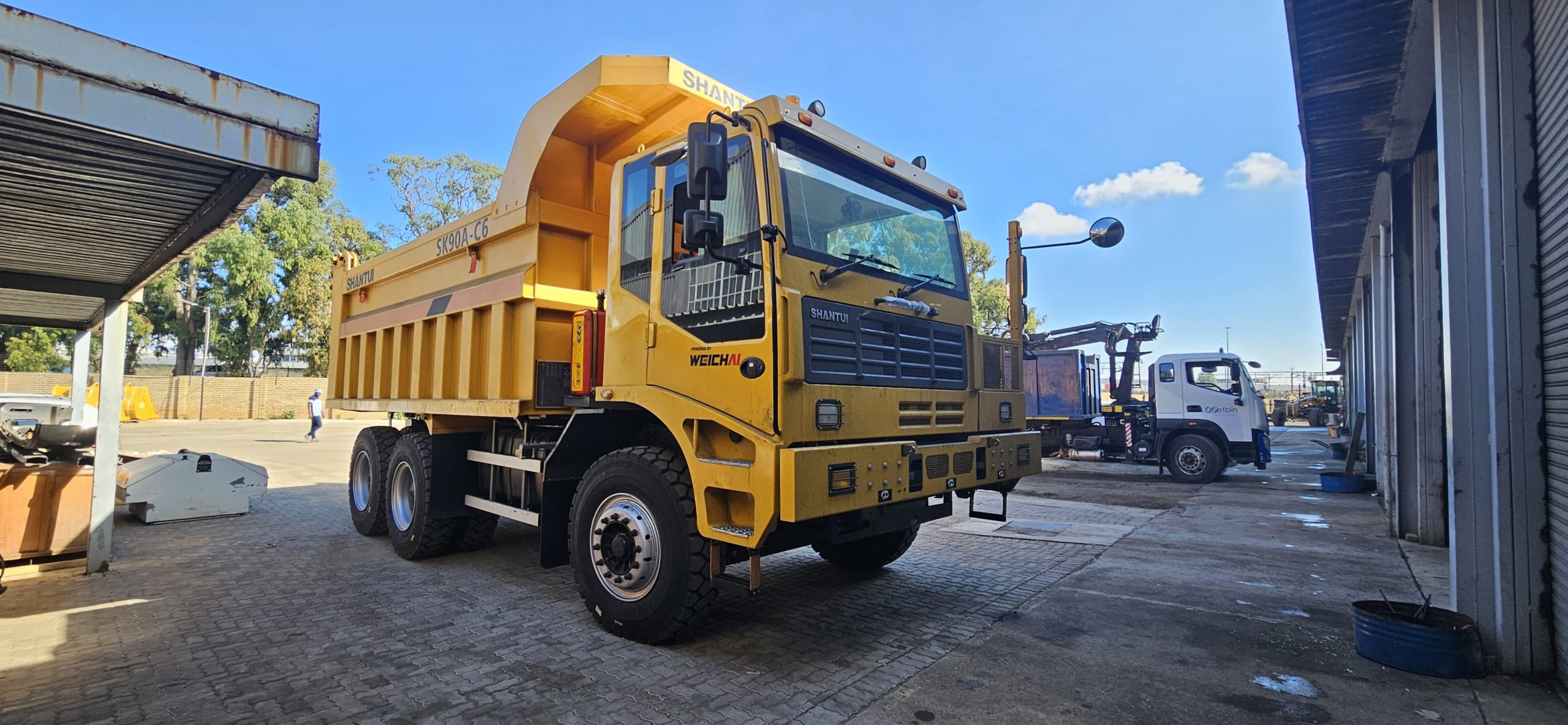

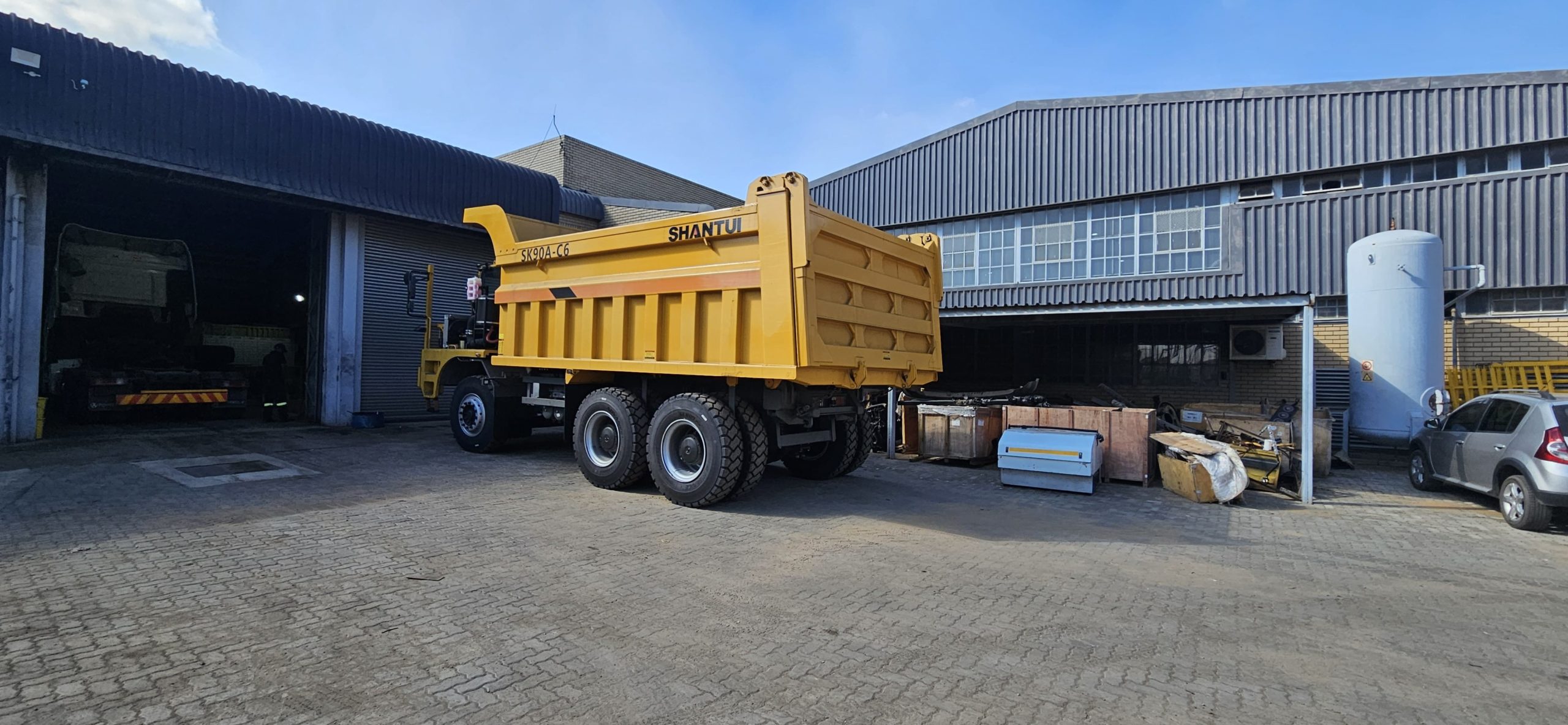

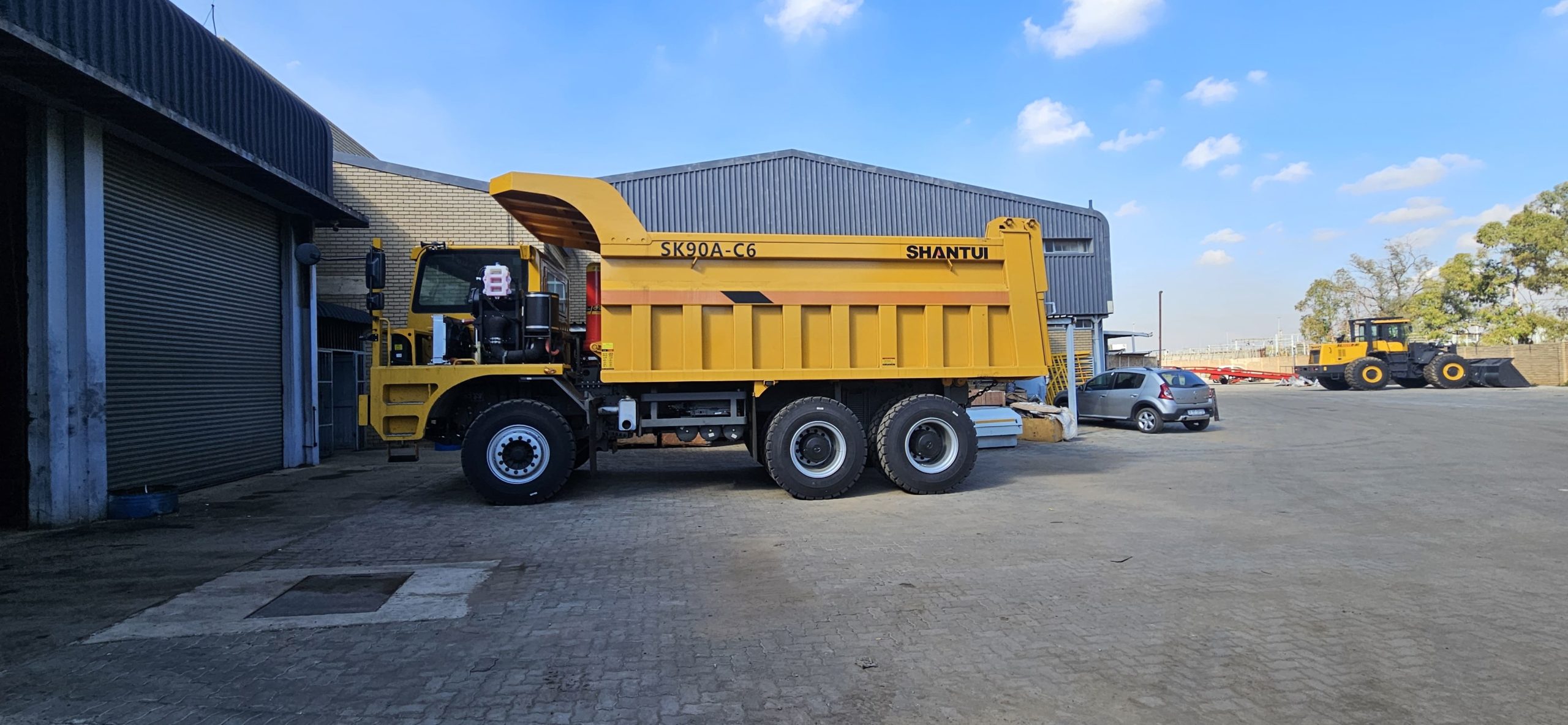

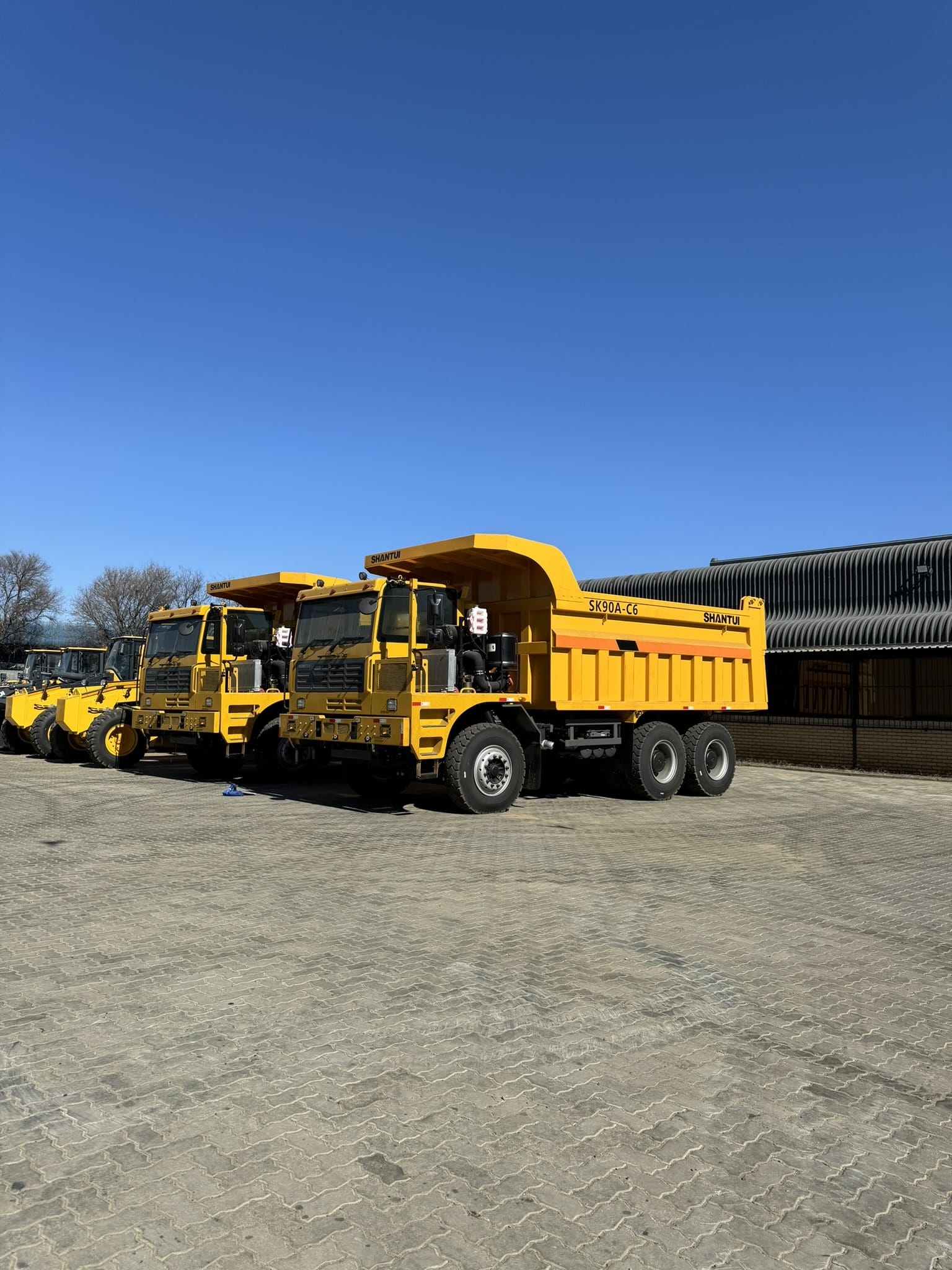

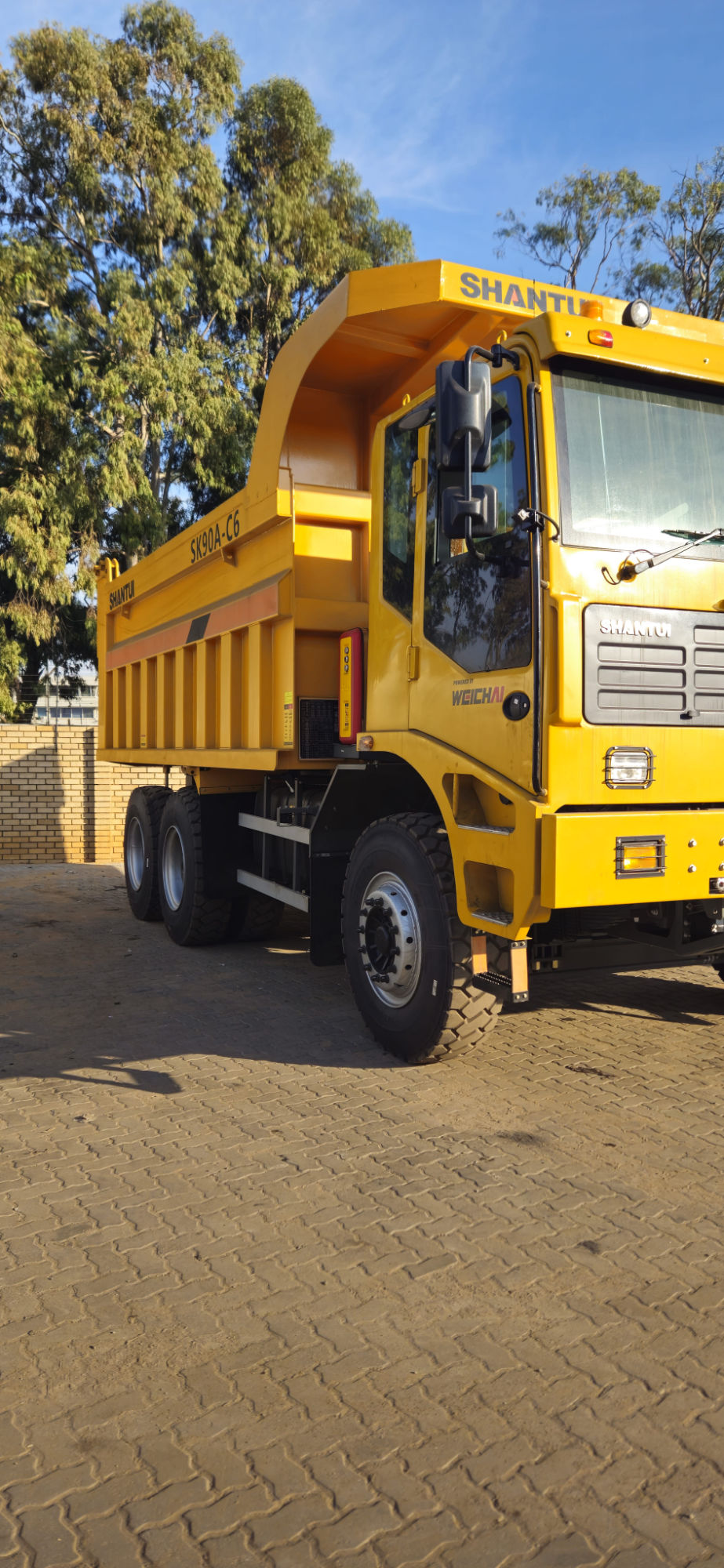

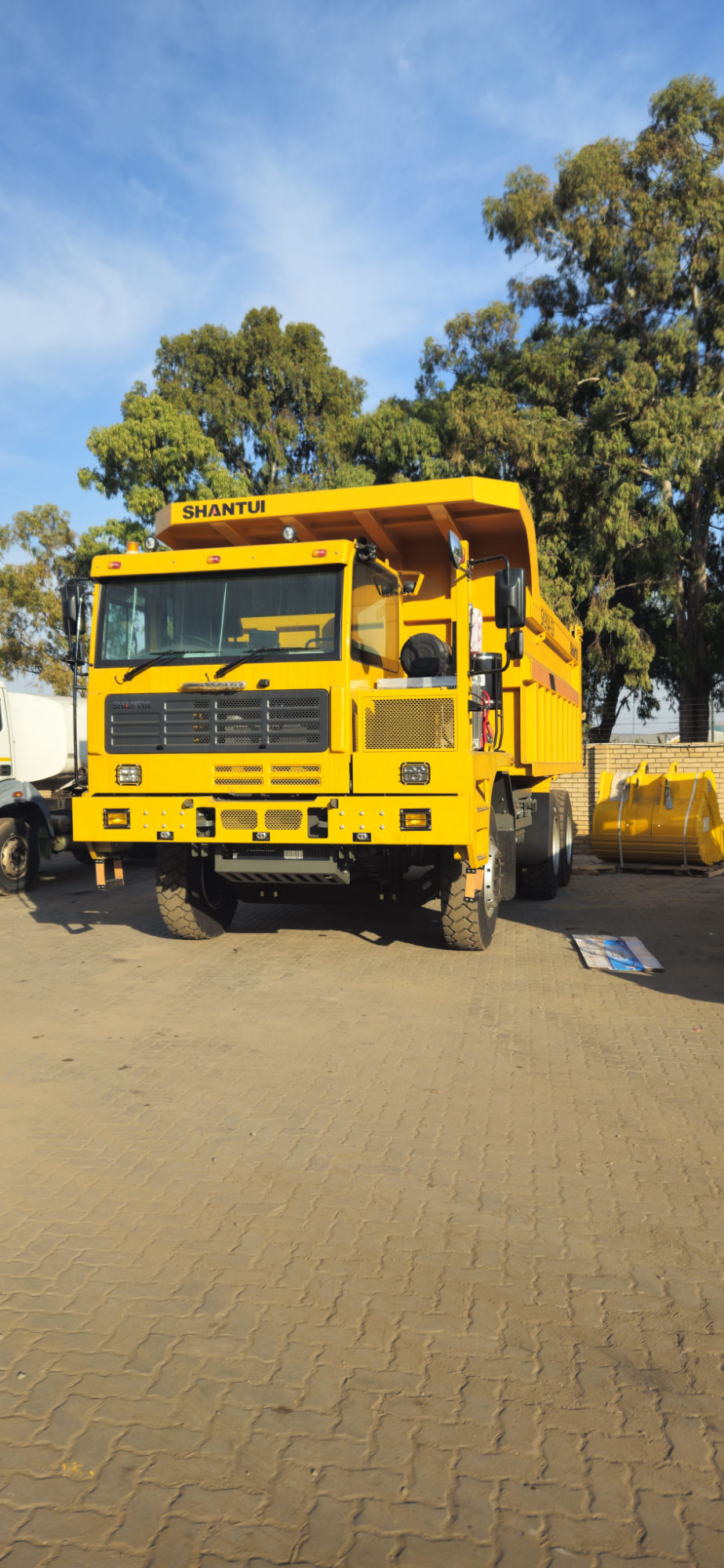

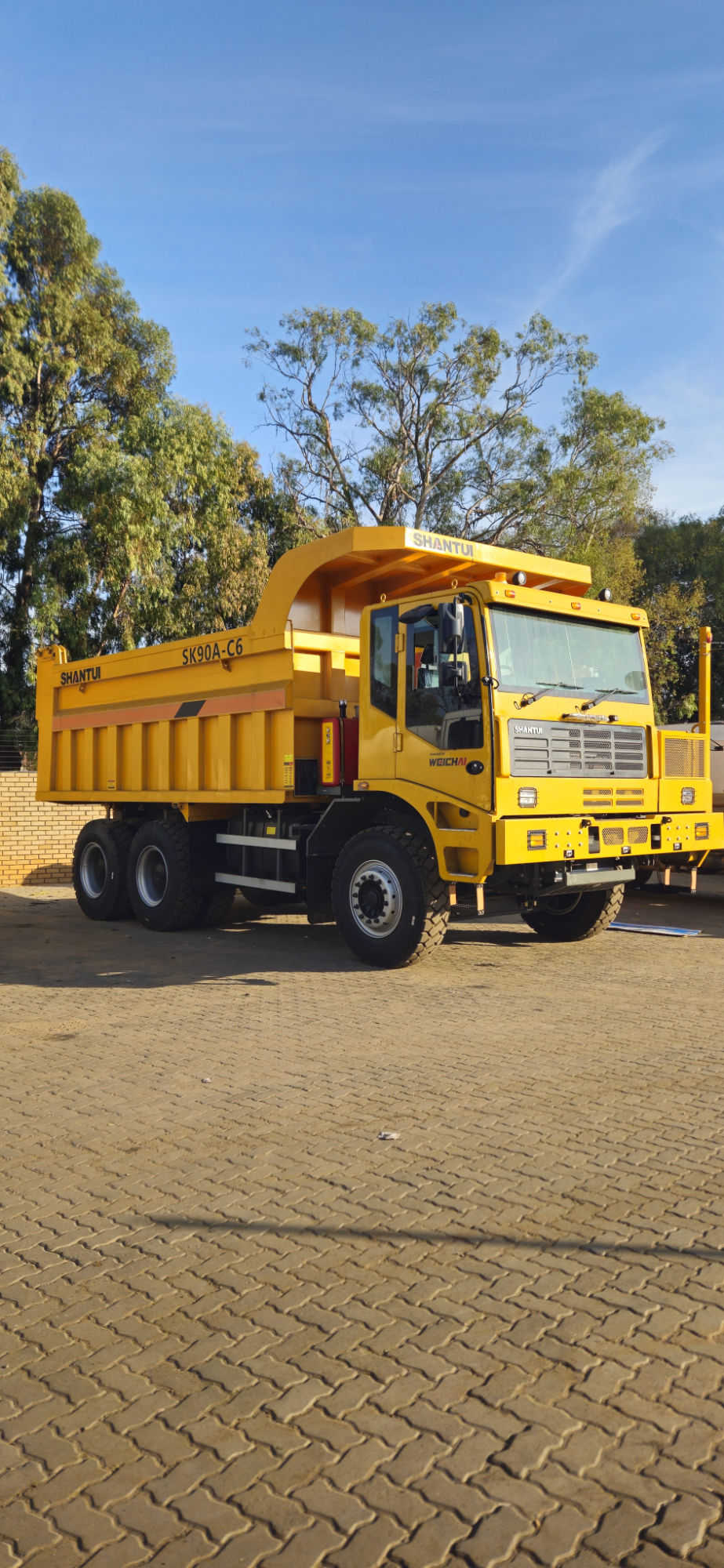

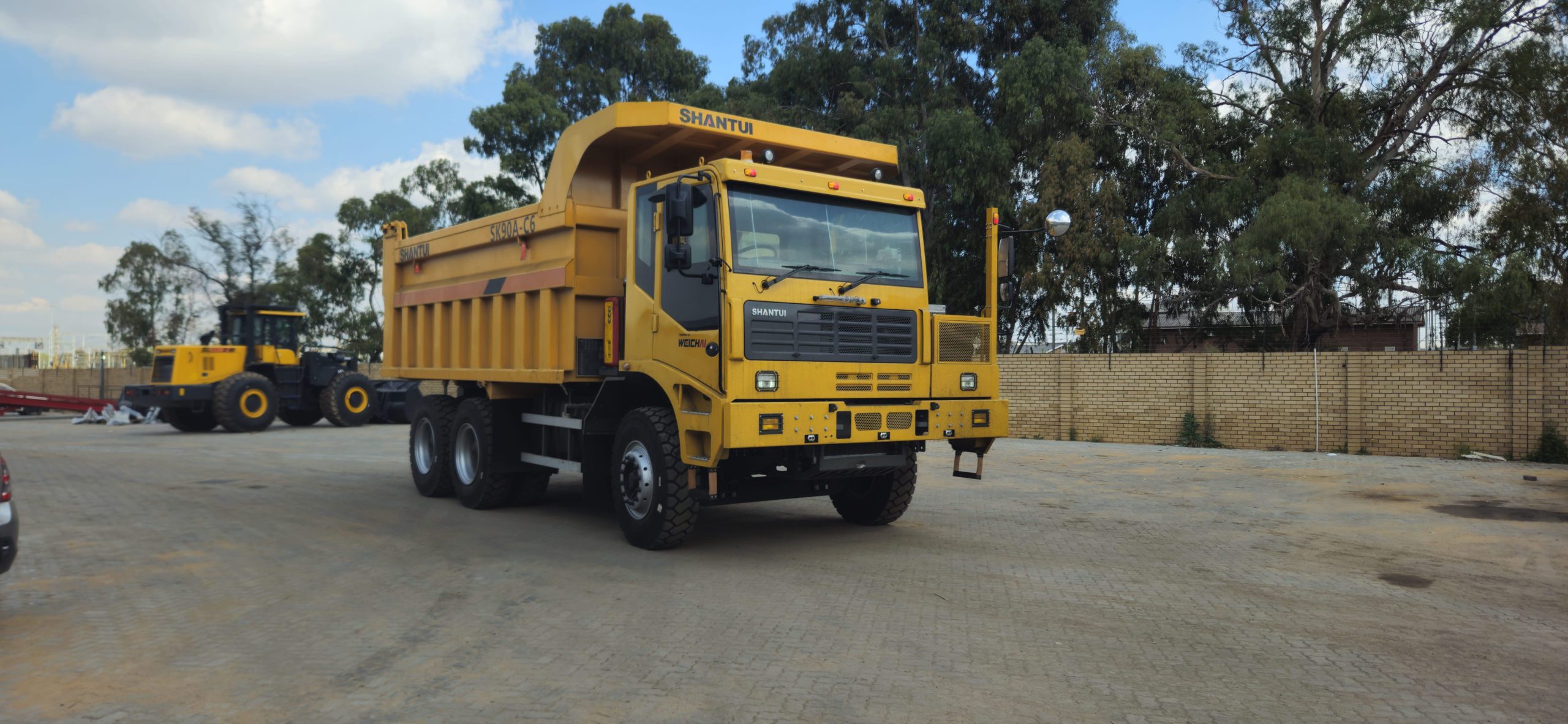

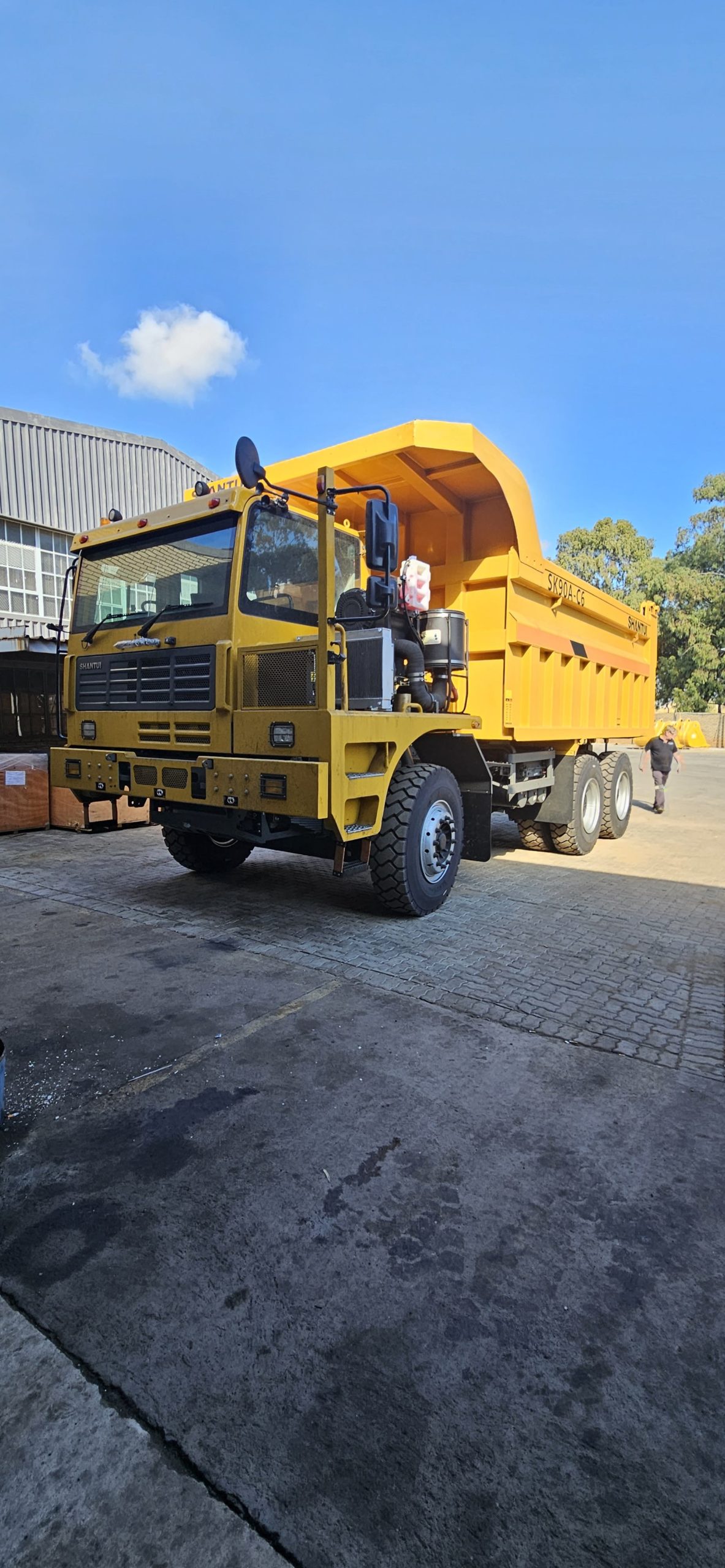

Shantui SK90A-C6 Dump Truck

VEHICLE PARAMETERS

Total mass(kg): 90000
Curb weight(kg): 30000
Load capacity(kg): 60000
Length x Width x Height(mm): 9050×3550×4050
Drive type: 6×4
Case volume(m³)(SAE2:1): 32/40
Axle distance(mm): 3800+1550
Wheelbase(mm): 2606(Front2712)
Max-speed(km/h): 45
Gradeability(%): 30
Min turning diameter(m): 22
Ground clearance(mm): 380

AXLE LOAD

Fully loaded(t): 20/35/35

ENGINE

Model: WP12G460E310(III)
Power/Speed(kW r/min): 338/2100
Torque/Speed(N*m /rpm): 2000/(1200-1600)

GEARBOX

Model: FC6A210

DRIVE AXLE

Type: Central and wheel side planetary double-stage speed reduction with inter-axis differential lock
Rated axle load(kg): 35000

AIR FILTER

Type: Electric multi-stage dust air filter

RADIATOR

Structure: Plate-fin radiator

FUEL SYSTEM

Capacity(L): 600L

STEERING SYSTEM

Power steering: Hydraulic power steering, hydraulic cylinder assist
System pressure(MPa): 17
Flow(L/min): 25

BRAKING SYSTEM

Service brake: Double circuit drum air brake
Parking brake: Spring energy-storage shut-off brake and emergency brake
Auxiliary brake: Engine exhaust brake + WEVB
System pressure(bar): 10
Standing slope(°): 30(Uphill)/20(Downhill)

SUSPENSION

Front suspension: Longitudinal leaf spring
Leaf spring thickness/width/number: 20/100/13
Rear suspension: Leaf spring balanced suspension
Leaf spring thickness/width/number: 29/100/15

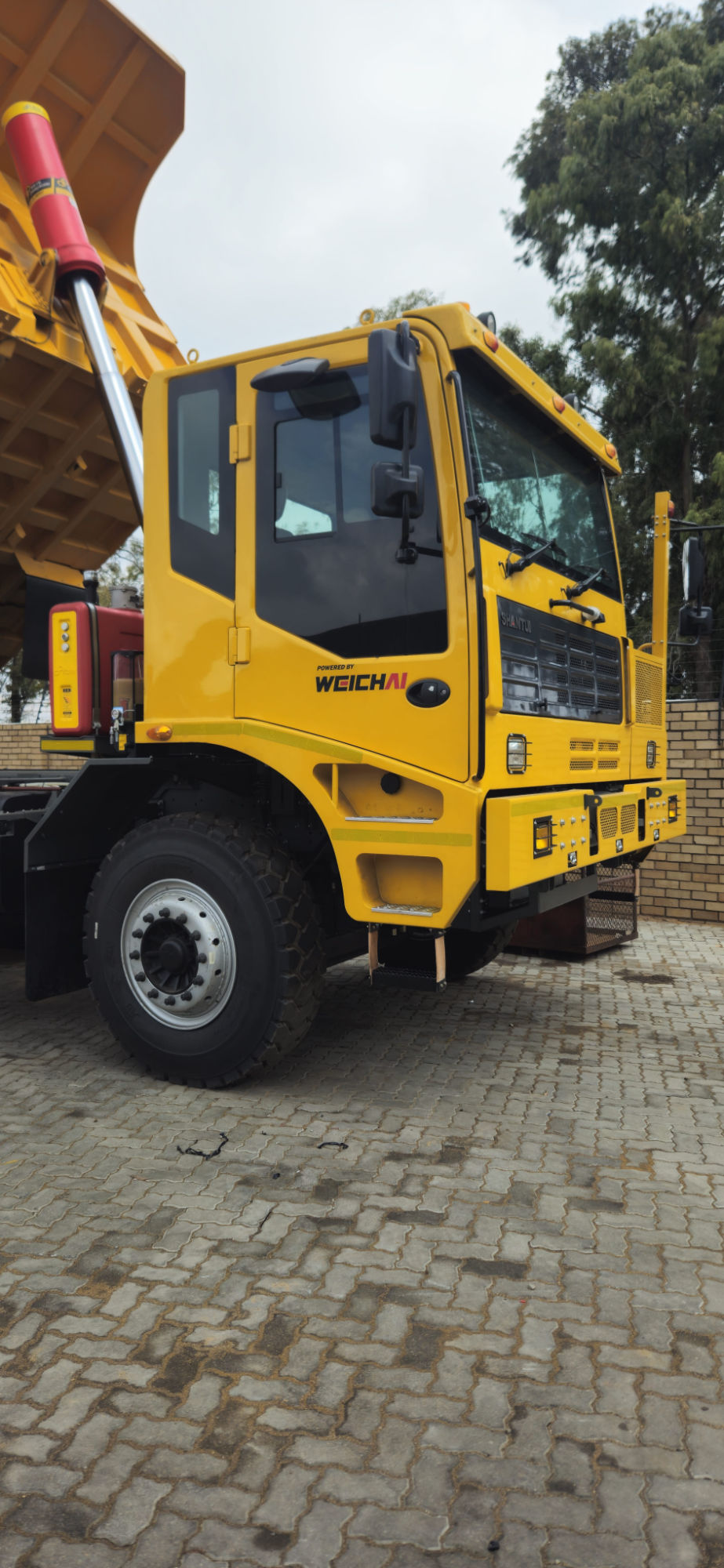

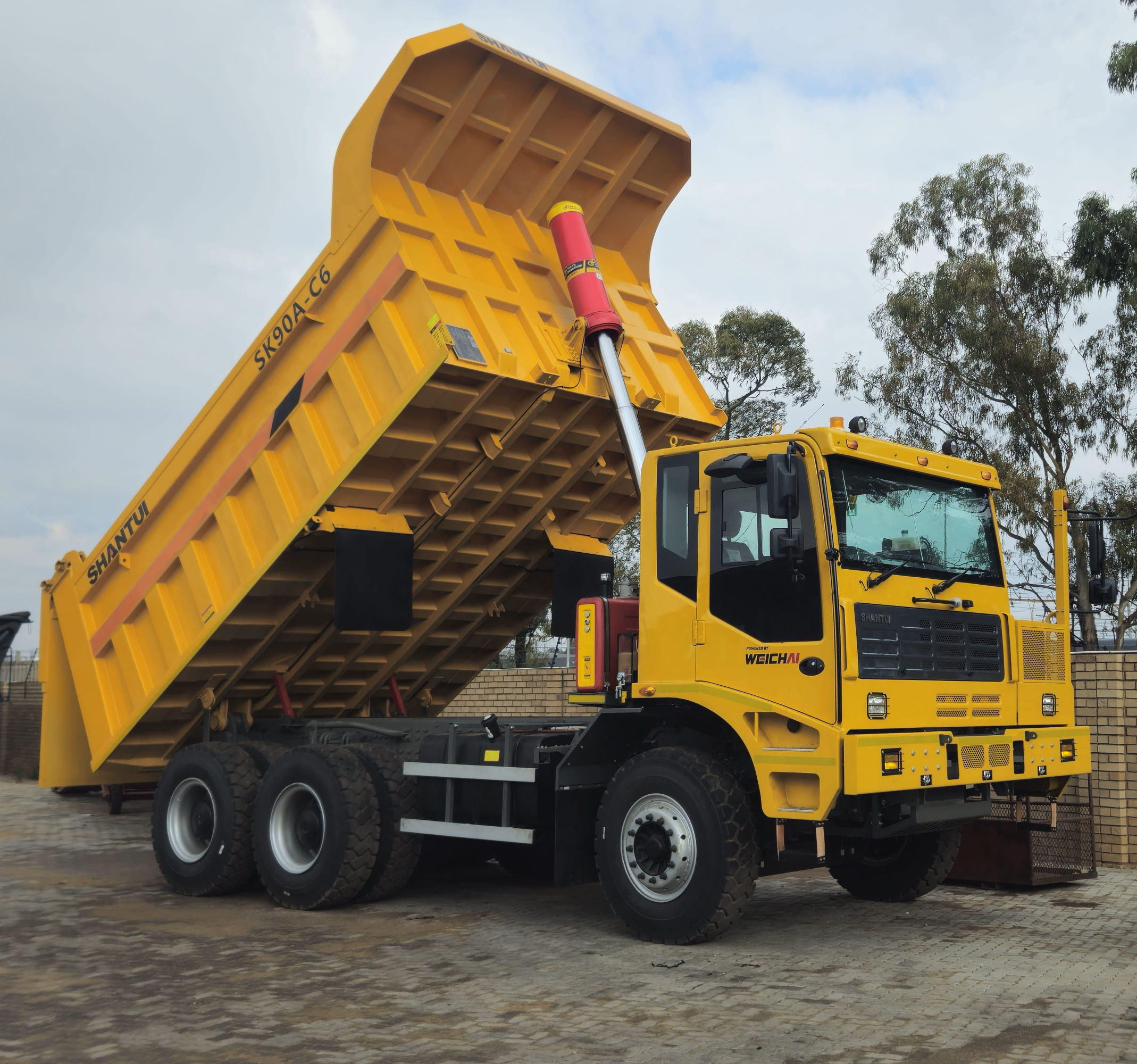

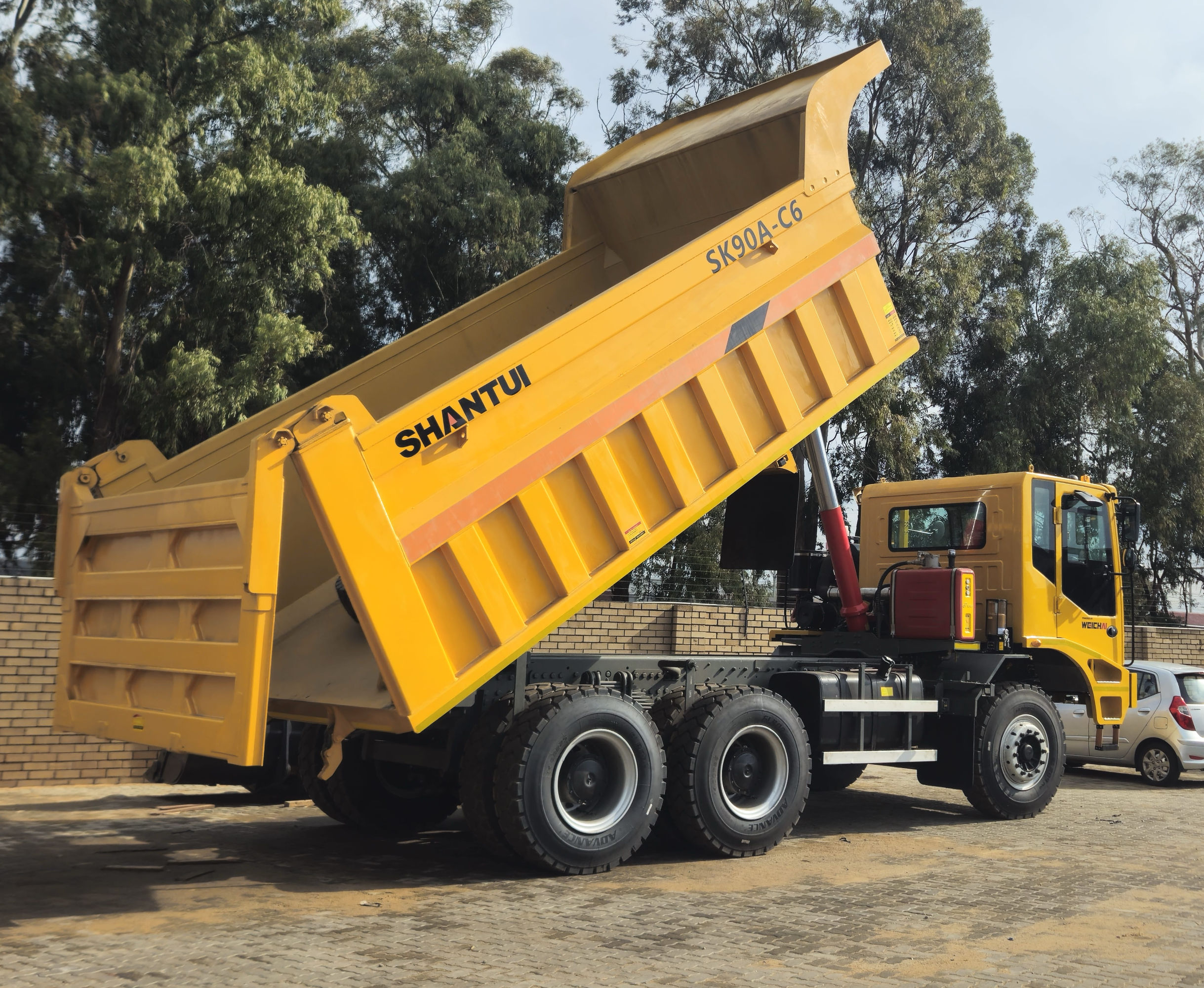

DUMP LIFTING MECHANISM

Cylinder diameter: 196

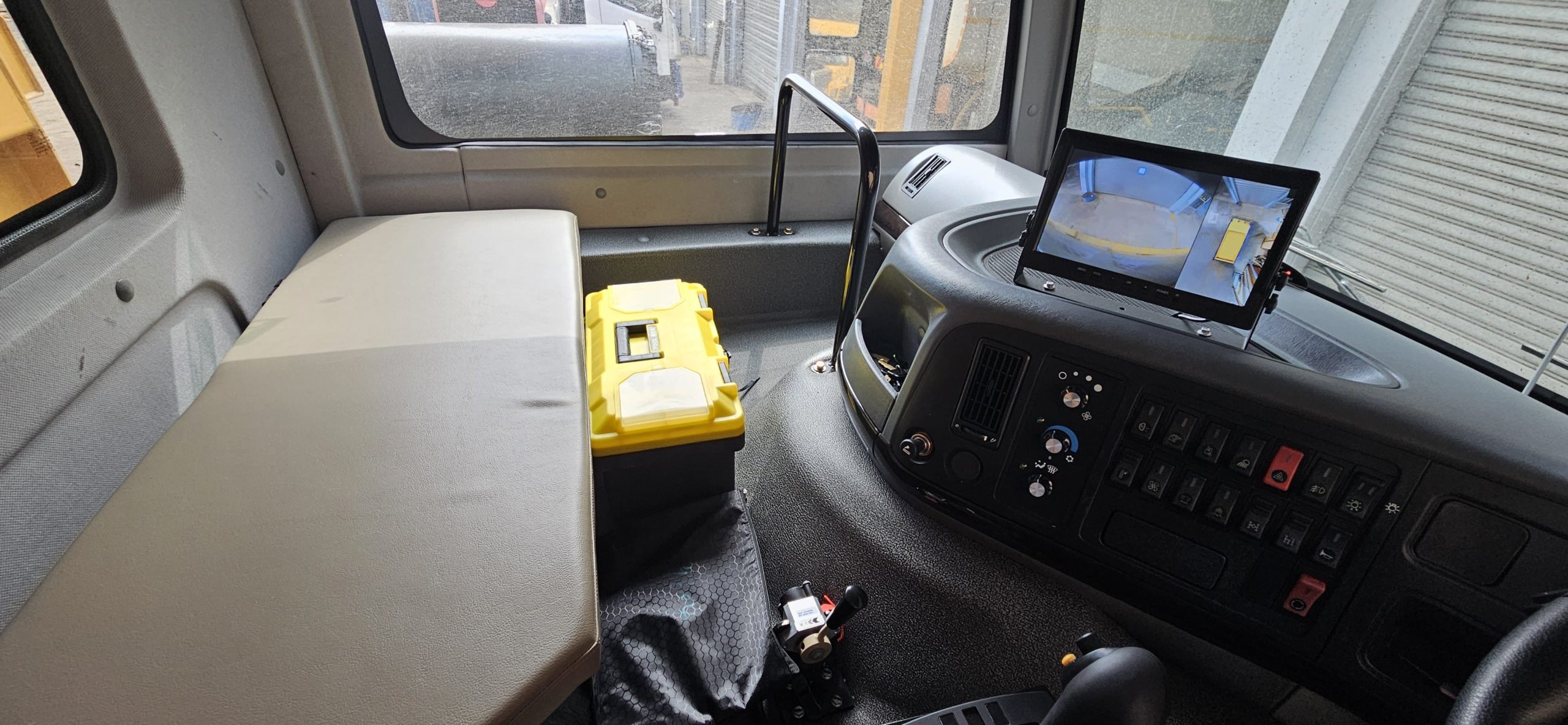

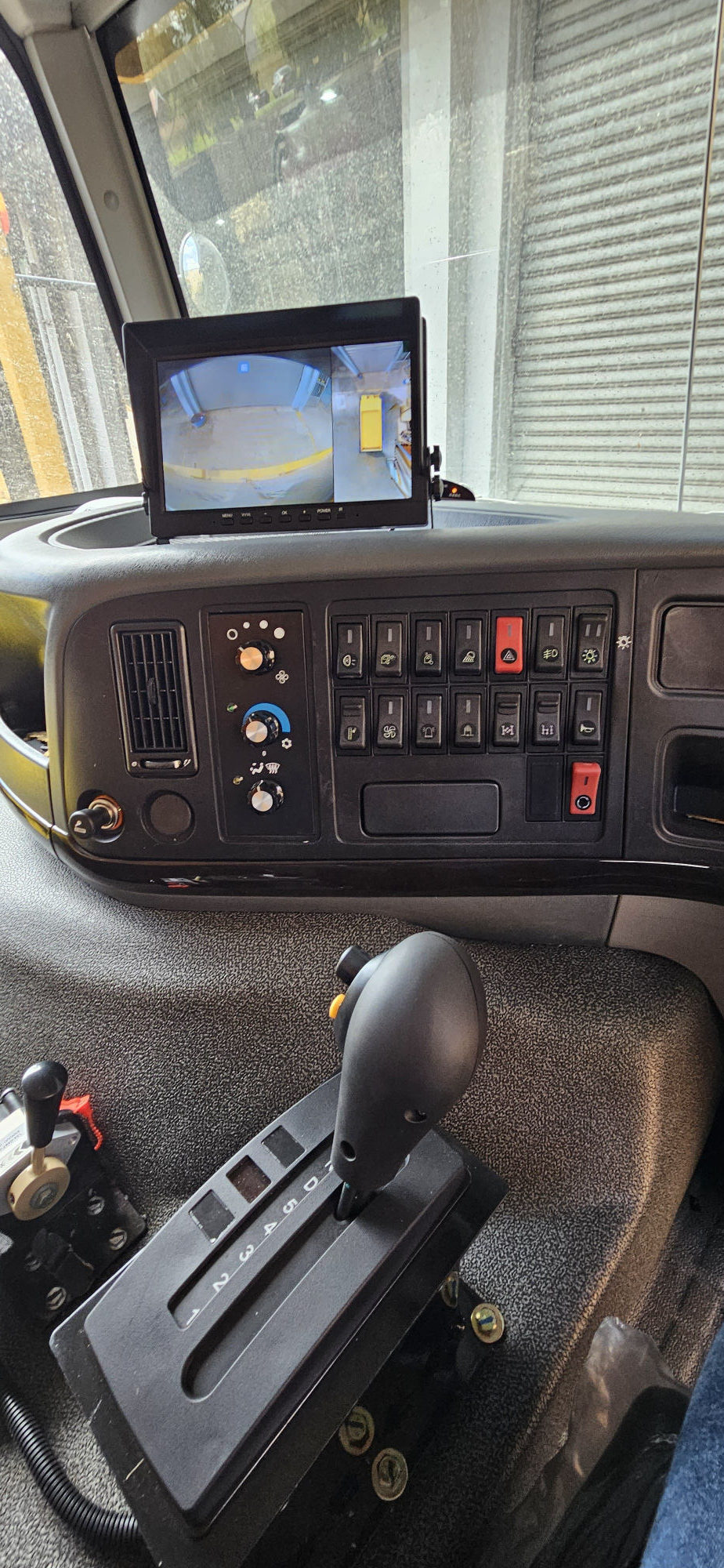

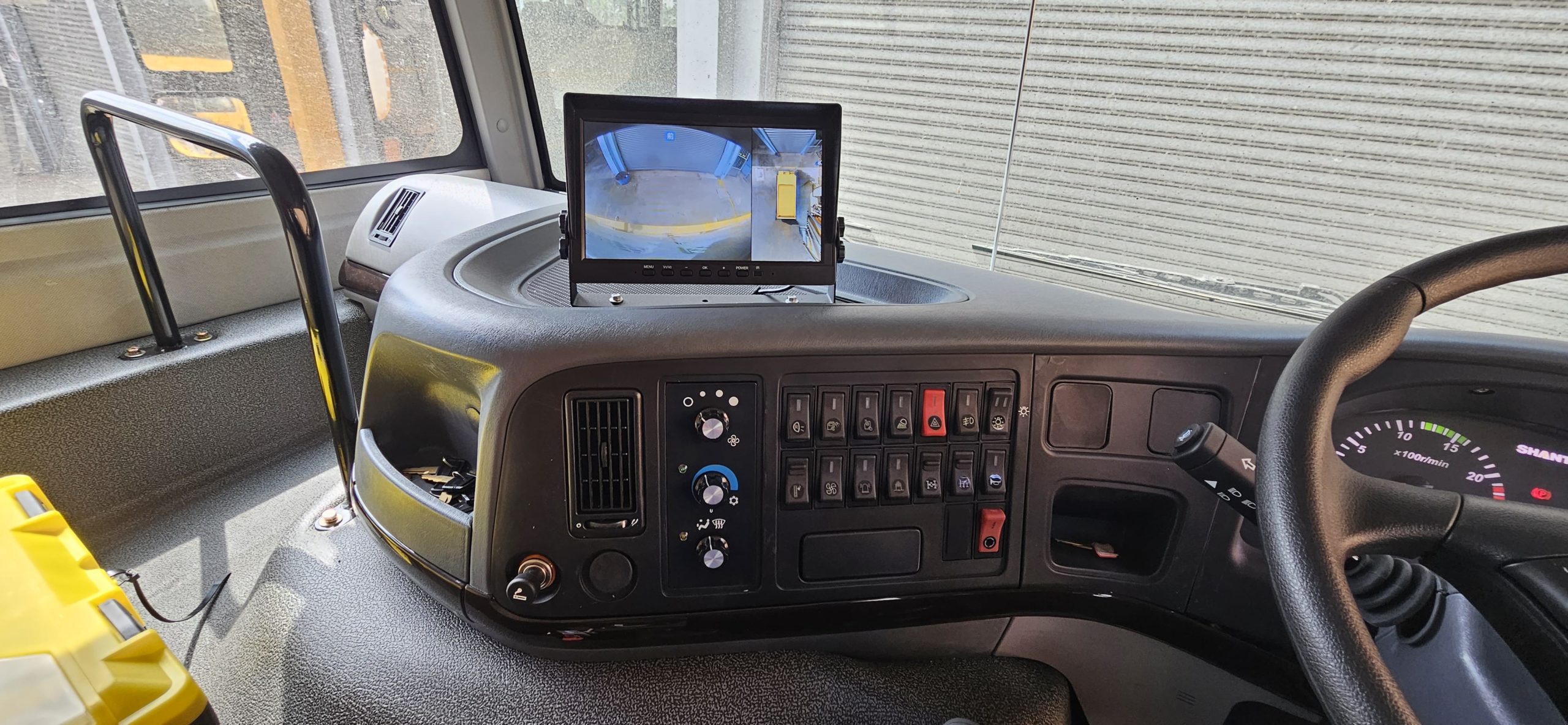

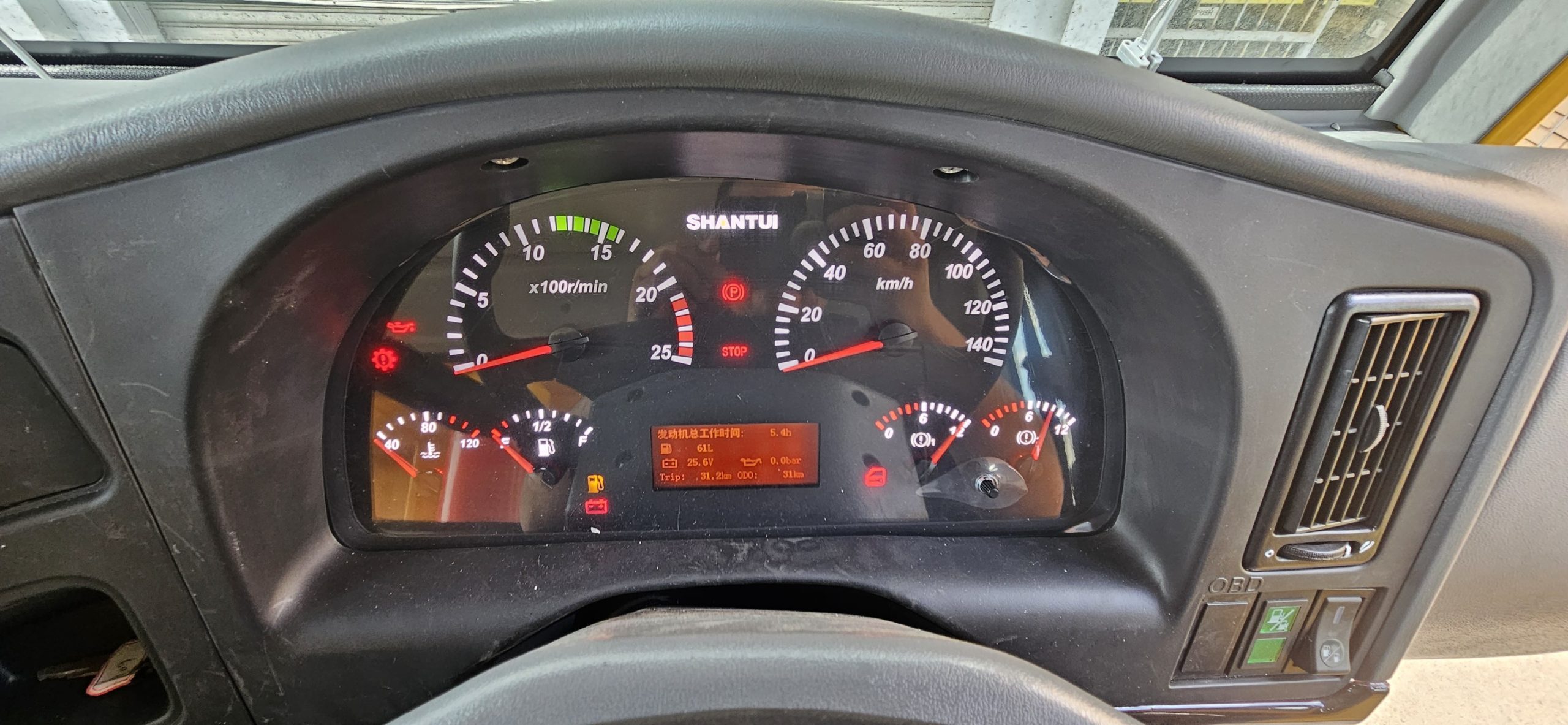

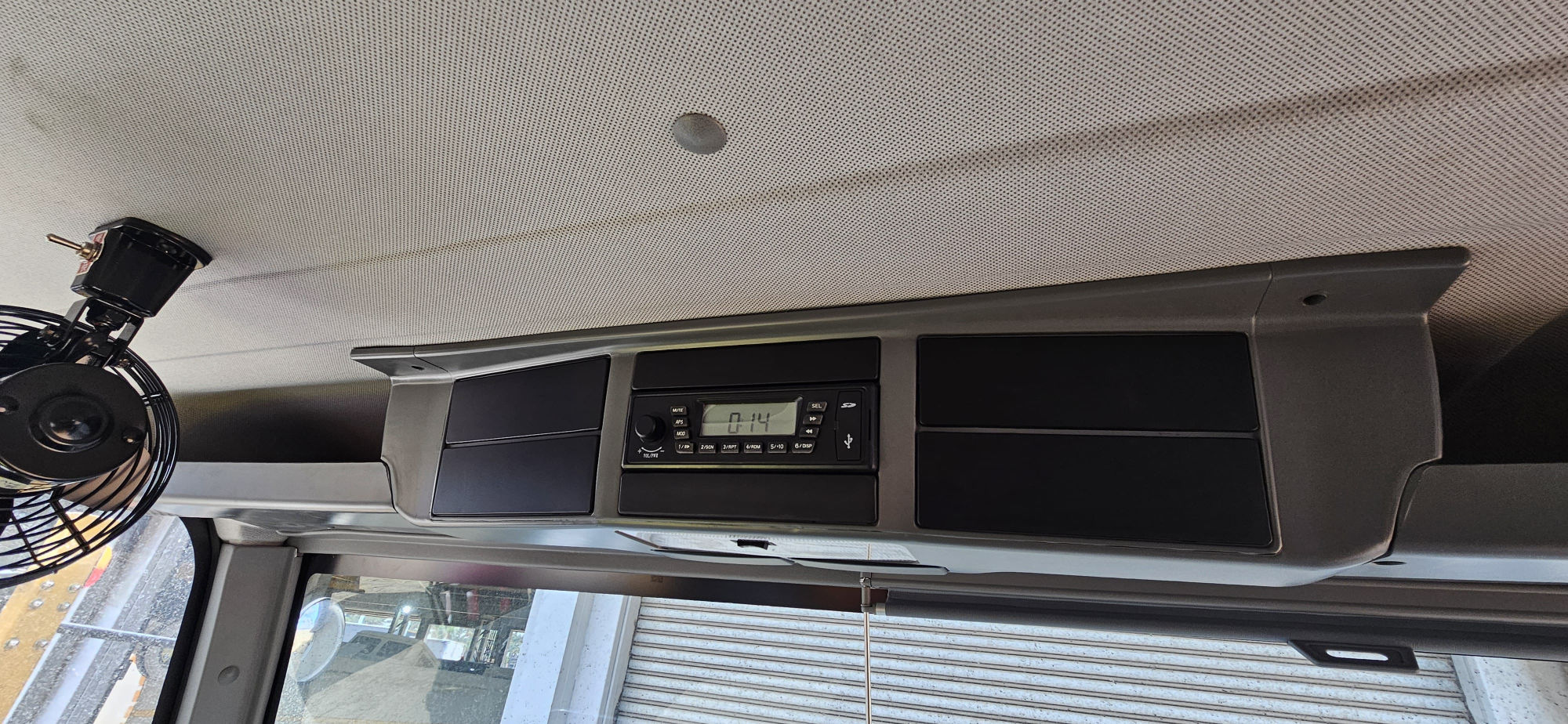

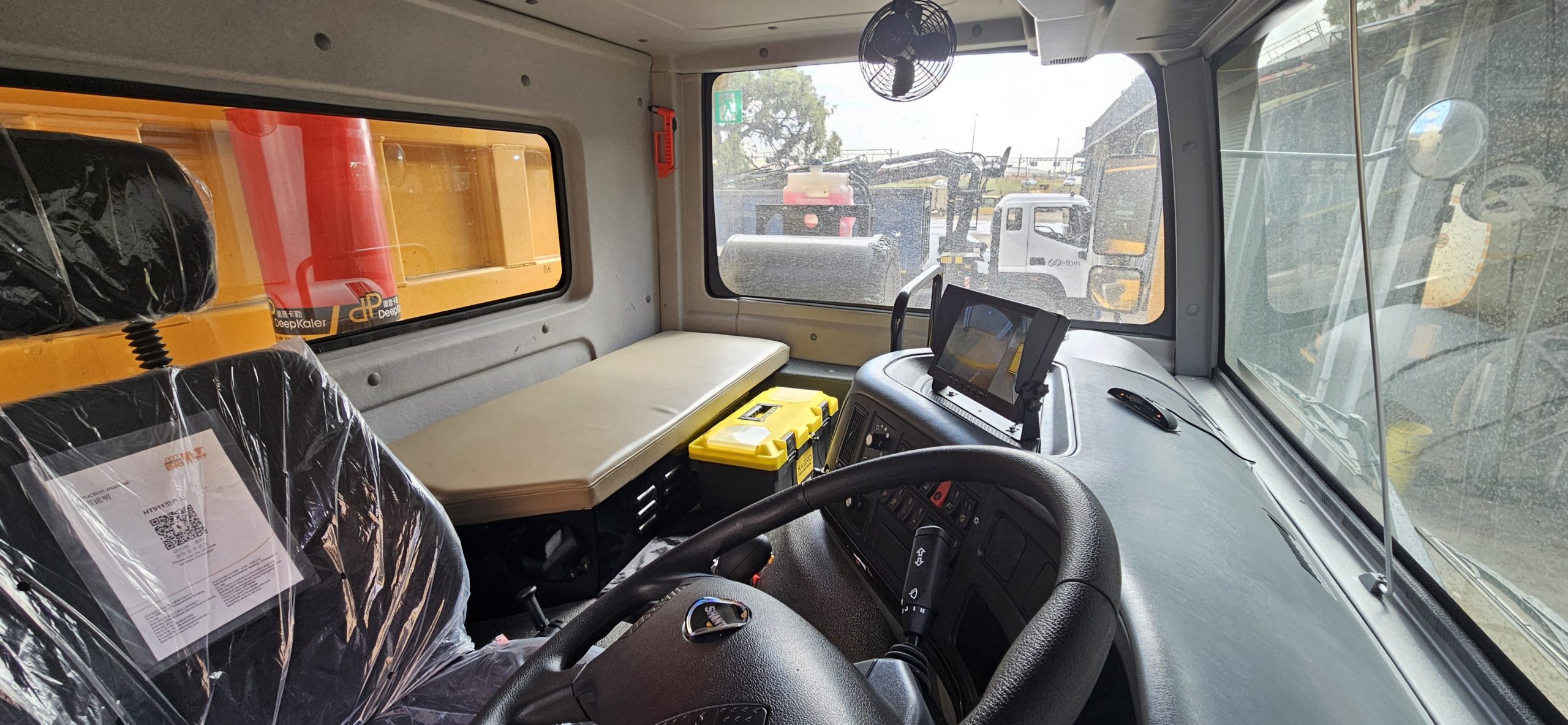

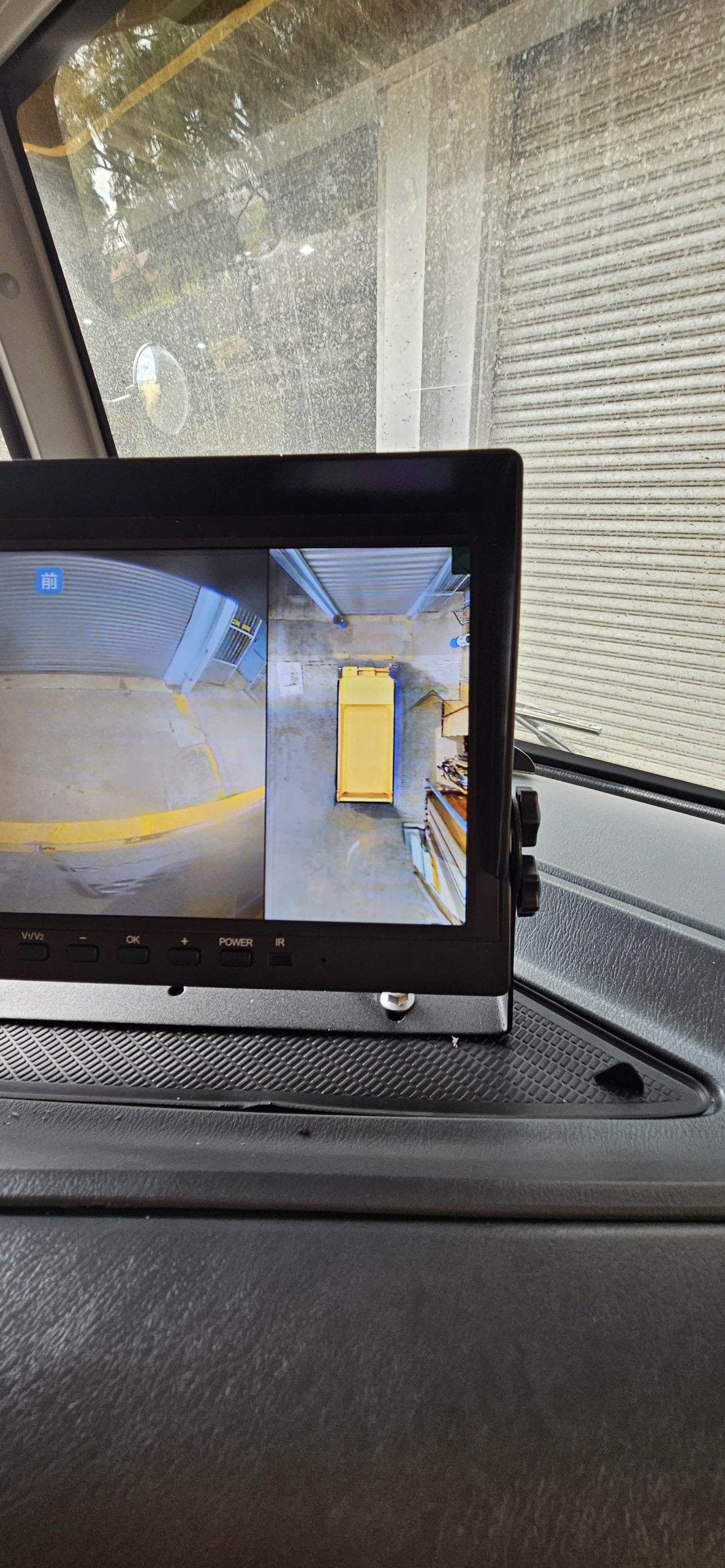

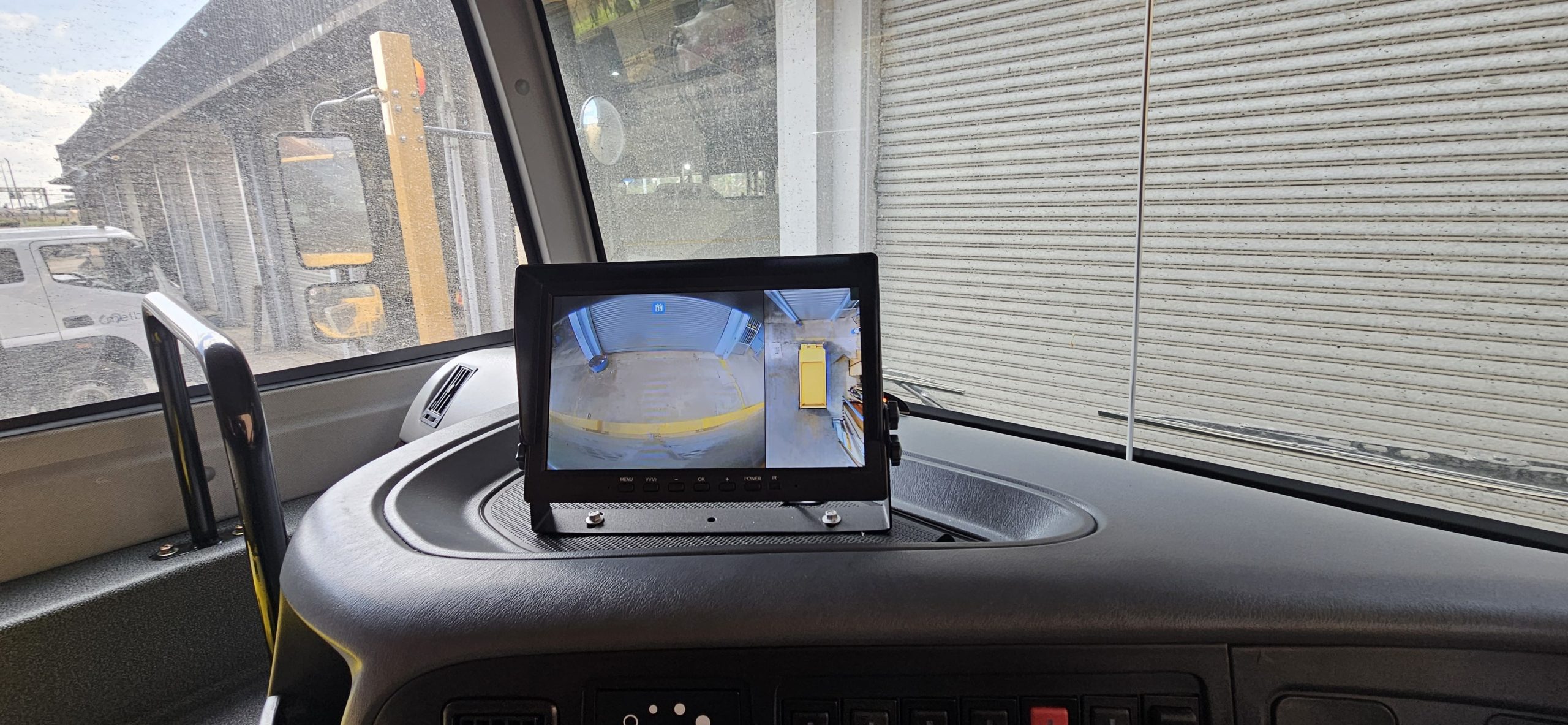

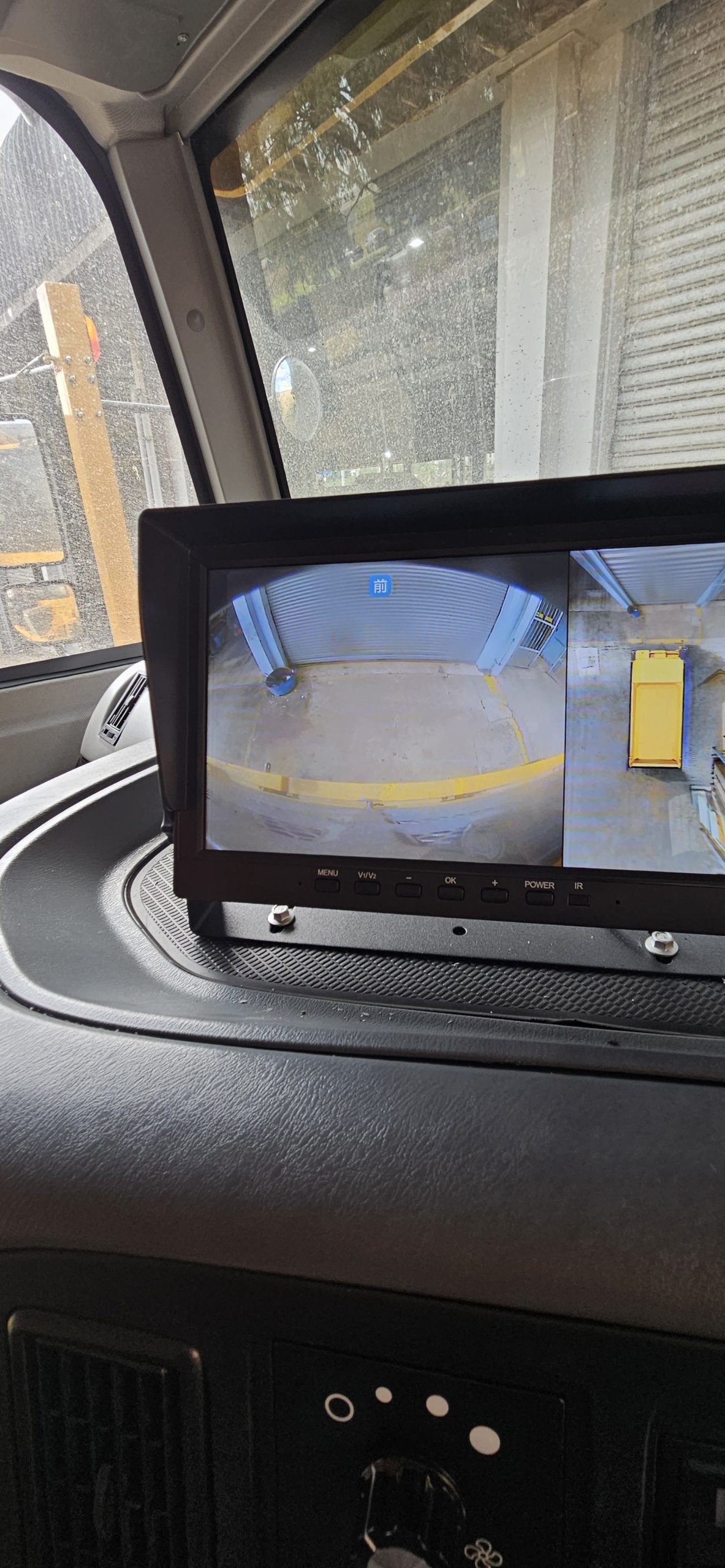

CAB

Type: Single side left, semi-floating, forward 46°
Damping seat: Adjustable up and down, front and rear, adjustable backrest angle

FRAME

Type: High-strength steel flexible frame(12+12)

WHEEL

Tyre model: 14.00-25
Rim model: 10.00-25
