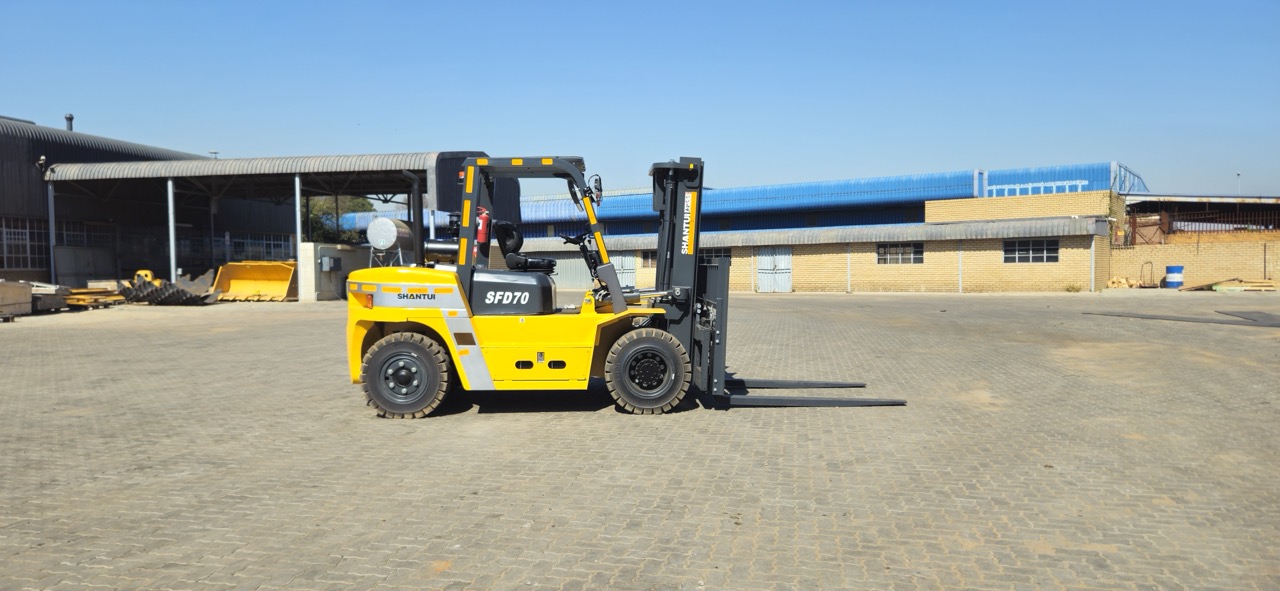

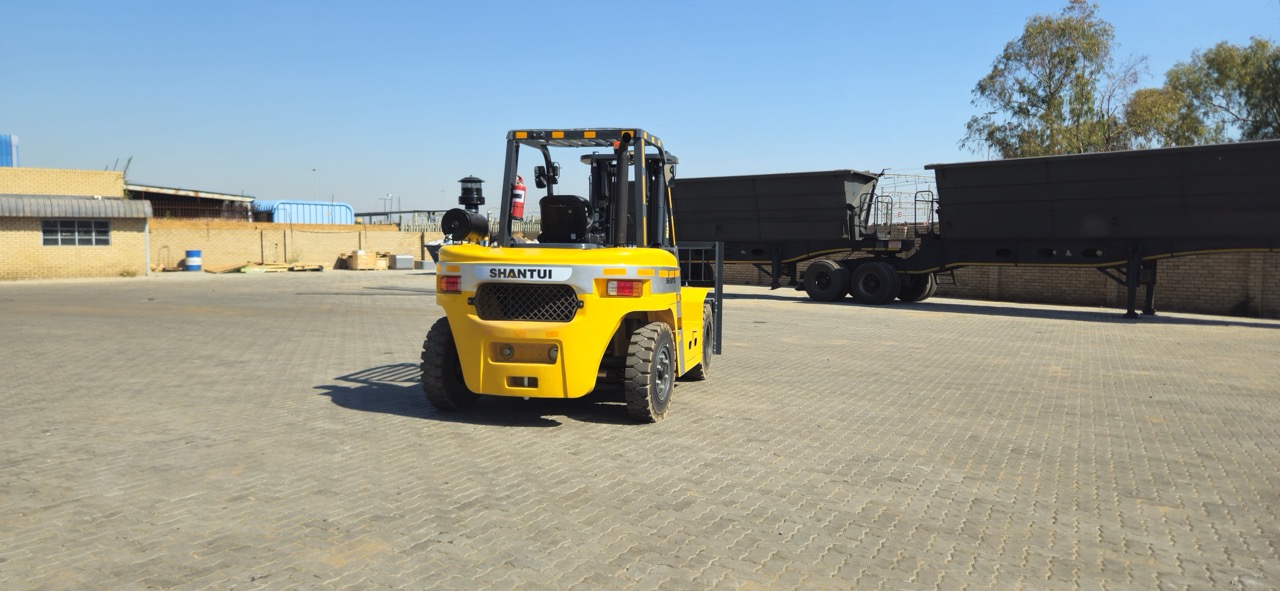

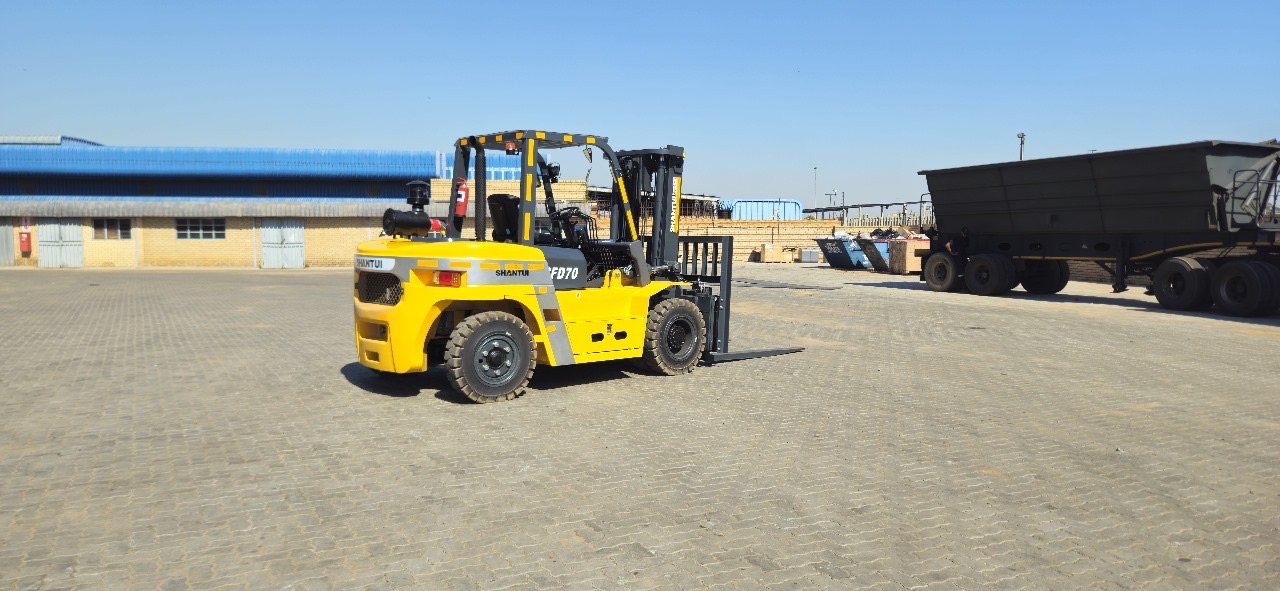

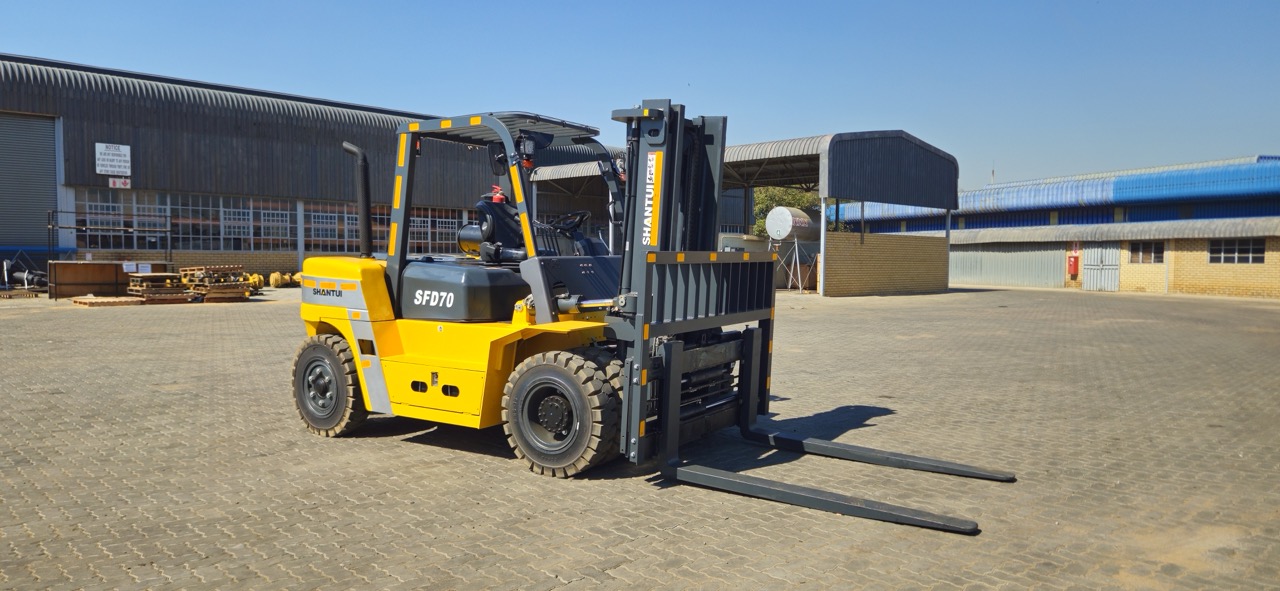

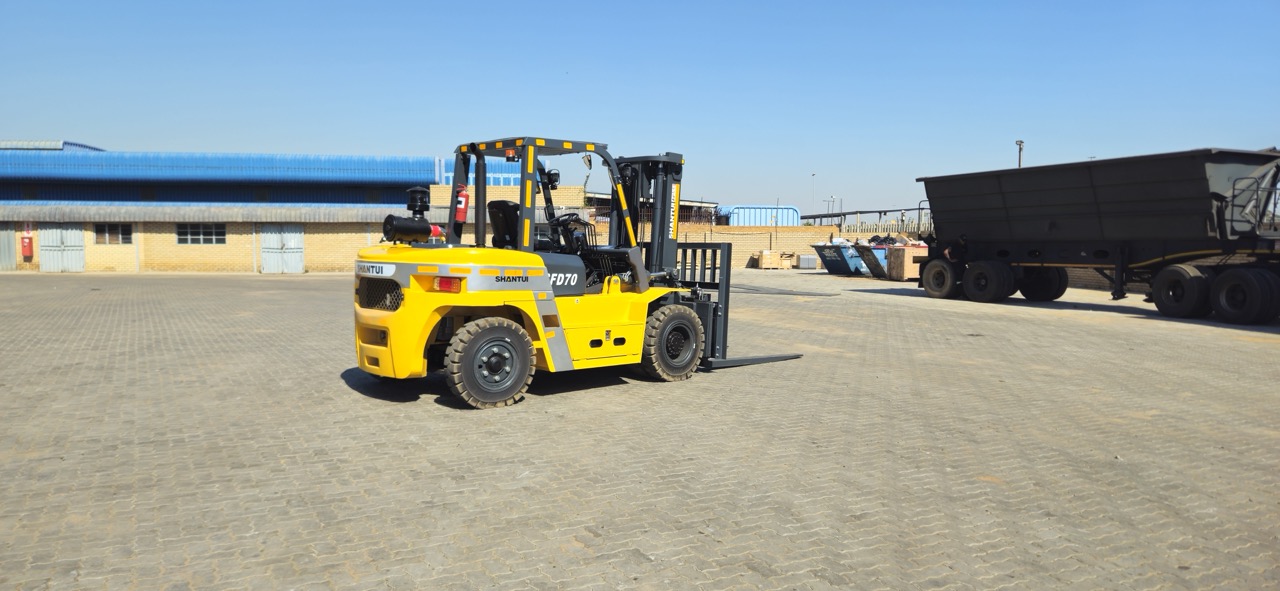

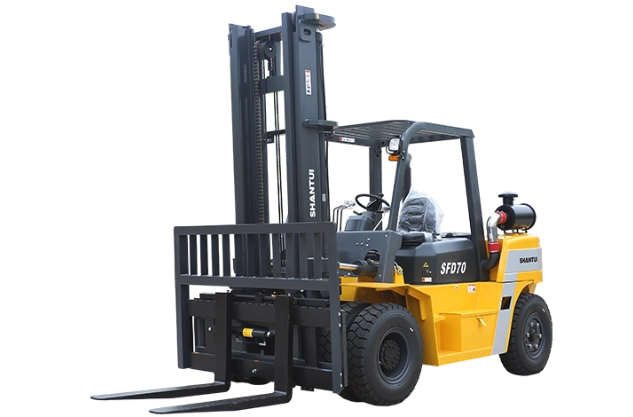

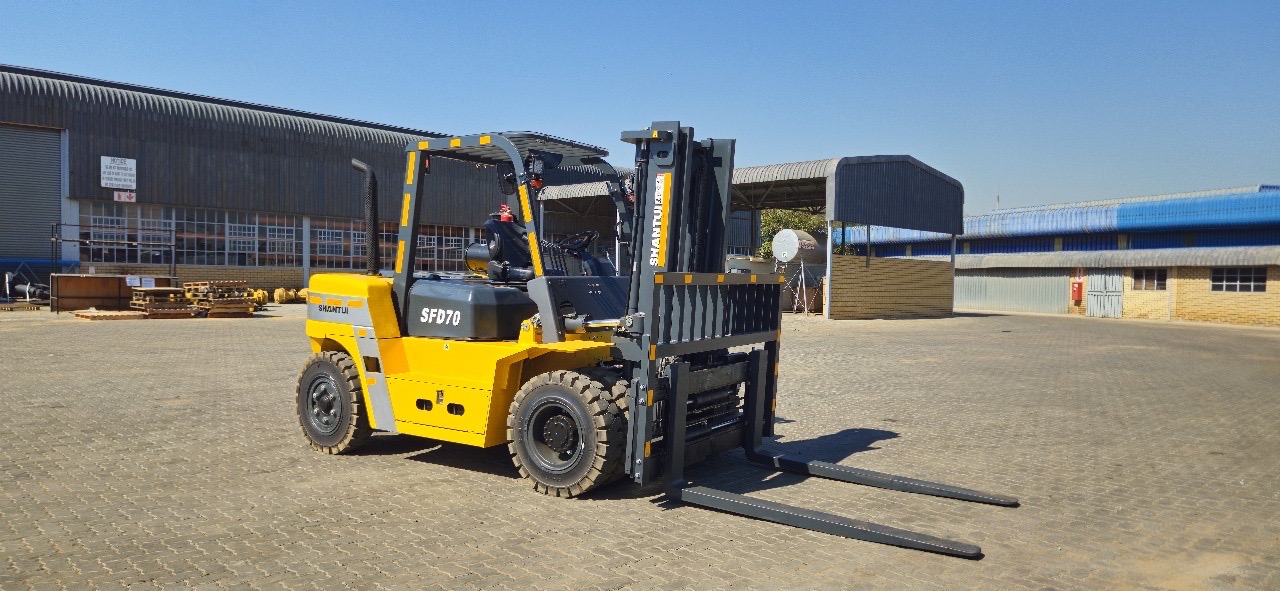

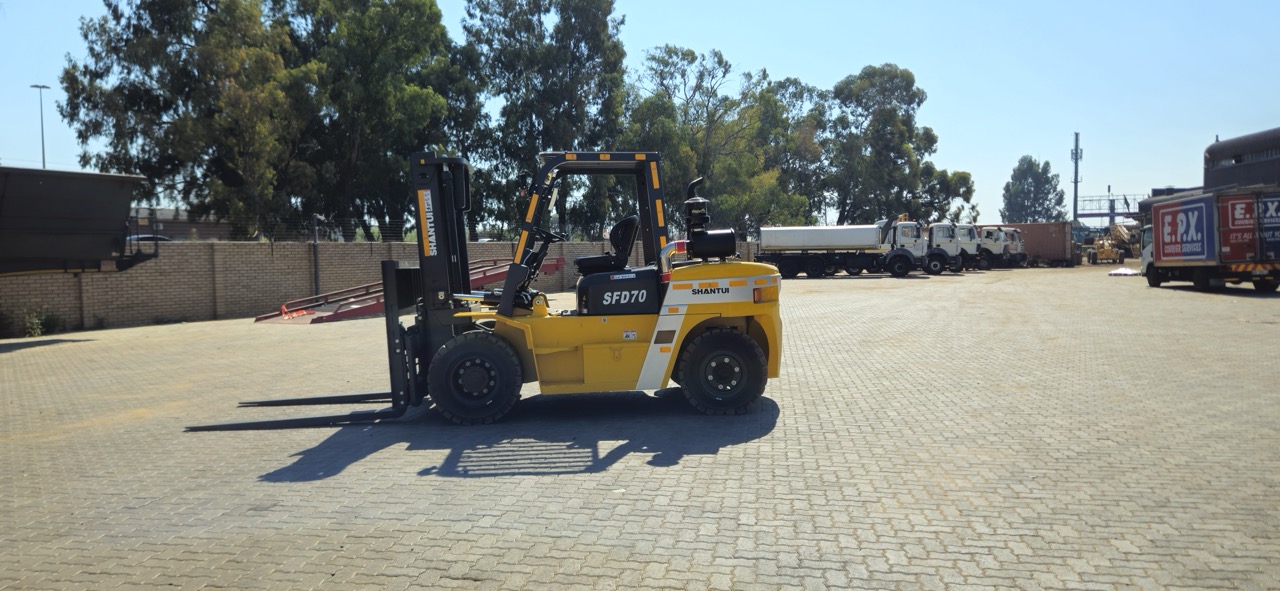

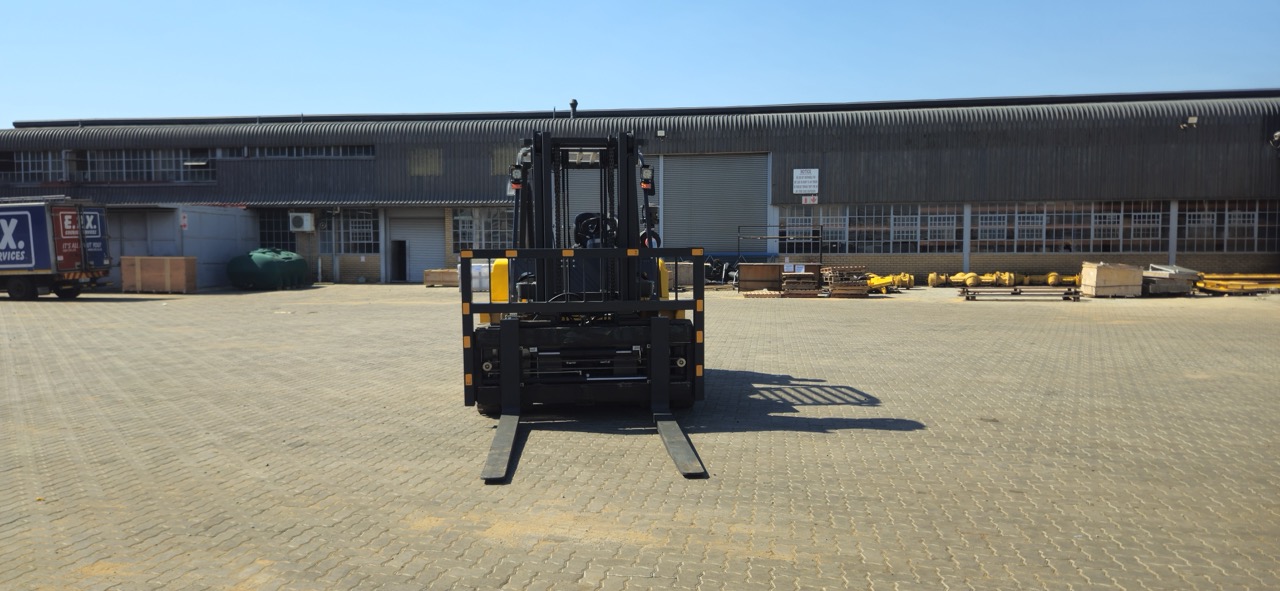

SHANTUI SFD70

ENGINE

Power type: Diesel
Make: Weichai
Model: WP4.1G125E302
Emission Regulation: Tier 3 / Stage III
Rated Power: 92 kW @ 2200 rpm
Displacement: 4.09 L
Number of Cylinders: 4
On-board Voltage: 24 V

PERFORMANCE

Drive Speed Laden/Unladen: 22/27 km/h
Lifting Speed Laden/Unladen: 420/ 555 mm/s
Lowering Speed Laden/Unladen: 350/ 285 km/h
Load Capacity: 7000 kg
Loading Center Distance: 600 mm
Drawbar Pull at (2km/h) with/without Load: 51 kN
Gradeability (at 2km/h) Laden/Unladen: 20%

AXLES/WEIGHT

Axel Type: Kion
Axle Loading, Loaded / Unloaded, Front: 14820/ 3960 kg
Axle Loading, Loaded / Unloaded, Rear: 1760/5640 kg
Operating Weight: 9600 kg

BRAKES

Service Brake: Foot Operated, Hydraulical
Parking Brake: Hand Operated, Mechanical

TIRES/STEERING

Type: SE-Super Elastic, Solid Tires
Front Tyres Size: 8.52-15 14PR
Rear Tyres Size: 8.52-15 14PR
Wheelbase: 2250 mm
Tread Width (Front/Rear): 1470/ 1700 mm
Number of Wheels, Front/Rear: 4 Front/ 2 Rear
Steering Configuration: Rear Wheel Power Steering

CHASSIS

Overall Length: 4852 mm
Overall Width: 1995 mm
Lenght to Face of Forks: 3632 mm
Overhead Guard Height: 2445 mm
Turn Radius, Min Outside: 3460 mm
Ground Clearance Minimum Loaded: 160 mm
Center of Wheelbase: 190 mm
Drawbar Height: 356 mm

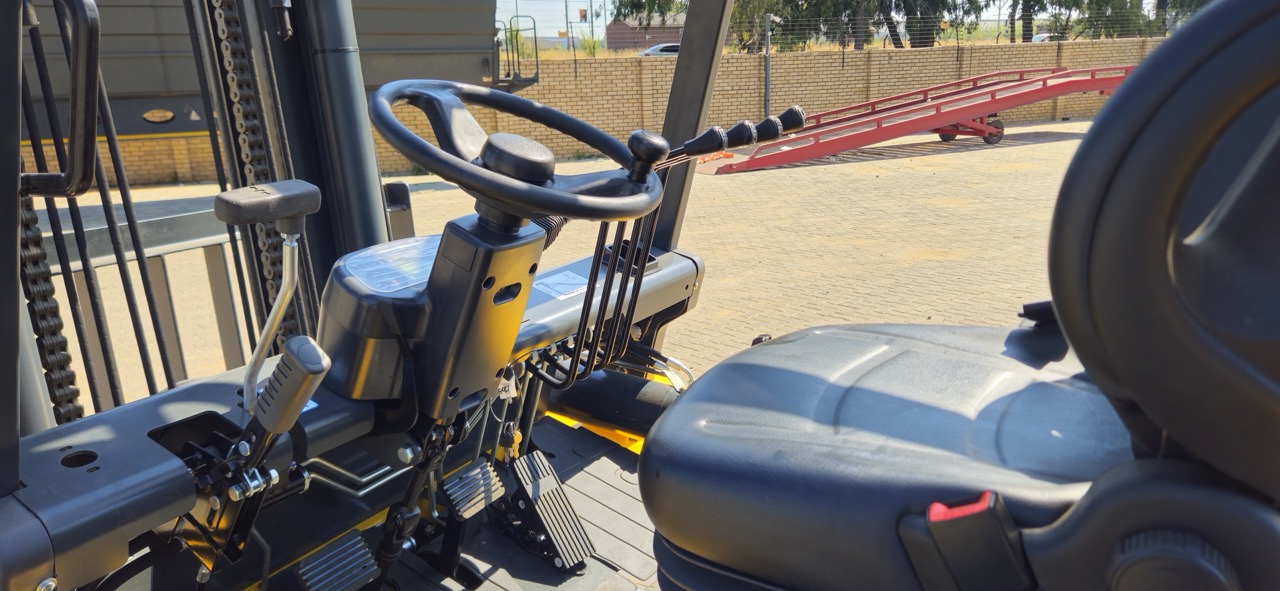

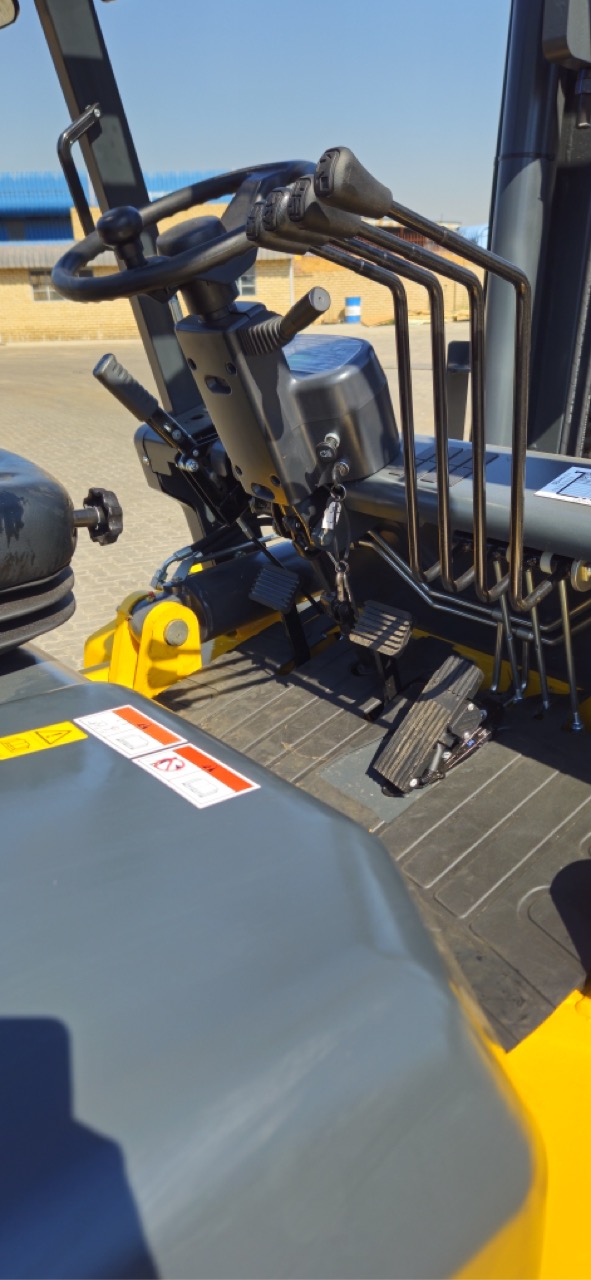

Driver’s Cab: Open

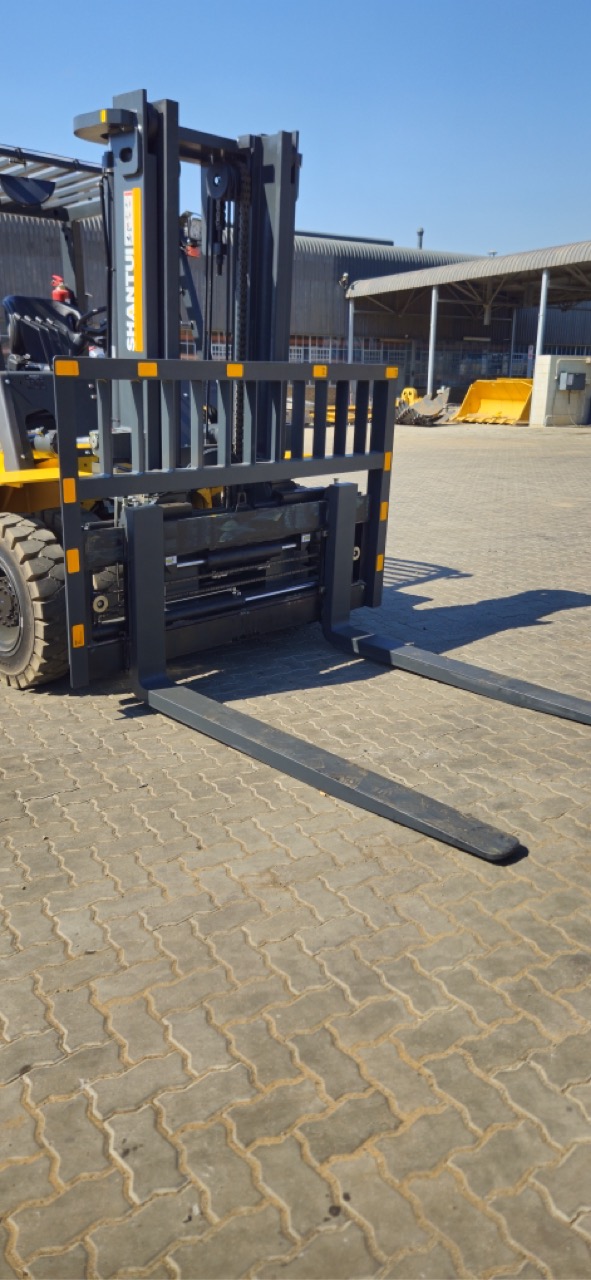

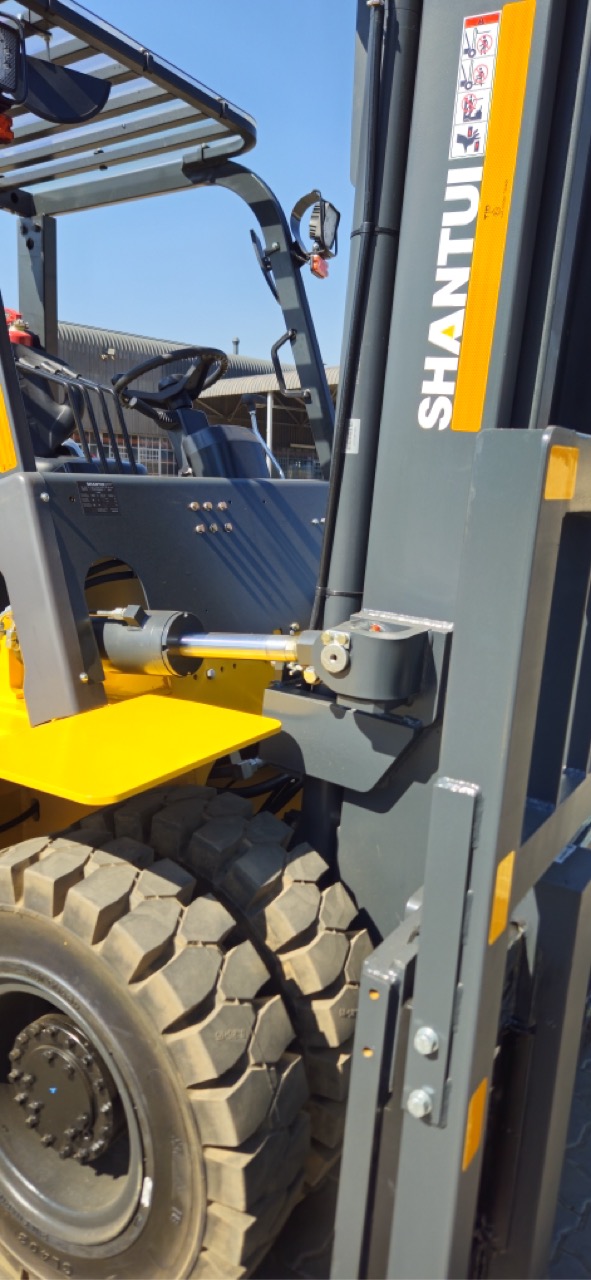

MAST

Number of Mast: 2 (Two Stage Mast)

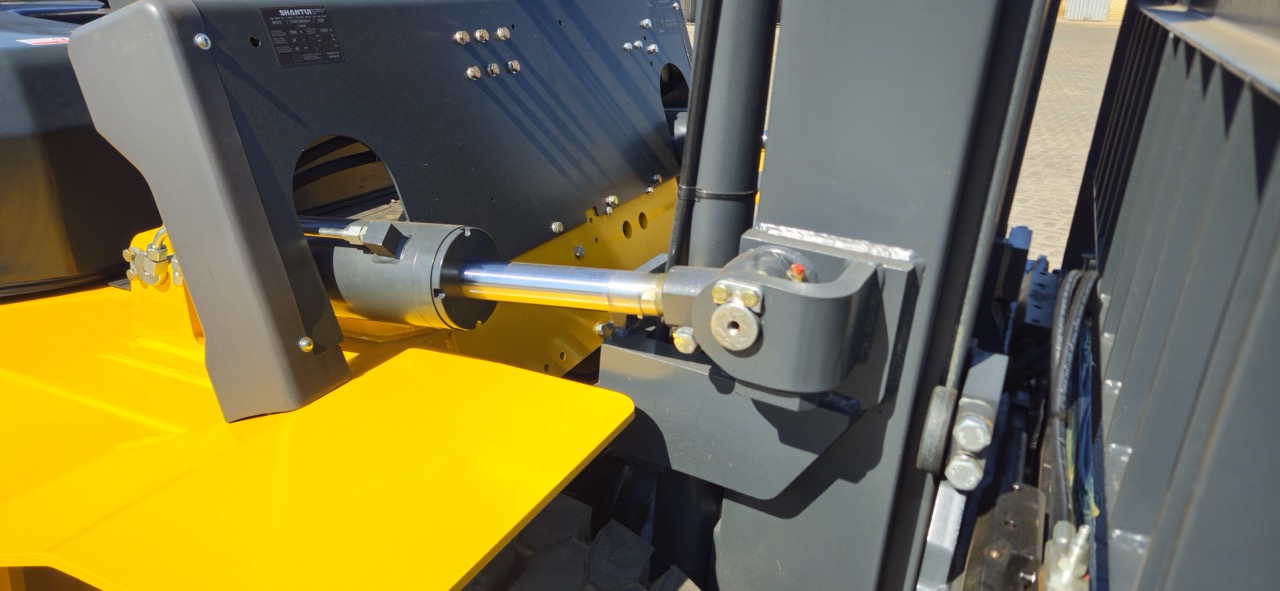

Mast Lift, Forward/Backward (Tilt): 6°/12°
Fork Carriage Width: 1845 mm
Mast Minimum Overall Height: 2500 mm
Mast Maximum Overall Height: 4429 mm
Free Lift: 215 mm

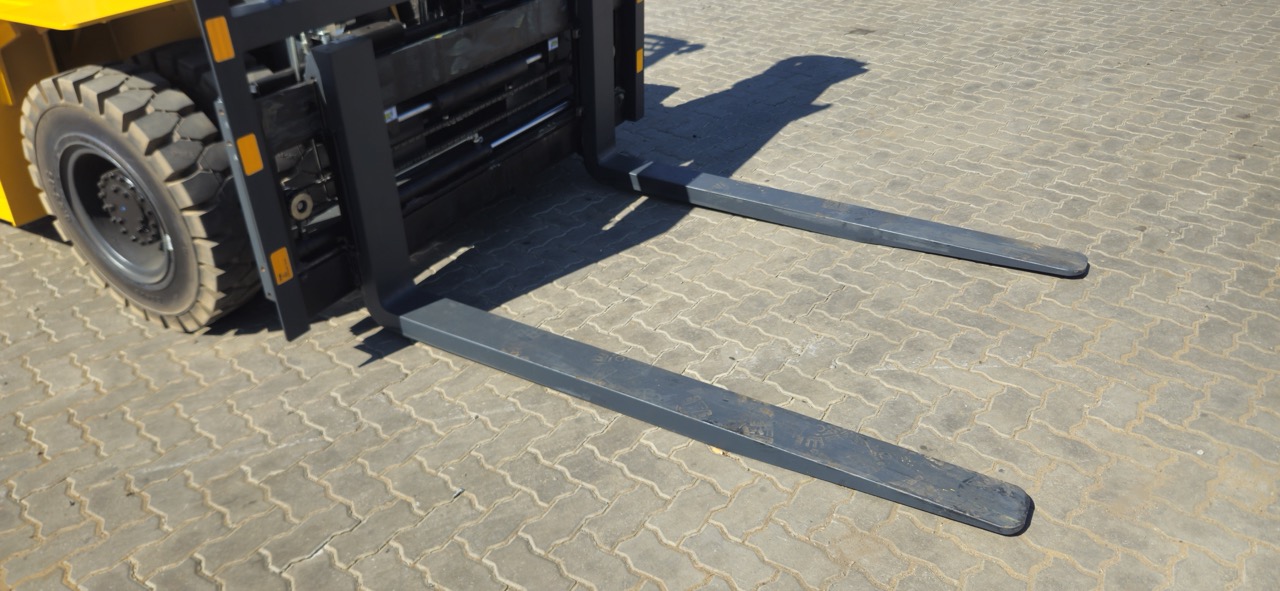

Fork Arms Dimensions (T x W x H): 65 x 150 x 1820 mm
Max Fork Height: 3000 mm
Working Aisle Width with Pallet 1000 x 1200 Crossways: 5292 mm

STANDARD EQUIP

Fire Extiguisher
Reverse Buzzle
Strobe Light
Reflective Tapes
