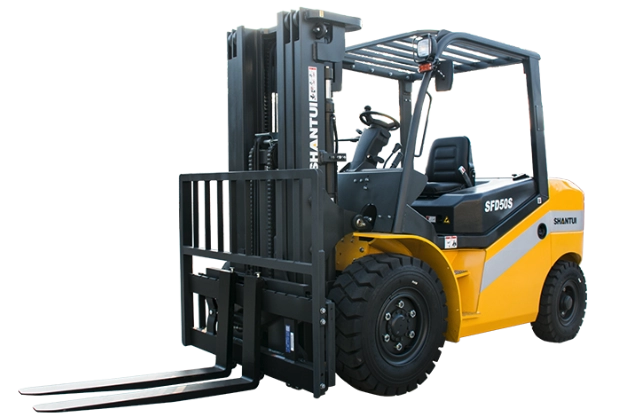

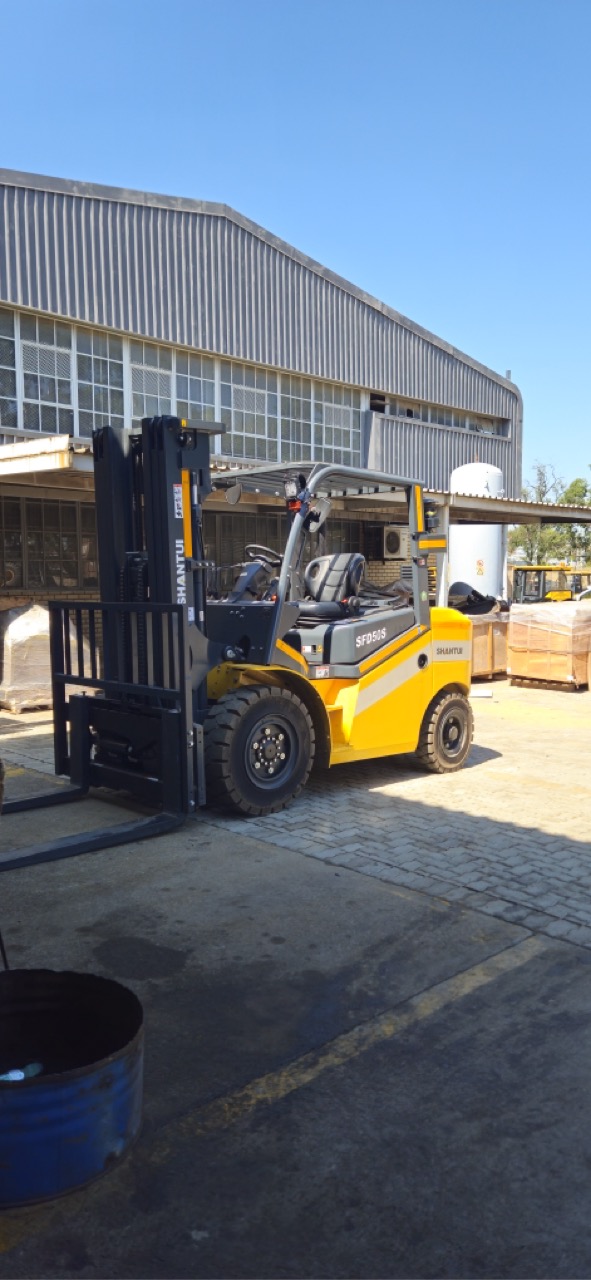

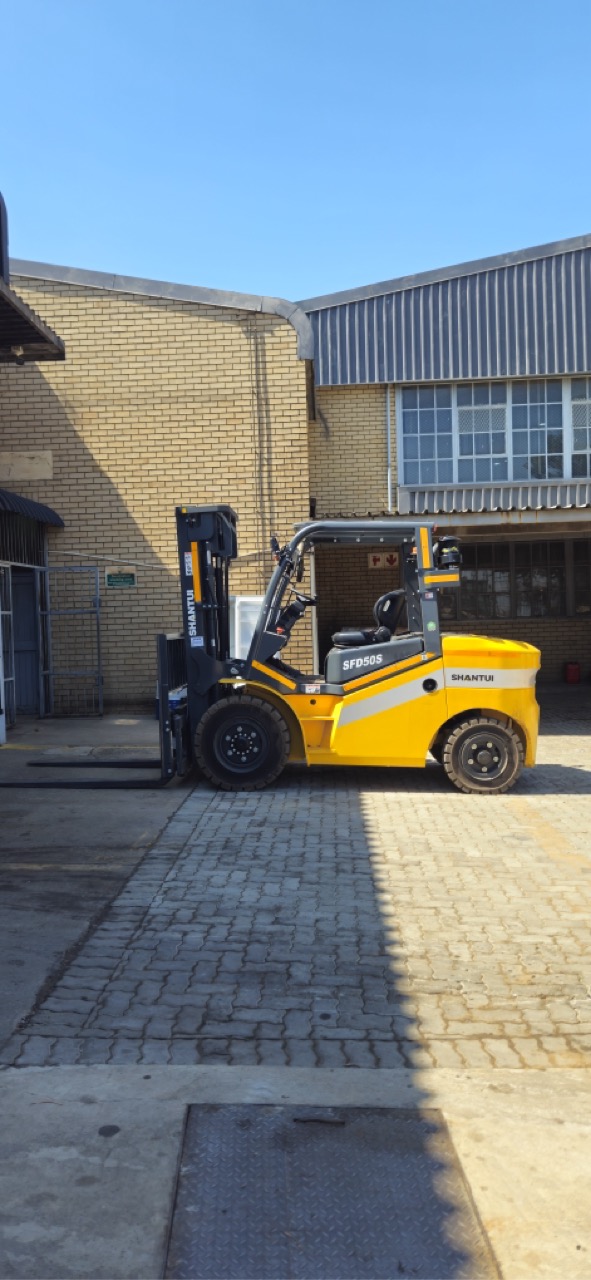

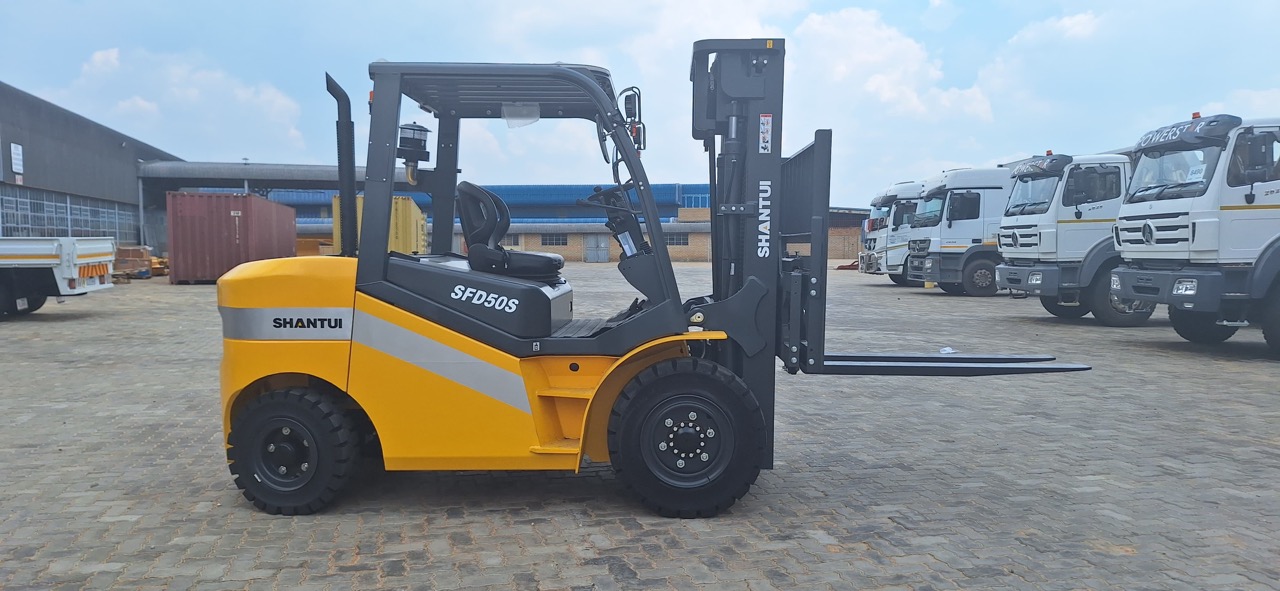

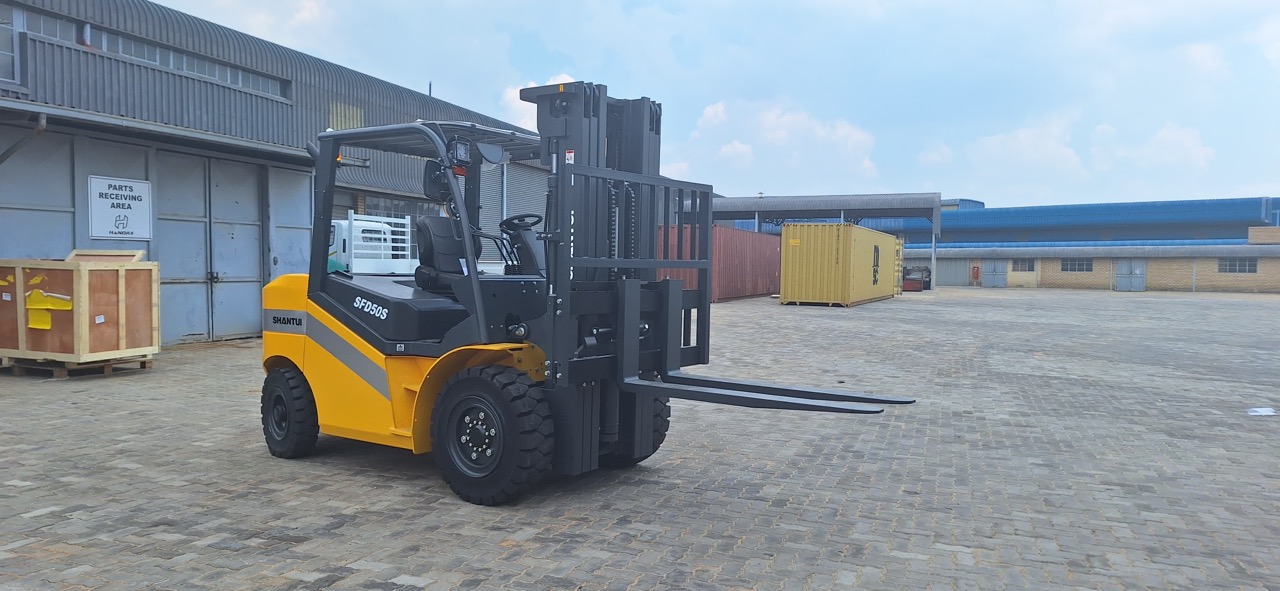

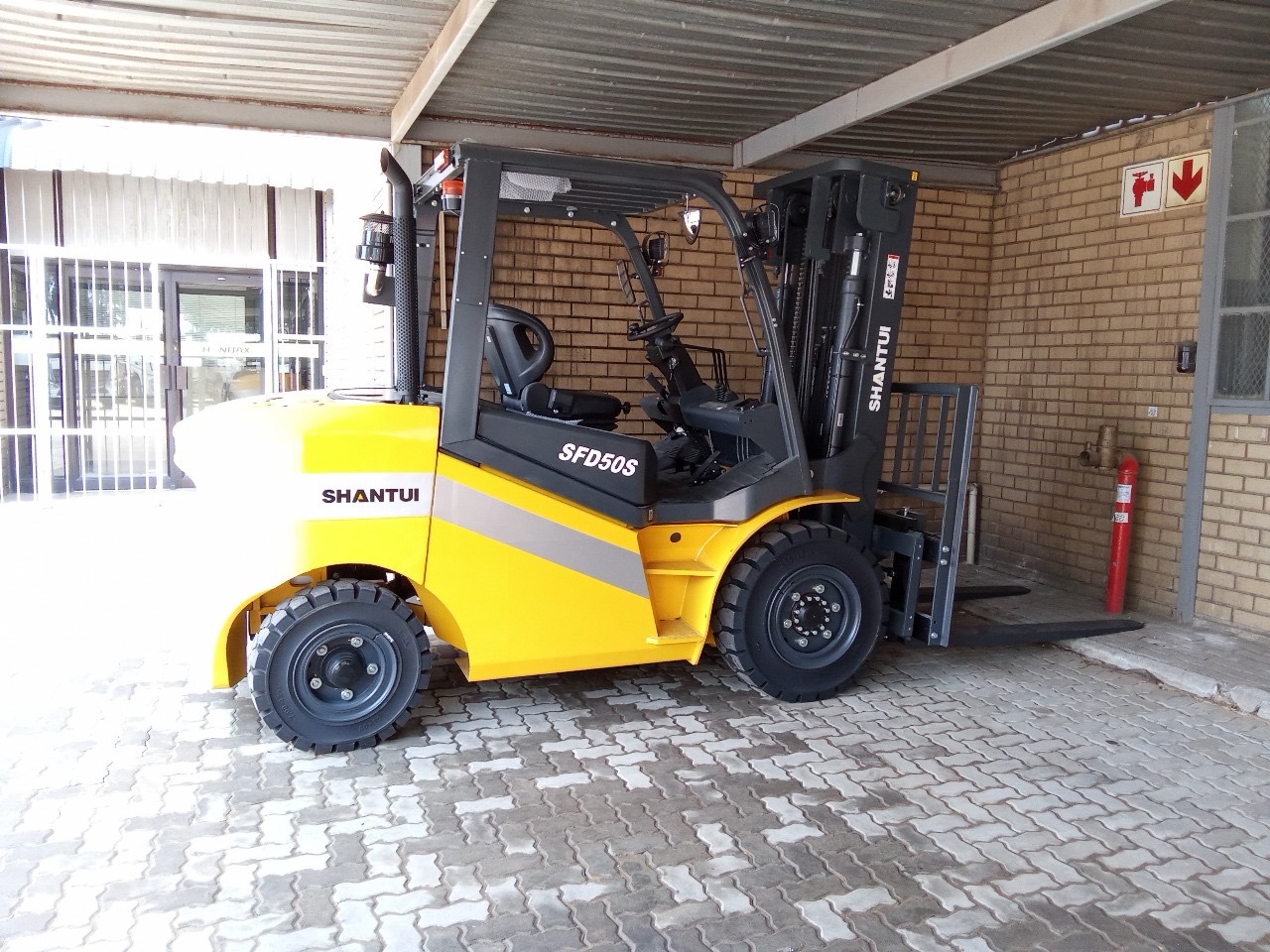

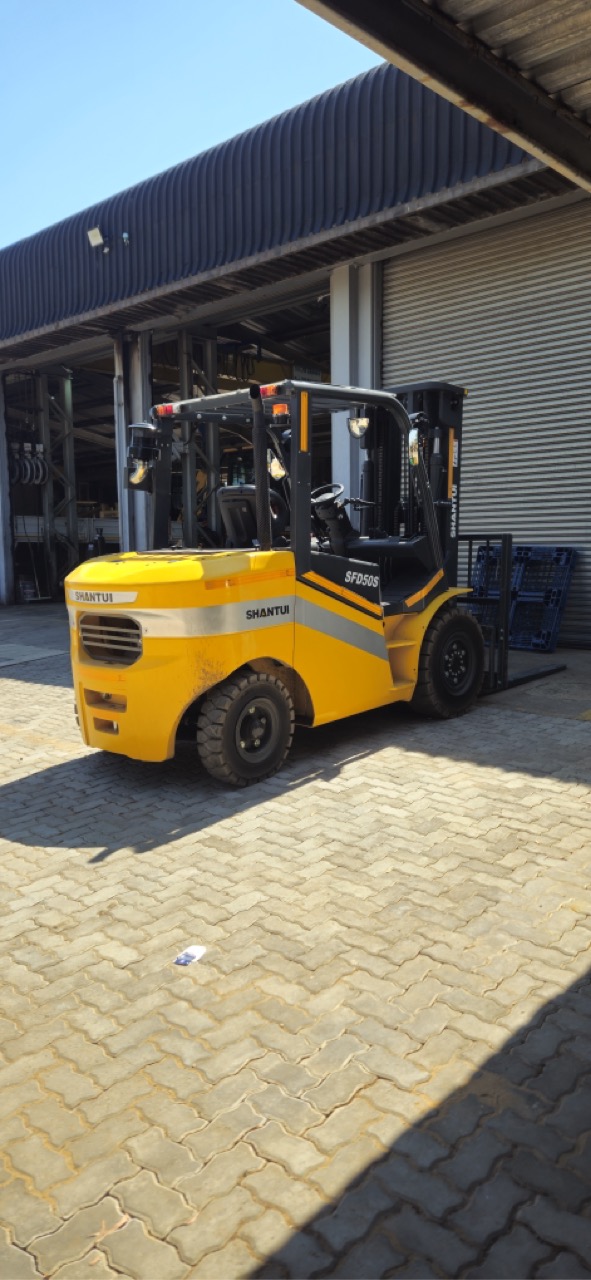

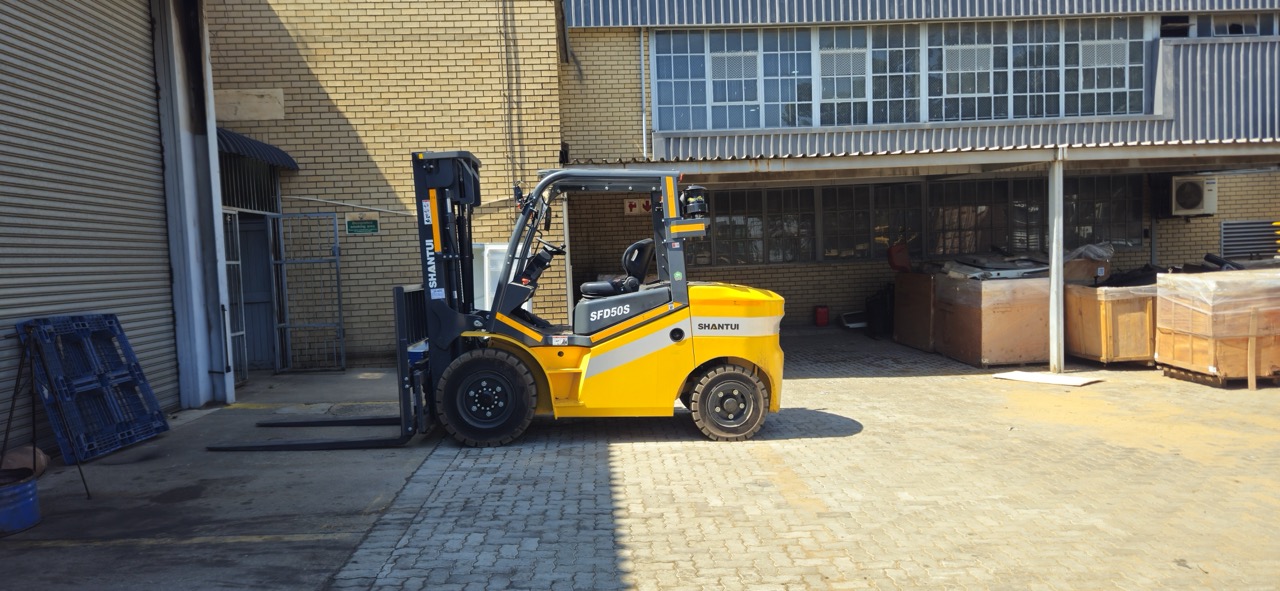

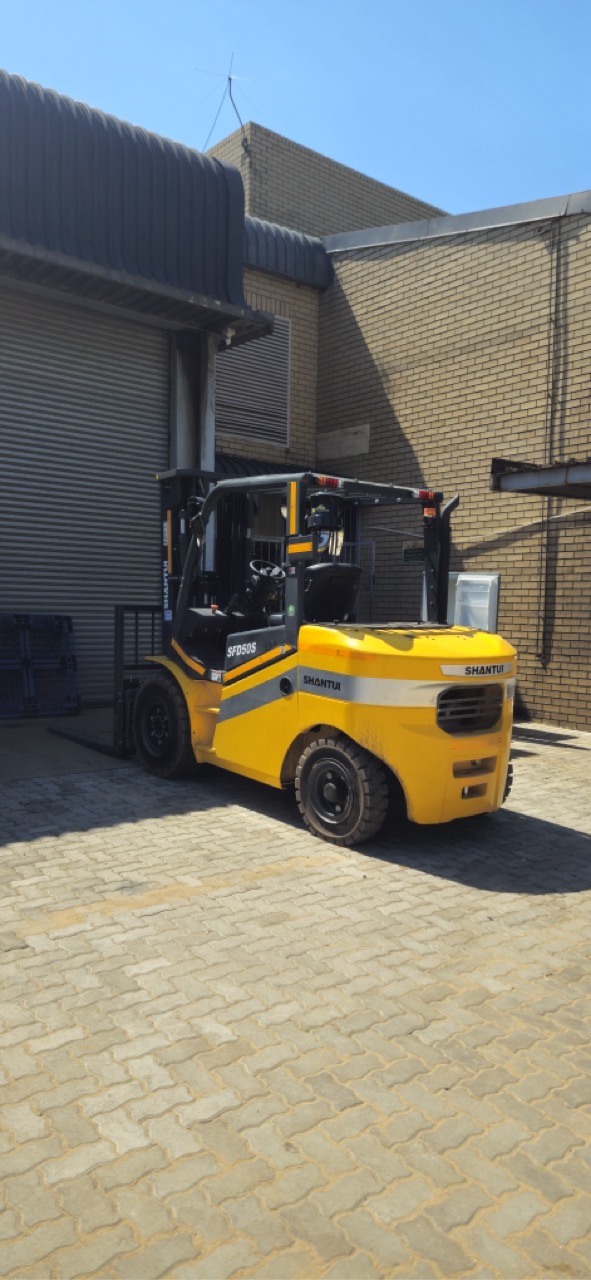

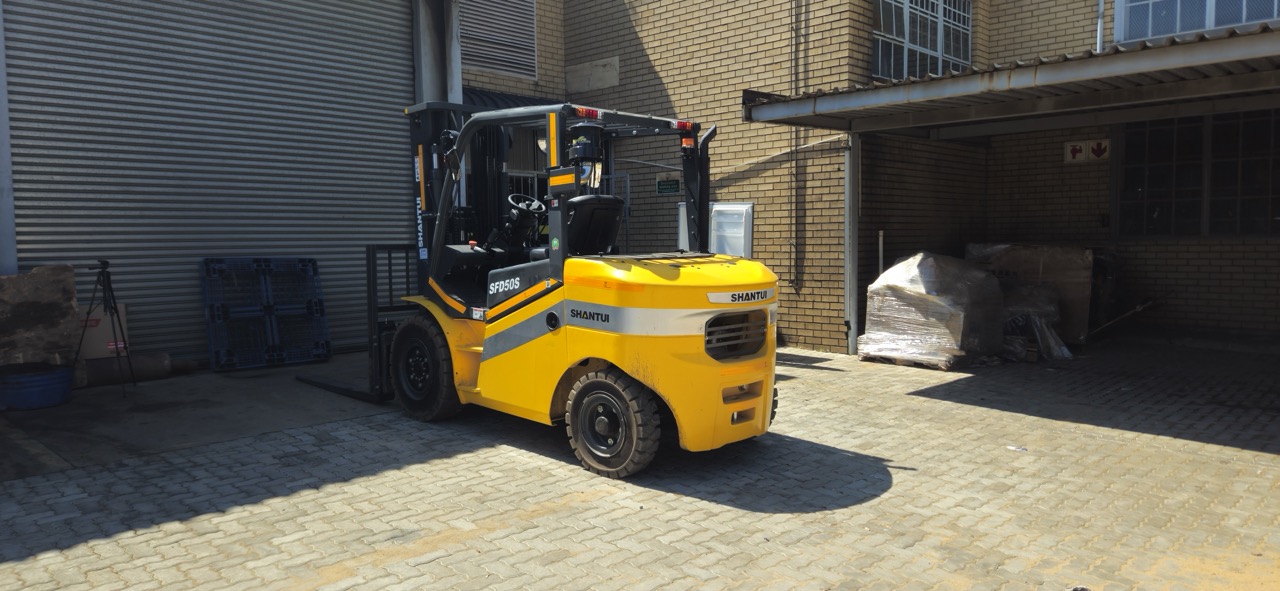

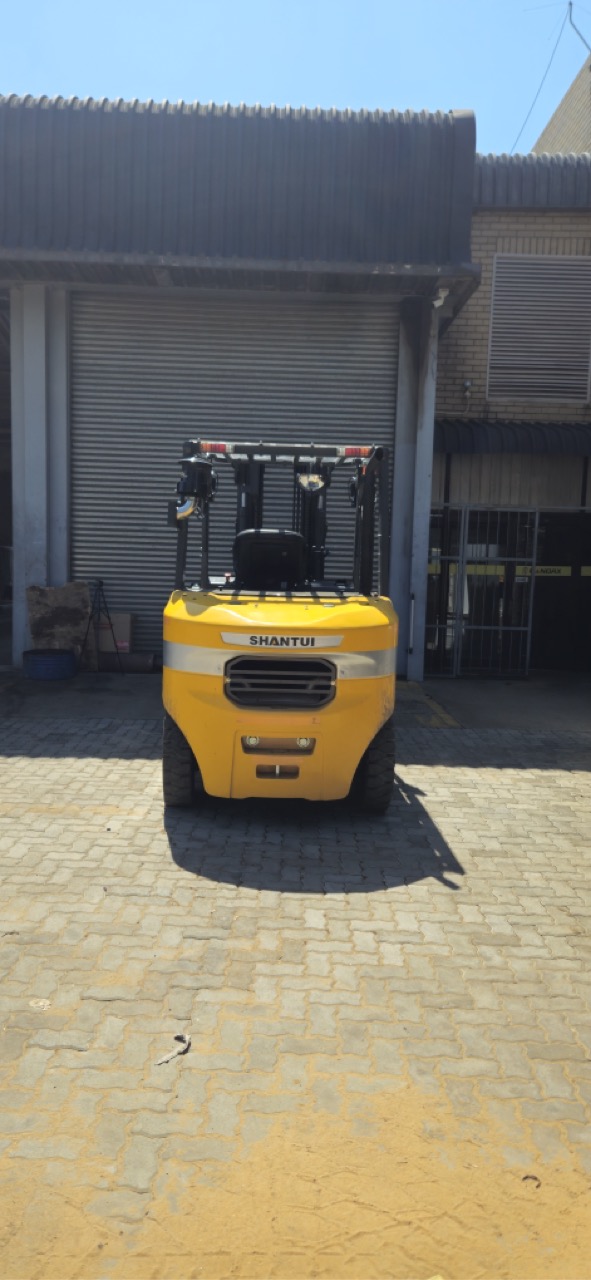

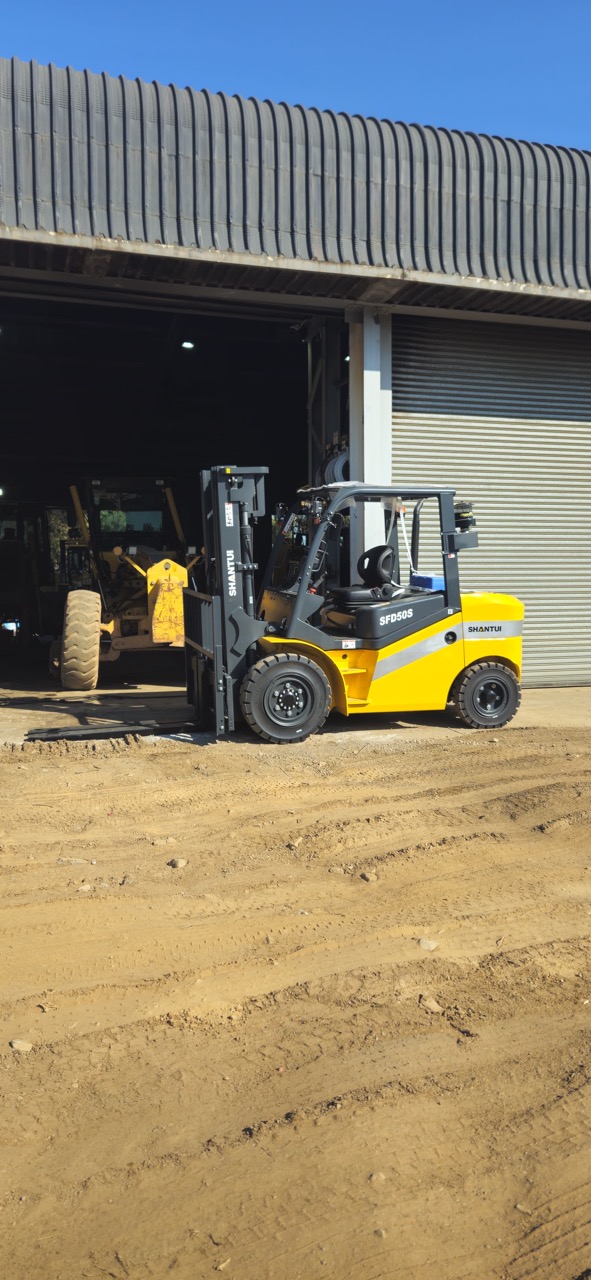

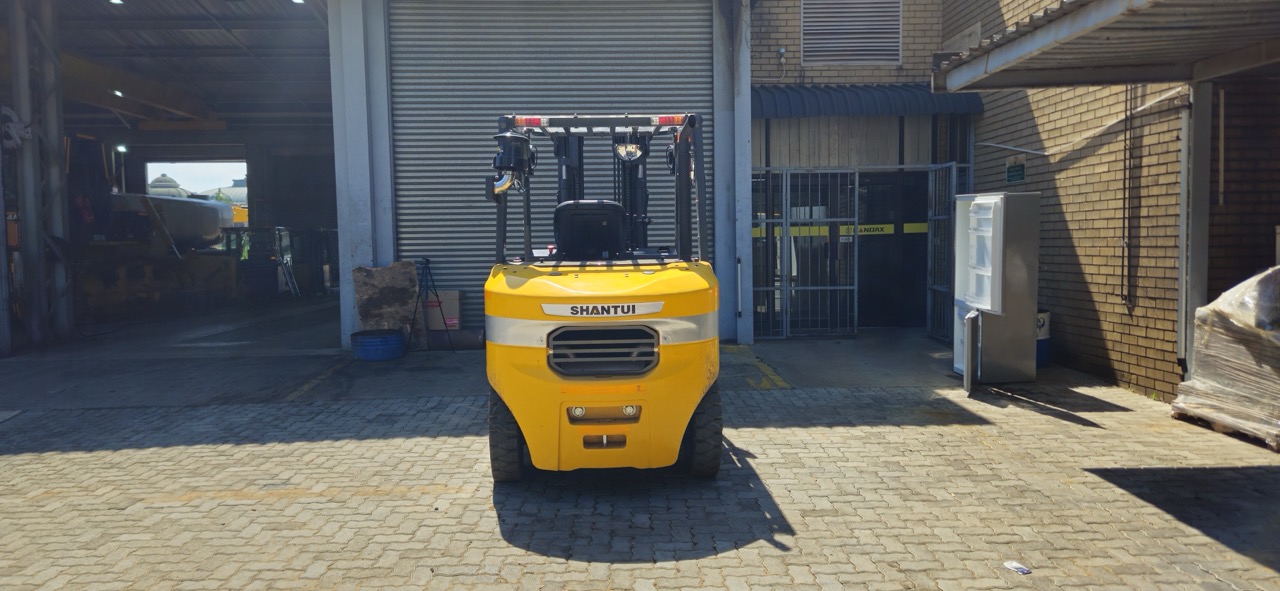

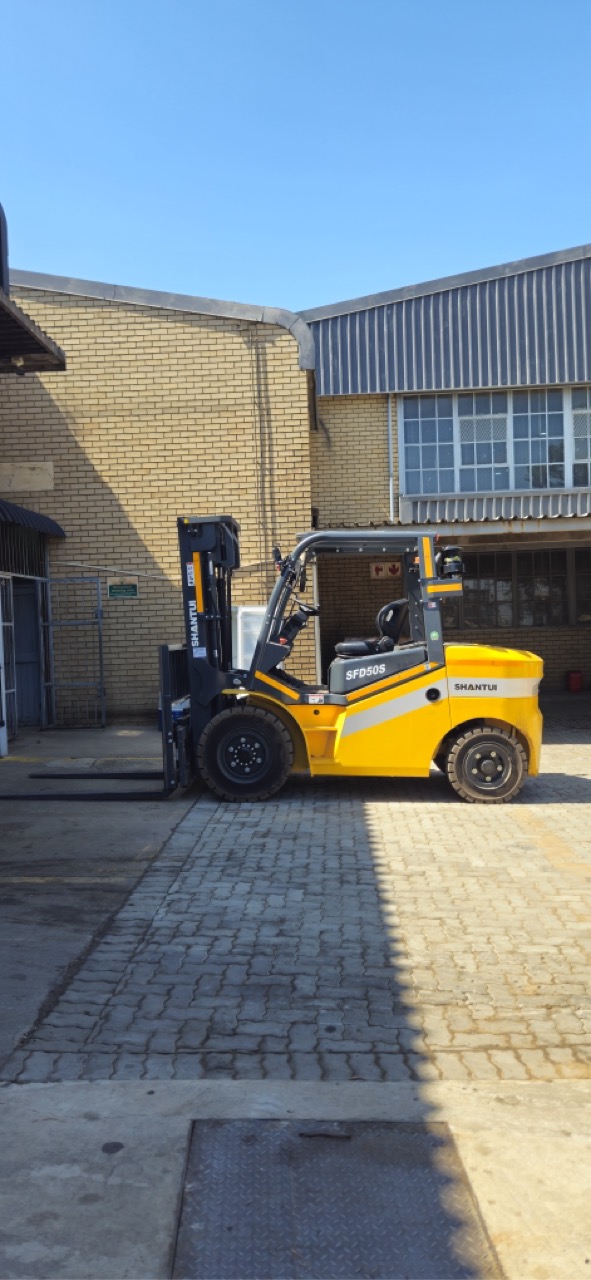

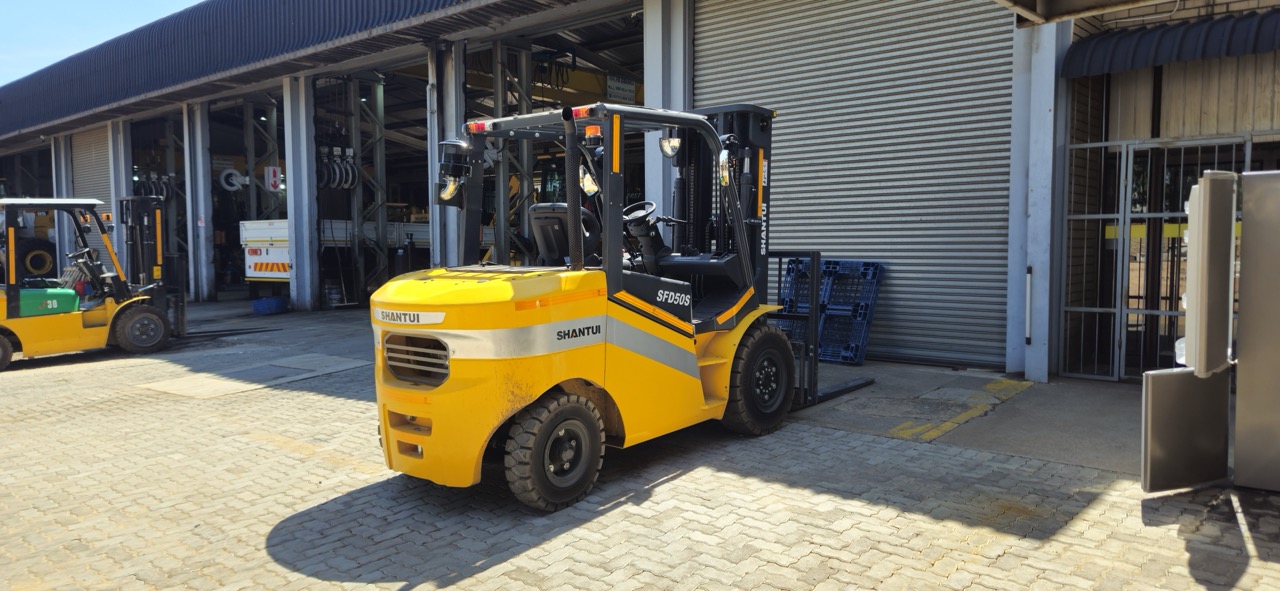

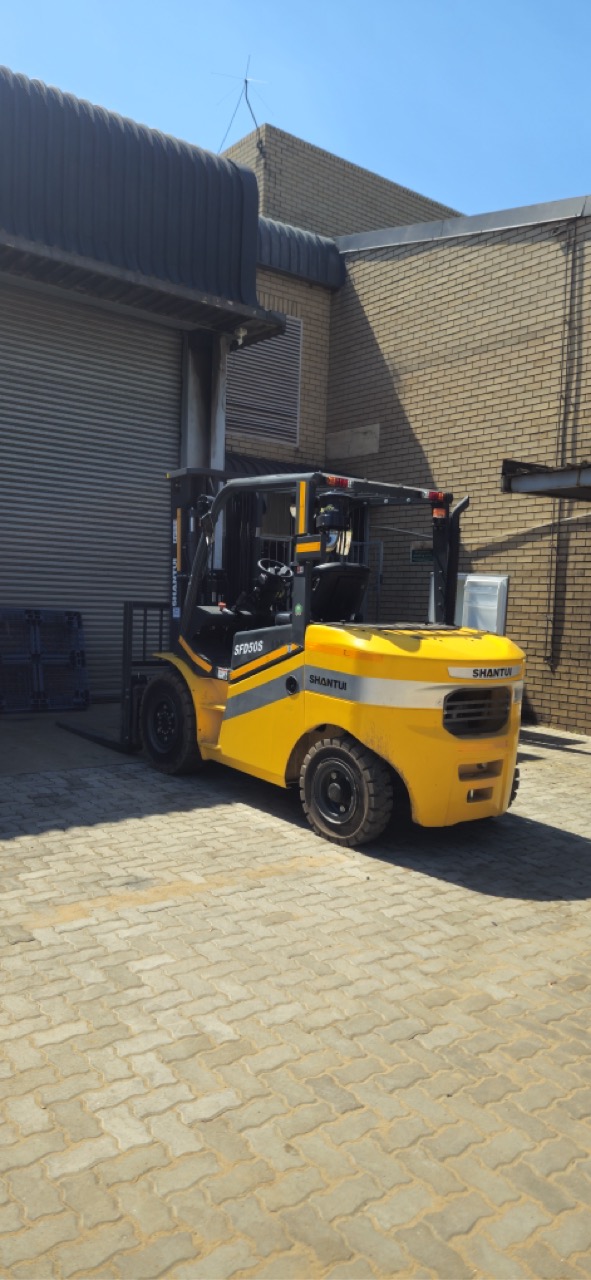

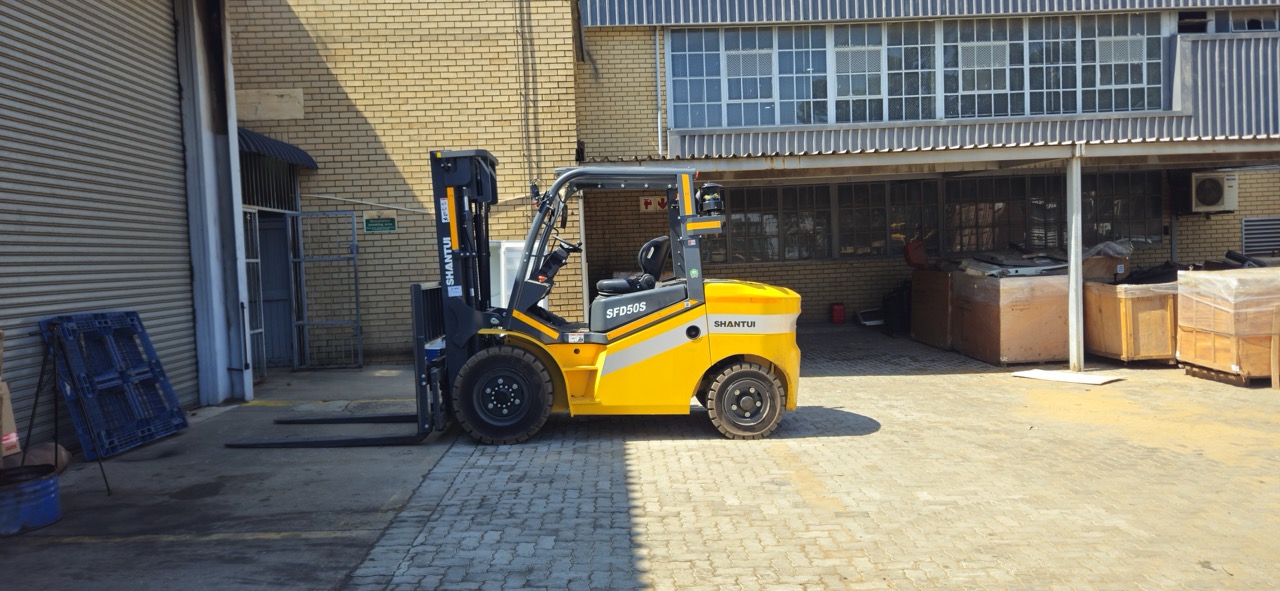

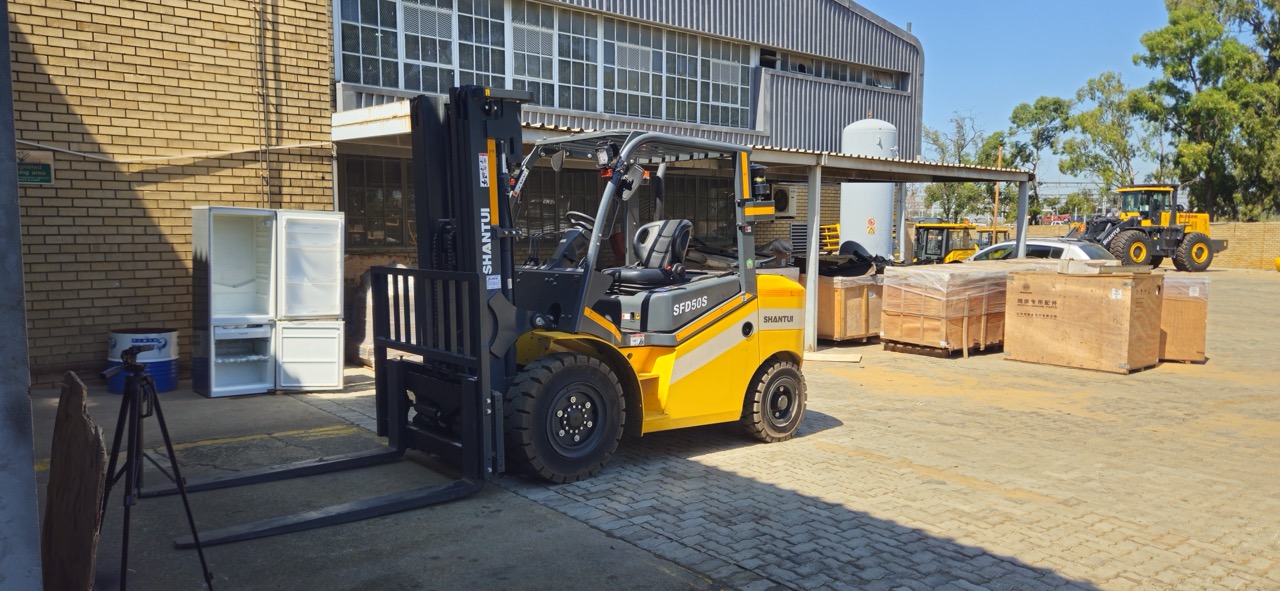

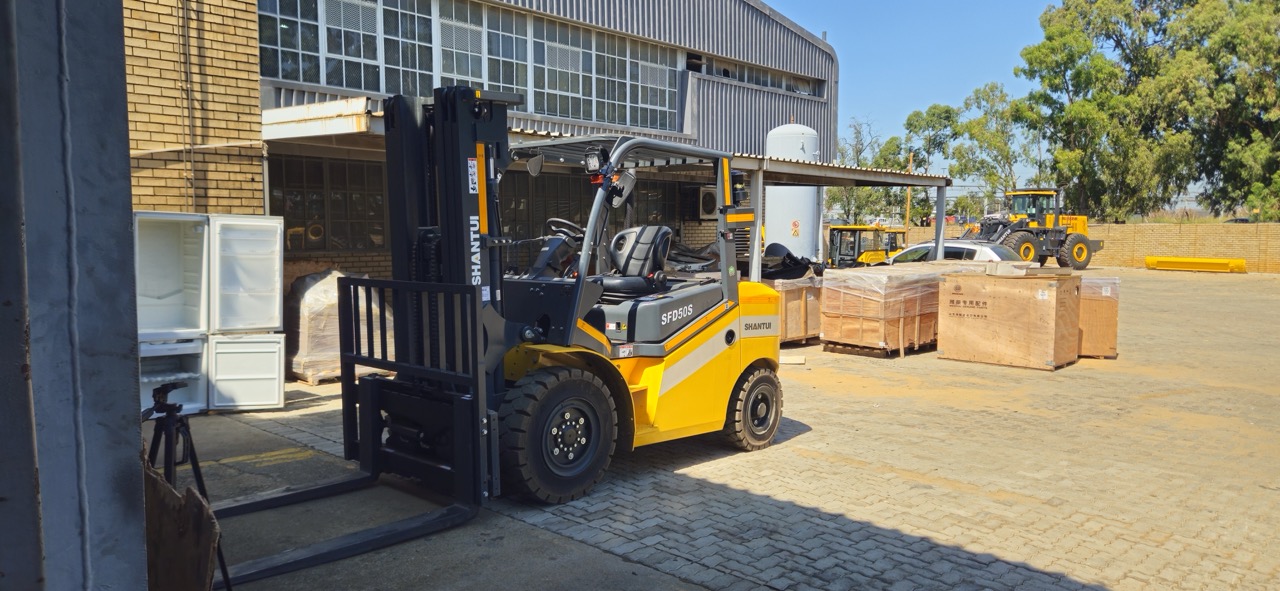

SHANTUI SFD50s

ENGINE

Power type: Diesel
Make: Weichai
Model: WP4.1G85E301
Emission Regulation: Tier 3 / Stage III
Rated Power: 62.5 kW @ 2300 rpm
Displacement: 4.09 L
Number of Cylinders: 4
On-board Voltage: 24 V

PERFORMANCE

Drive Speed Laden/Unladen: 25.3/26.2 km/h
Lifting Speed Laden/Unladen: 456/528 mm/s
Lowering Speed Laden/Unladen: 455/320 mm/s
Load Capacity: 5000 kg
Loading Center Distance: 500 mm
Drawbar Pull at (2km/h) with/without Load: 20/ 24 kN
Gradeability (at 2km/h) Laden/Unladen: 20%

AXLES/WEIGHT

Axel Type: Kion
Axle Loading, Loaded / Unloaded, Front: 11360/ 3220 kg
Axle Loading, Loaded / Unloaded, Rear: 1320/ 4160 kg
Operating Weight: 7971 kg

BRAKES

Service Brake: Foot Operated, Hydraulical
Parking Brake: Hand Operated, Mechanical

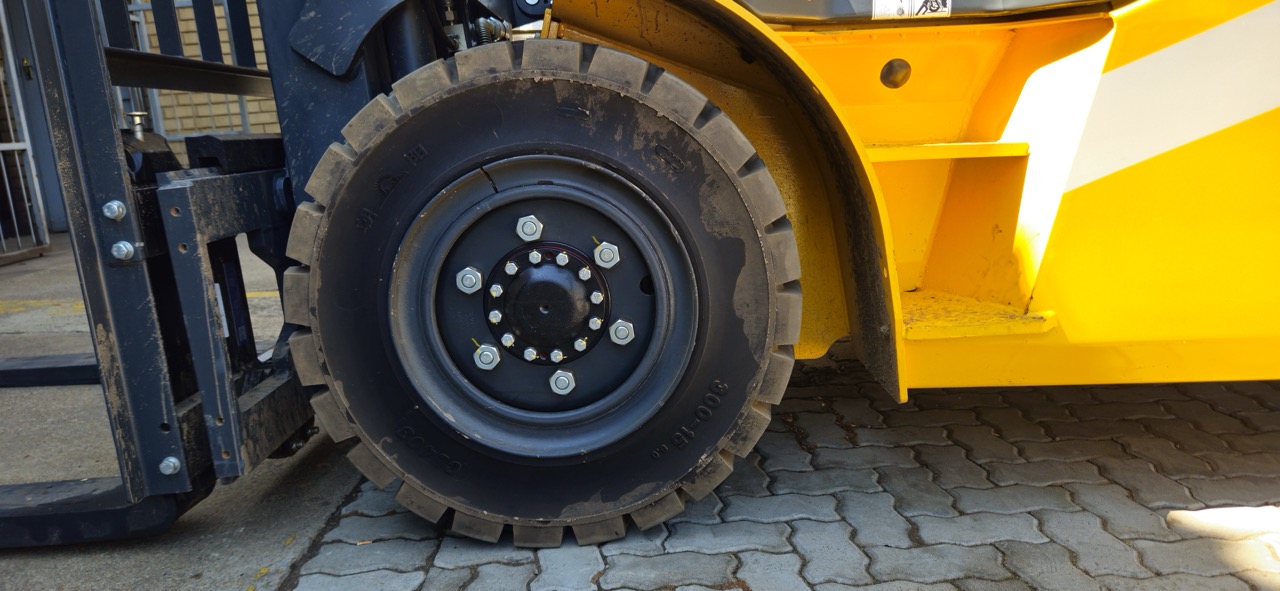

TIRES/STEERING

Type: SE-Super Elastic, Solid Tires
Front Tyres Size: 300-15 20PR
Rear Tyres Size: 7.00-12 12PR
Wheelbase: 2000 mm
Tread Width (Front/Rear): 1180/1190
Number of Wheels, Front/Rear: 2 Front/2 Rear, 2 Wheel Drive
Steering Configuration: Rear Wheel Power Steering

CHASSIS

Overall Length: 4230 mm
Overall Width: 1458 mm
Lenght to Face of Forks: 3160 mm
Overhead Guard Height: 2260 mm
Turn Radius, Min Outside: 2830 mm
Ground Clearance Minimum Loaded: 145 mm
Center of Wheelbase: 180 mm
Right Angle Stack add Load Length and Clearance: 4625 mm
Drawbar Height: 380 mm

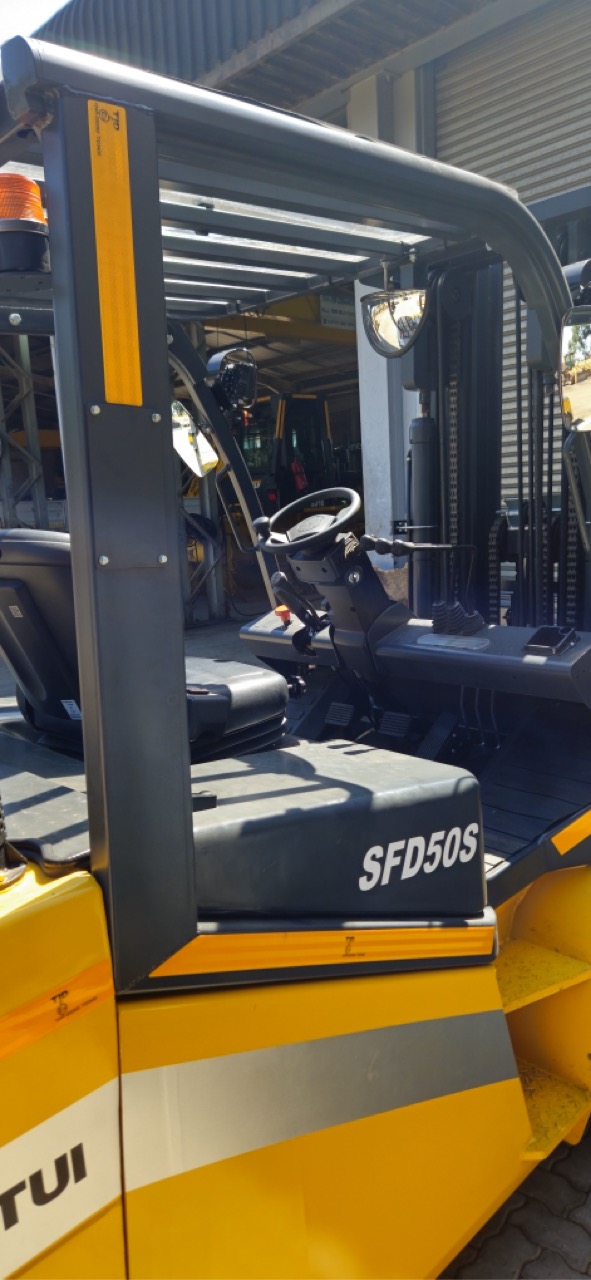

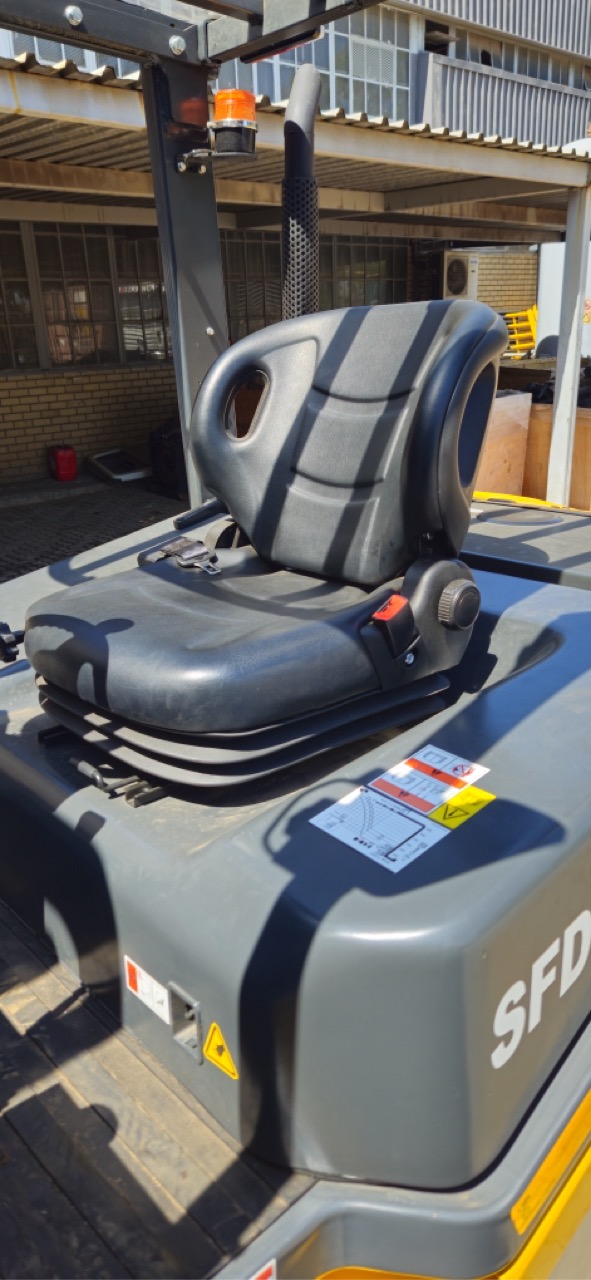

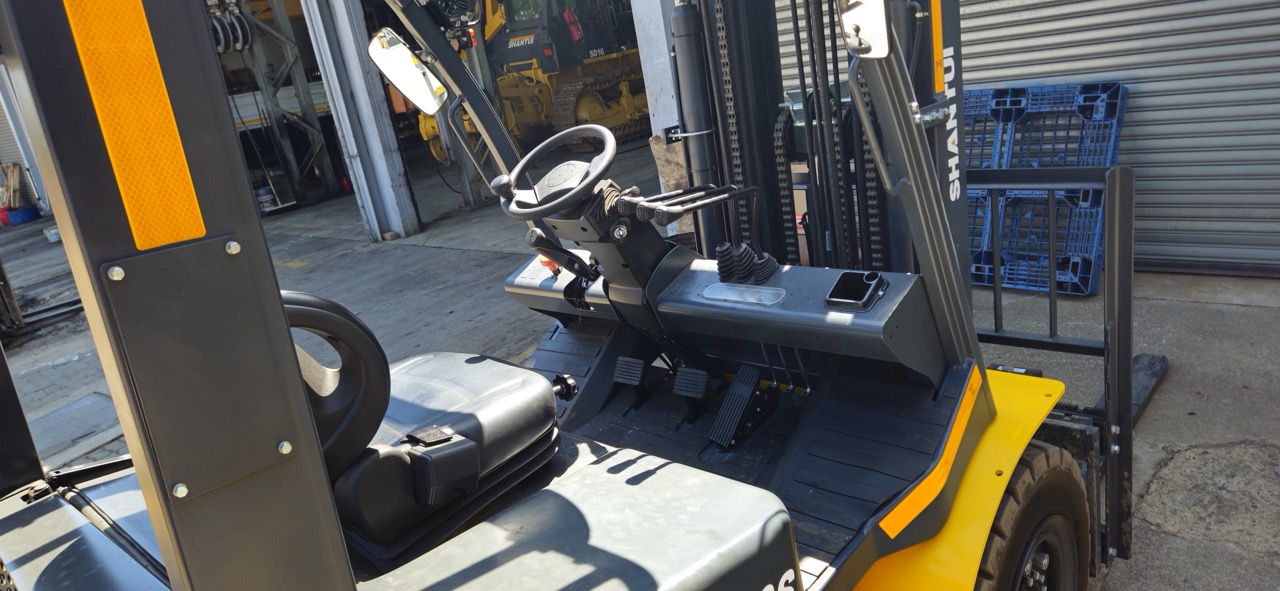

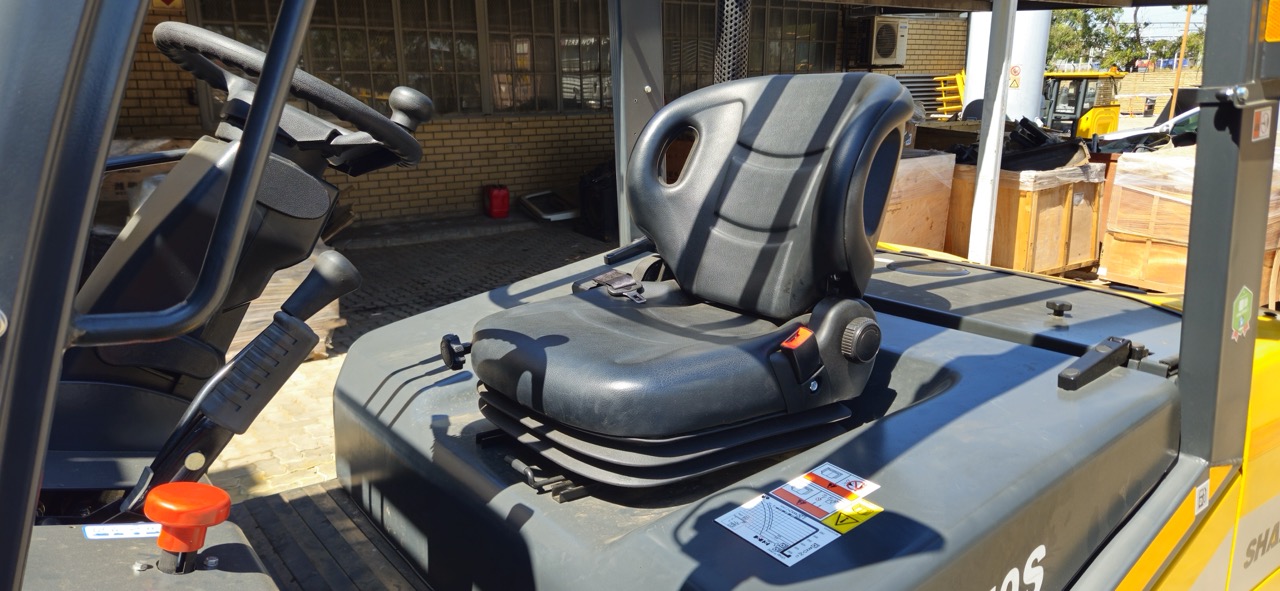

Driver’s Cab: Open

MAST

Number of Mast: 3 (Three Stage Mast)
Mast Lift, Forward/Backward (Tilt): 6°/12°
Fork Carriage Width: 1380 mm
Mast Minimum Overall Height: 2390 mm
Mast Maximum Overall Height: 4275 mm
Free Lift: 964 mm
Fork Arms Dimensions (T x W x H): 55 x 150 x 1520 mm
Max Fork Height: 4500 mm
Working Aisle Width with Pallet 1000 x 1200 Crossways: 4667 mm

STANDARD EQUIP

Fire Extiguisher
Reverse Buzzle

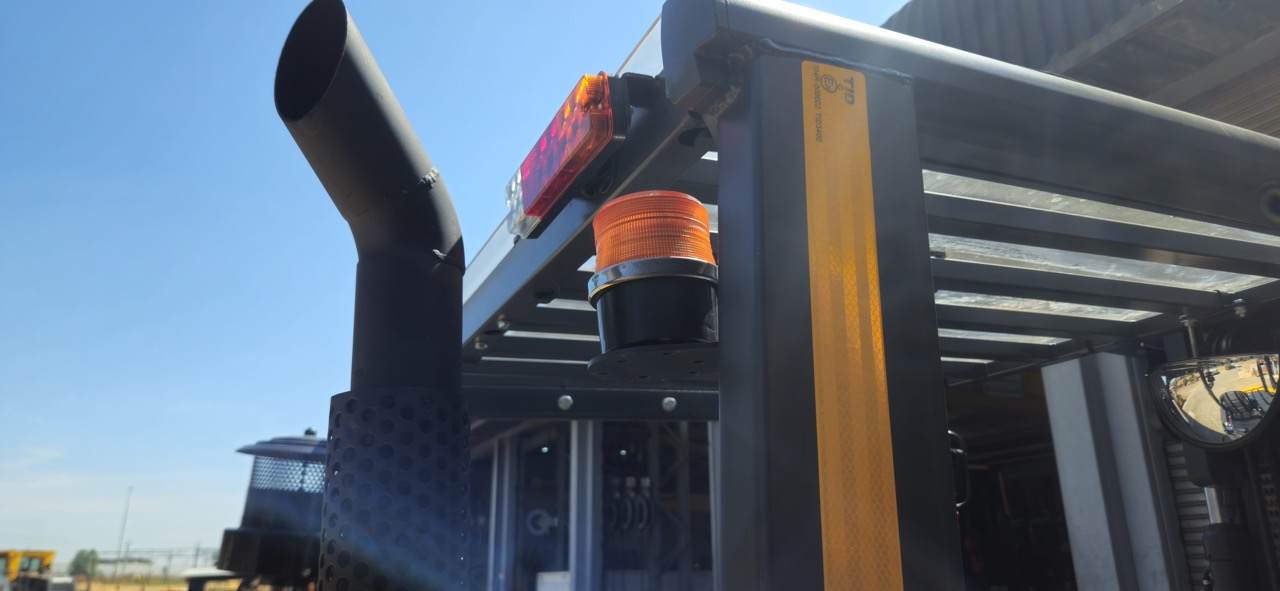

Strobe Light
Reflective Tapes
