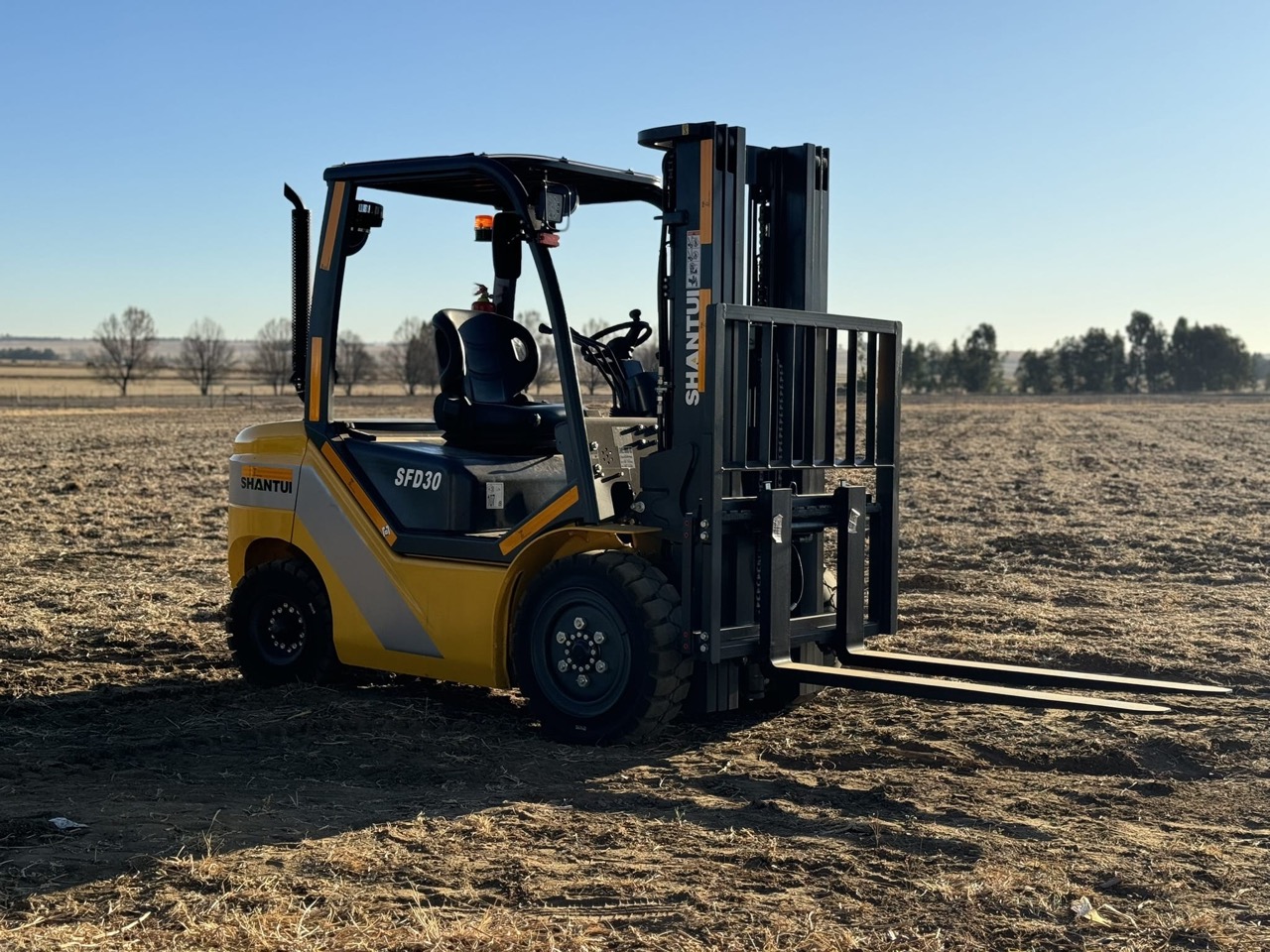

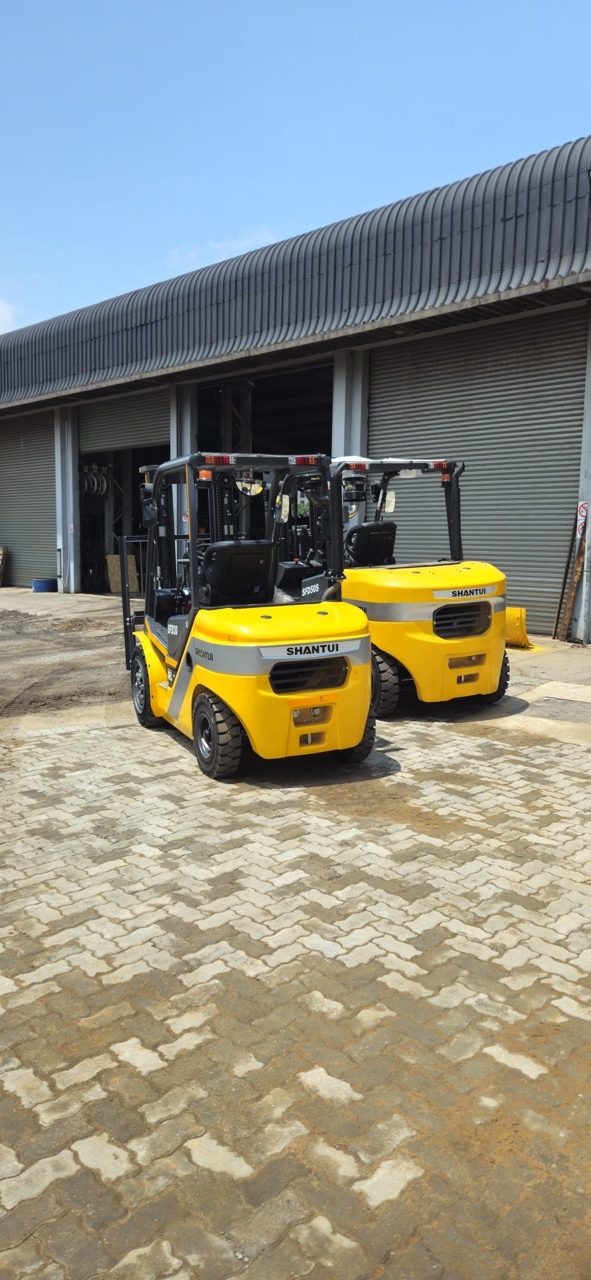

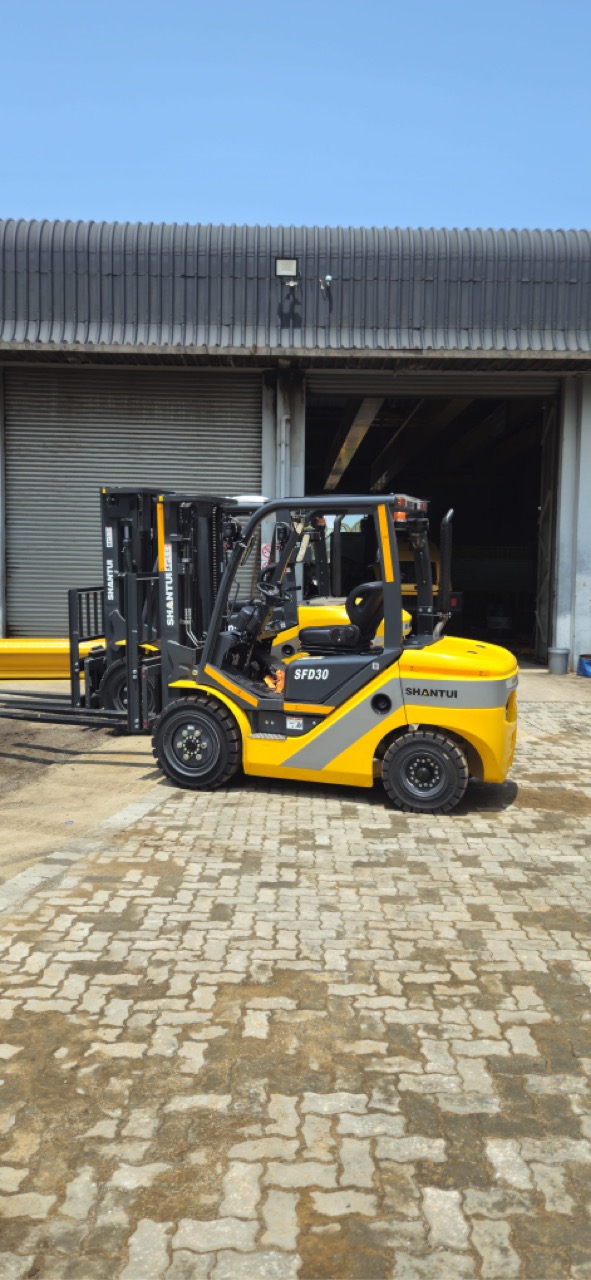

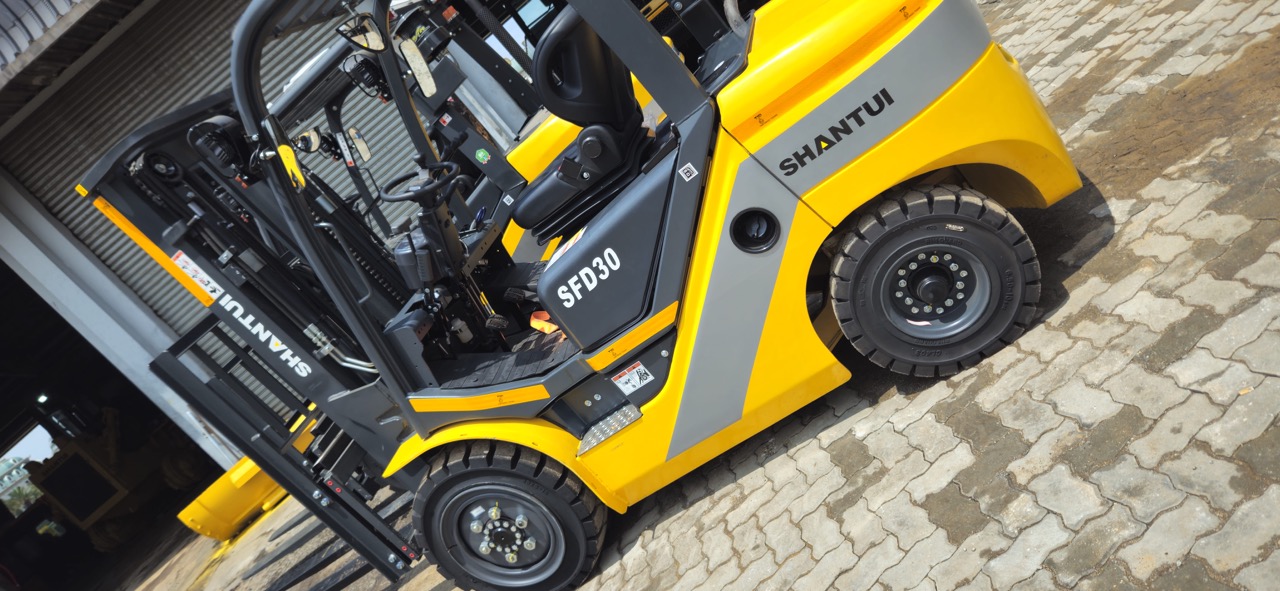

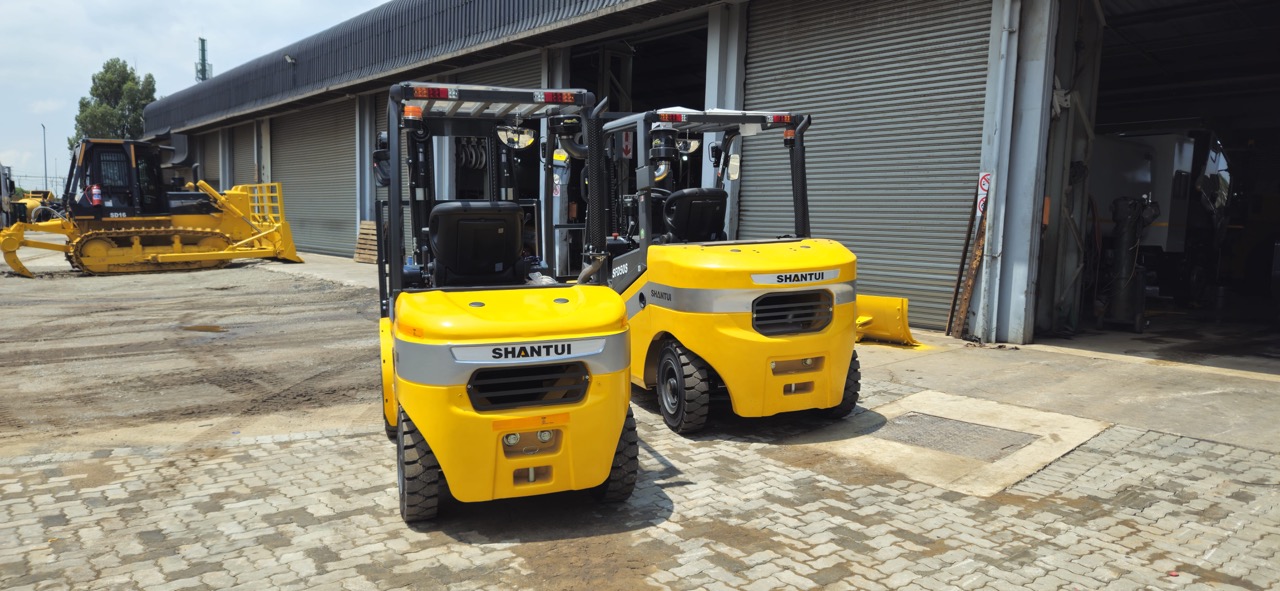

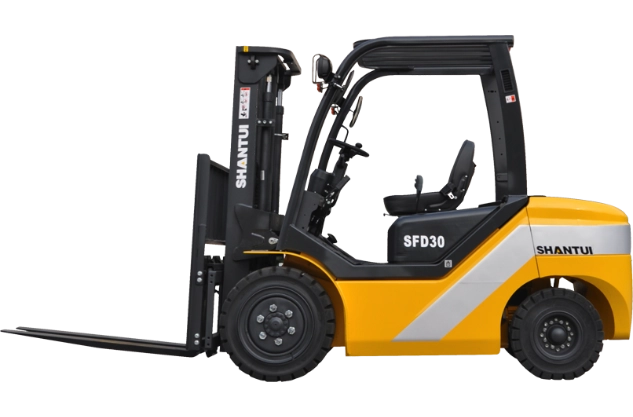

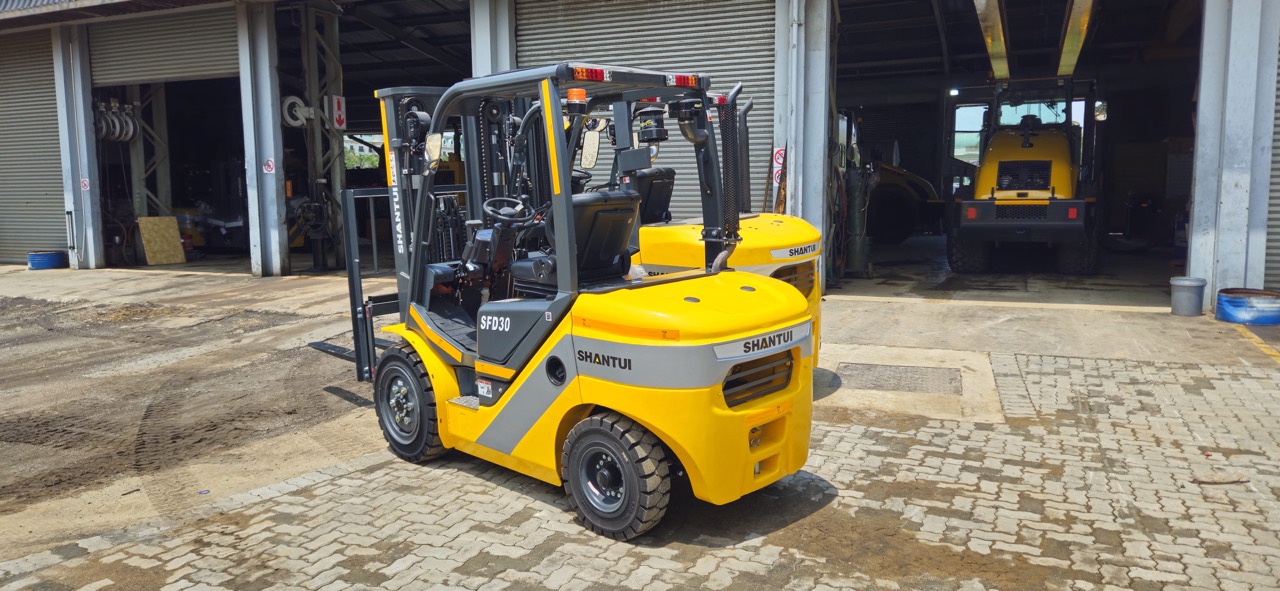

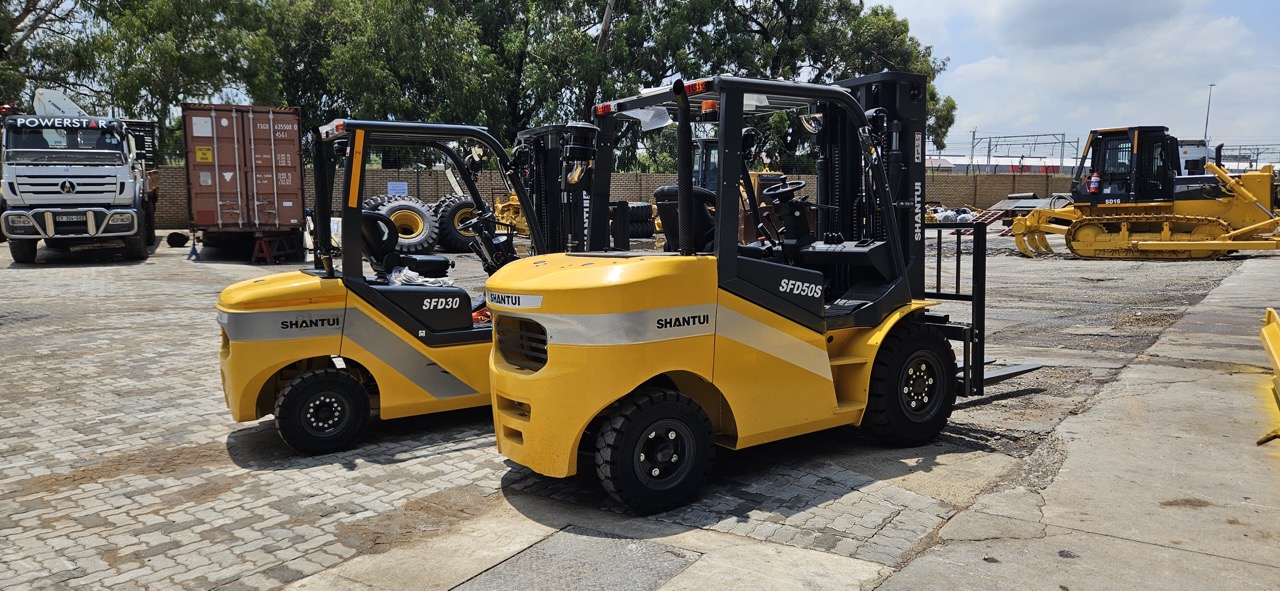

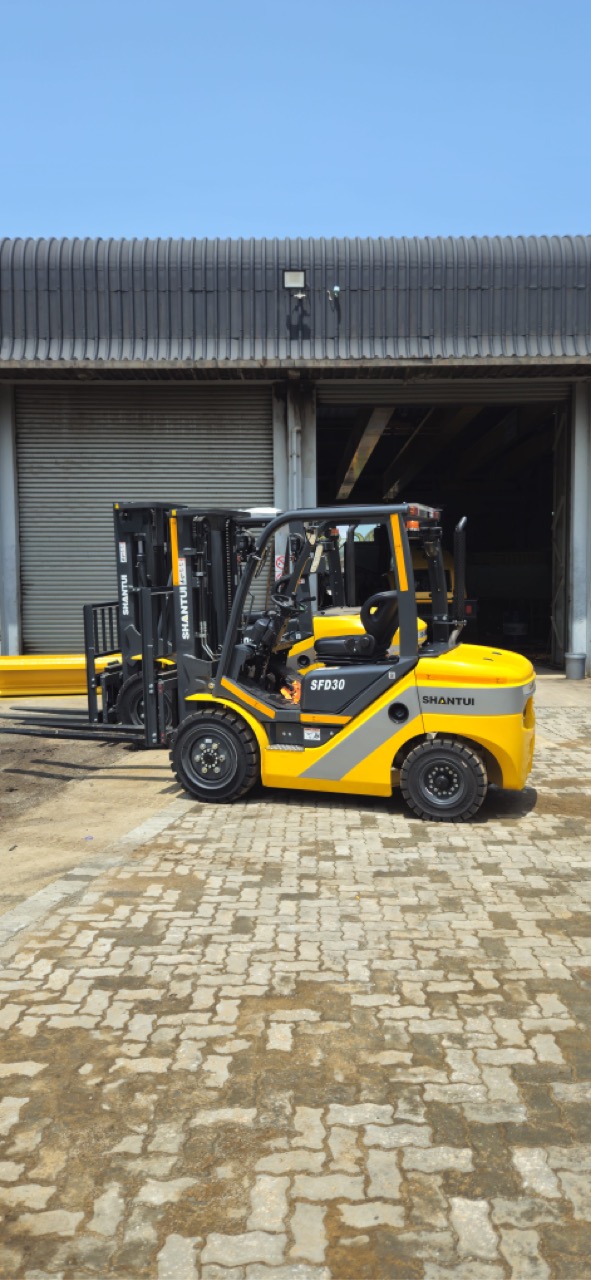

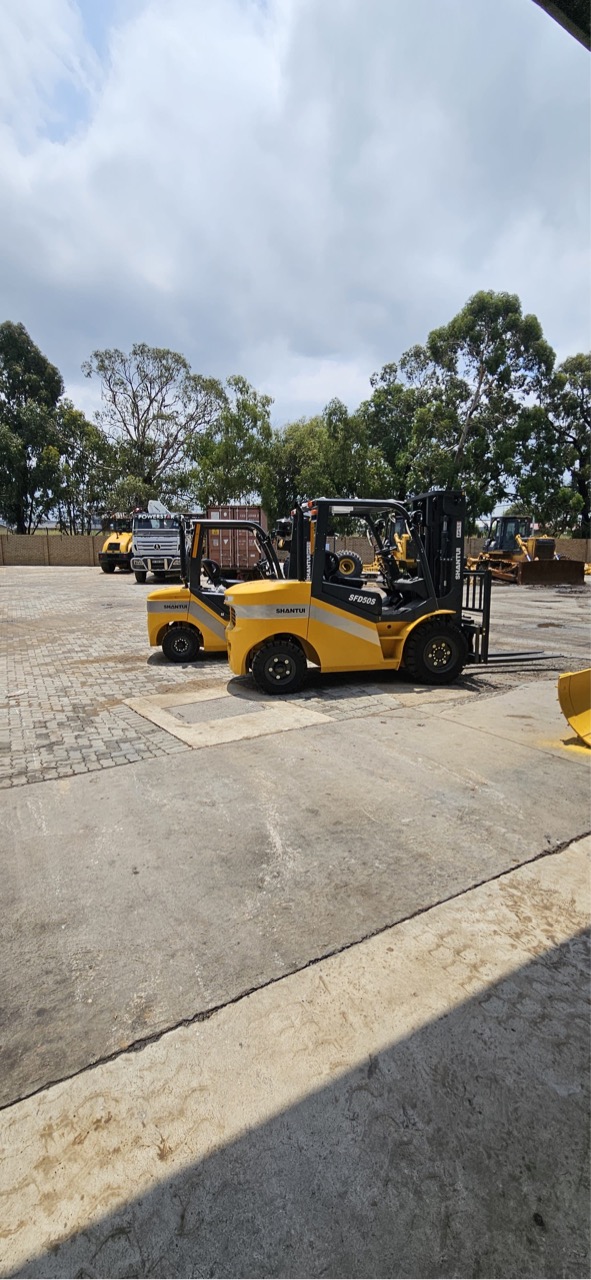

SHANTUI SFD30

ENGINE

Power type: Diesel
Make: Weichai
Model: WP3.2G50E347A
Emission Regulation: Tier 3 / Stage III
Rated Power: 36.8 kW @ 2500 rpm
Max Torque: 540 N.m
Displacement: 3.17 L
Number of Cylinders: 4
On-board Voltage: 12 V

PERFORMANCE

Drive Speed Laden/Unladen: 20/20.5 km/h
Lifting Speed Laden/Unladen: 480/540 s
Lowering Speed Laden/Unladen: 440/455 s
Load Capacity: 3000 kg
Loading Center Distance: 500 mm
Drawbar Pull at (2km/h) with/without Load: 16.2/14 kN
Gradeability (at 2km/h) Laden/Unladen: 20%

AXLES/WEIGHT

Axel Type: Kion
Axle Loading, Loaded / Unloaded, Front: 6460/1700 kg
Axle Loading, Loaded / Unloaded, Rear: 800/2580 kg
Operating Weight: 4772 kg

BRAKES

Service Brake: Foot Operated, Hydraulical
Parking Brake: Hand Operated, Mechanical

TIRES/STEERING

Type: SE-Super Elastic, Solid Tires
Front Tyres Size: 28×9-15 14PR
Rear Tyres Size: 6.50-10 10PR
Wheelbase: 1700 mm
Tread Width (Front/Rear): 1000/970
Number of Wheels, Front/Rear: 2 Front/2 Rear, 2 Wheel Drive
Steering Configuration: Rear Wheel Power Steering

CHASSIS

Overall Length: 3780 mm
Overall Width: 1225 mm
Lenght to Face of Forks: 2710 mm
Overhead Guard Height: 2108 mm
Height: 2150 mm
Turn Radius, Min Outside: 2460 mm
Ground Clearance Minimum Loaded: 135 mm
Center of Wheelbase: 140 mm
Right Angle Stack add Load Length and Clearance: 4141 mm
Drawbar Height: 300 mm
Driver’s Cab: Open

MAST

Number of Mast: 3 (Three Stage Mast)
Mast Lift, Forward/Backward (Tilt): 6°/12°
Fork Carriage Width: 1100 mm
Mast Minimum Overall Height: 2108 mm
Mast Maximum Overall Height: 4273 mm
Free Lift: 964 mm
Fork Arms Dimensions (T x W x H): 45 × 125 x 1370 mm
Max Fork Height: 4500 mm
Working Aisle Width with Pallet 1000 x 1200 Crossways: 4144 mm

STANDARD EQUIP

Fire Extiguisher
Reverse Buzzle
Strobe Light
Reflective Tapes
