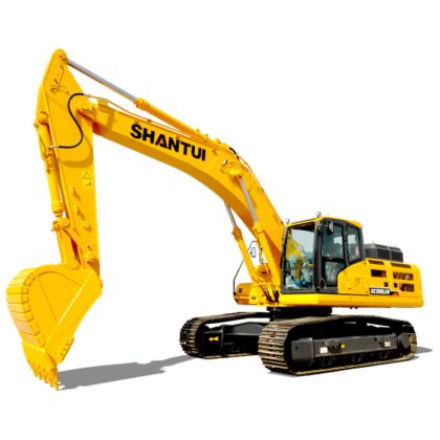

SHANTUI SE305LCW

Model: Weichai WP7
Type: right pressure common rail, turbocharged
No. of cylinder: 6
Emission Regulation: Tier 3 / Stage lll
Power output: 199kW/2000rpm

Type: Variable piston pump
Max. discharge flow: 285×2L/min

Boom: 6200 mm
Arm: 2812 mm

Digging Force
Bucket digging force: 210kN
Arm digging force: 155kN

Bucket
Type: Backhoe bucket
Bucket capacity: 1.4~1.6(1.5)m3
Bucket width: 1450mm

Travel System
Type: Axial variable plunger motor
Support roller quantities: 9×2
Carrier roller quantities: 2×2
Travel shoes: 48×2
Travel speed: 3.3~5.5km/h
Drawbar pulling force: 267kN
Grade ability: 70% (35°)

Swing System
Swing motor type: Swash plate plunger motor
Swing speed: 0-10r/min
Brake type: Pressure release, mechanical braking

Refilling Capabilities & Lubrications
Fuel tank: 620L
Cooling system: 35L
Engine oil: 24L
Hydraulic oil tank: 300L
System Capacity: 420L

Perating Weight and Ground Pressure
Shoe width: 600mm
Ground pressure: 60kPa
Operating weight: 31500kg
